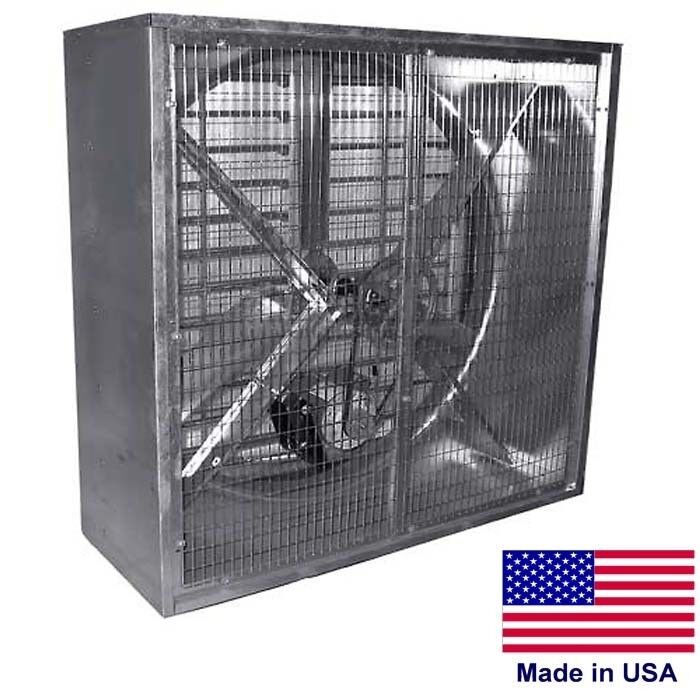

36" Wall Exhaust Fan - 10,100 CFM - 120/230V - 1/2 HP - Direct Drive - Galv Stl

36" Wall Exhaust Fan - 10,100 CFM - 120/230V - 1/2 HP - Direct Drive - Galv Stl

Regular price $1,978.05
Regular price Sale price $1,978.05
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTT9F968688

Condition: New

Description: 36" Wall Mount Exhaust Fan - 10,100 CFM - 1/2 HP - Direct Drive - Galvanized Steel

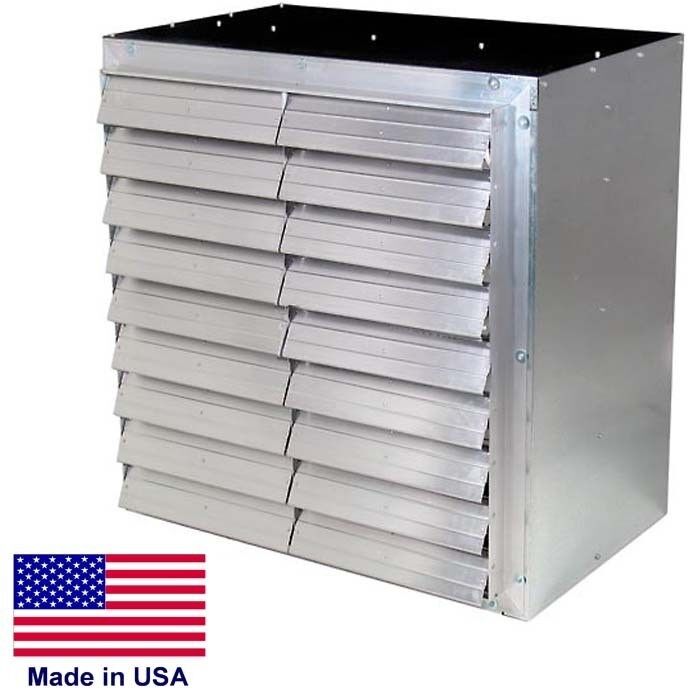

Features: External aluminum shutters - Tie bars - 18 gauge steel housing - Hot dipped after welding - Galvanized 1" x 2" x 12 gauge removable wire mesh guards - Poly guard clips reduce vibration - Totally enclosed motor - Thermal overload protection - Galvanized x-frame motor mount provides a quiet operation - 3 Blades - Made in the USA

This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:

Voltages: 240V 1 Phase, 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.

Flow Ranges: 10,100 CFM to 20,900 CFM



Description & Specification:

  • FAN DIAMETER (in): 36

  • BLADE QUANTITY: 3

  • BLADE TYPE: Galvanized

  • CFM: 10,100

  • MATERIAL: Galvanized Steel

  • DRIVE SYSTEM: Direct Drive

  • MOTOR TYPE: Totally Enclosed Sealed Ball Bearings

  • HP: 1/2

  • VOLTS: 115 / 230

  • PHASE: 1

  • AMPS: 7.0/3.5

  • RPM: 825

  • DIMENSIONS (L x W x H): 41" x 14.5" x 41"

  • APPROVALS: UL and ULC Listed

  • EXTENDED WARRANTY: 2 Years
