Pacific Tundra

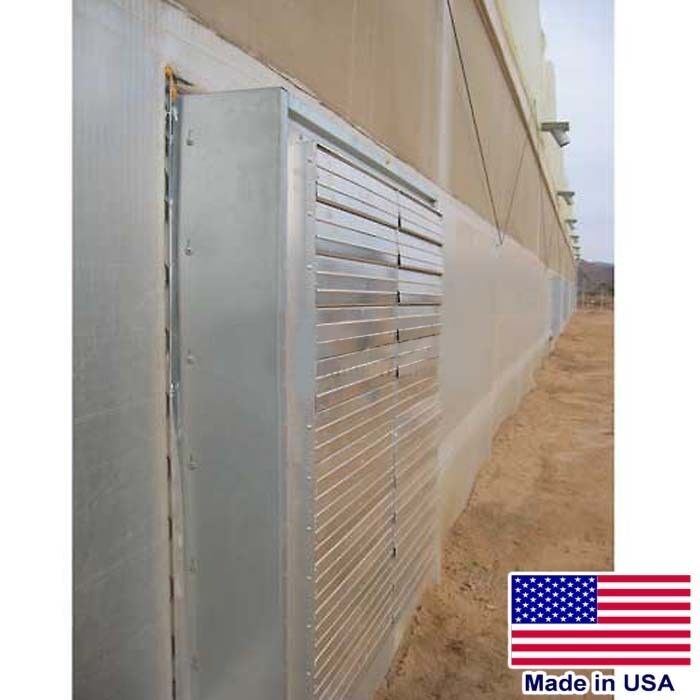

36" Wall Exhaust Fan - 9000 CFM - 115/230 V - 1/2 HP - Belt Driven - Shutter
36" Wall Exhaust Fan - 9000 CFM - 115/230 V - 1/2 HP - Belt Driven - Shutter
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTVF36GG
Condition: New
Description: 36" Wall Exhaust Fan - 9000 CFM - 115/230 V - 1/2 HP - Belt Driven - Shutter
Features: External aluminum shutters - Tie bars - 18 gauge steel housing - Hot dipped after welding - Galvanized 1" x 2" x 12 gauge removable wire mesh guards - Poly guard clips reduce vibration - Totally enclosed motor - Thermal overload protection - Galvanized x-frame motor mount provides a quiet operation - 3 Blades - Made in the USA.
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 240V 1 Phase, 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.
Flow Ranges: 10,100 CFM to 20,900 CFM
We manufacture and offer a wide range of exhaust fans and configurations - please inquire
Description & Specification:
FAN DIAMETER (in): 36
BLADE QUANTITY: 4
BLADE TYPE: Galvanized
CFM: 9,000
MATERIAL: Galvanized Steel
DRIVE SYSTEM: Belt Driven
MOTOR TYPE: Totally Enclosed
HP: 1/2
VOLTS: 115/230
PHASE: 1
AMPS: 4.8/2.4
RPM: 527
Please Note: This item is built to order - Please allow 1 to 2 weeks for manufacturing
Optional: Galvanized Rain/Weather Hood - Please Inquire
ROUGH OPENING (in): 41" x 41"
DIMENSIONS (L x W x H): 40" x 23" x 40"
EXTENDED WARRANTY: 2 Years
MADE IN THE USA
