Pacific Tundra
4" Submersible Sewage Shredder Pump - 320 GPM - 460 Volts - 3 Phase - 48 ft Head
4" Submersible Sewage Shredder Pump - 320 GPM - 460 Volts - 3 Phase - 48 ft Head
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT362
Condition: New
Description: 4" Submersible Sewage Cutter Pump - 320 GPM - 460 Volts - 3 Phase - 48 ft Head - Cast Iron
Description & Specification:
Type: Sewage and Shredder Pump
Outlet Size (in): 4"

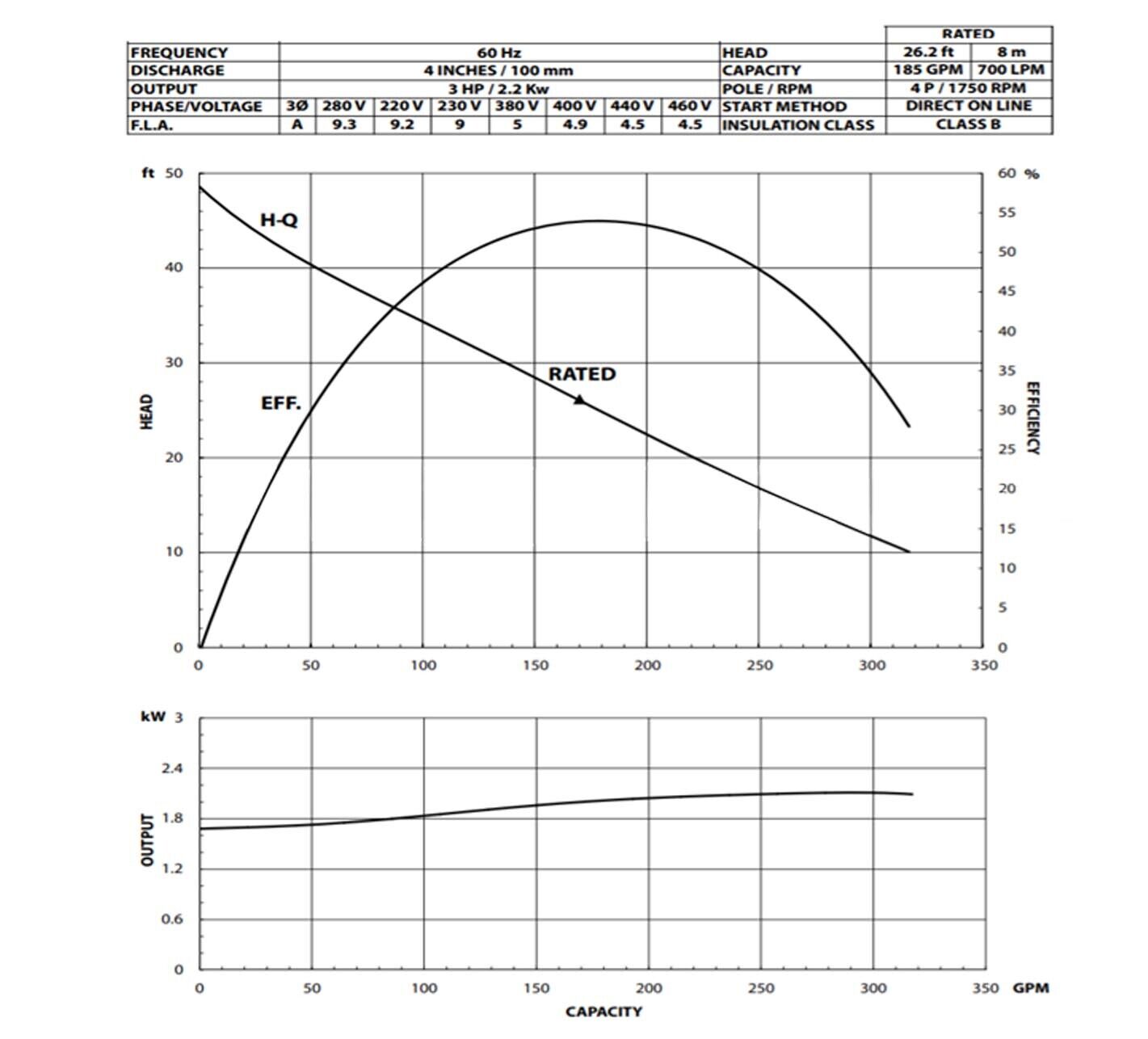

Max GPM (Reference Curve Chart in Photos): 320
Maximum Total Head (ft): 48
Power Type: Electric
Volts: 460
Phase: 3
HP: 3
Hertz: 60
Amps: 4.5
RPM: 1,750
Poles: 4
Cable Length (ft): 33
Protection: Thermal and overload
Handles Solids: Yes
Self-Priming: Submersible
Motor Casing: Cast Iron
Oil Chamber: Cast Iron
Housing Material: Cast Iron
Volute Material: Cast Iron
Impeller Type: Semi-open
Impeller Material: Carbide Tipped
Gasket Material: Buna N
O Ring Material: Buna N
Port Type: Flange - 125 lbs
Fluid Porting Direction: Horizontal
Submergence Minimum (in): 6" Pump Height
Submergence Maximum (ft): 60 ft from surface of water
Optional: Submersible Slide Rail System - NOT INCLUDED - Please Inquire
Optional: Pump Control Box - Single Control with Floats - NOT INCLUDED - Please Inquire
Optional: Pump Control Box - Dual Control with Floats - NOT INCLUDED - Please Inquire
Dimensions: 25" H x 14" W
Ship Weight (lbs): 205
Product Weight (lbs): 165
