4" Submersible Sewage Shredder Pump - 575 GPM - 230 Volts - 3 Phase - 60 ft Head

Description & Specification:

Type: Sewage and Shredder Pump

Outlet Size (in): 4"

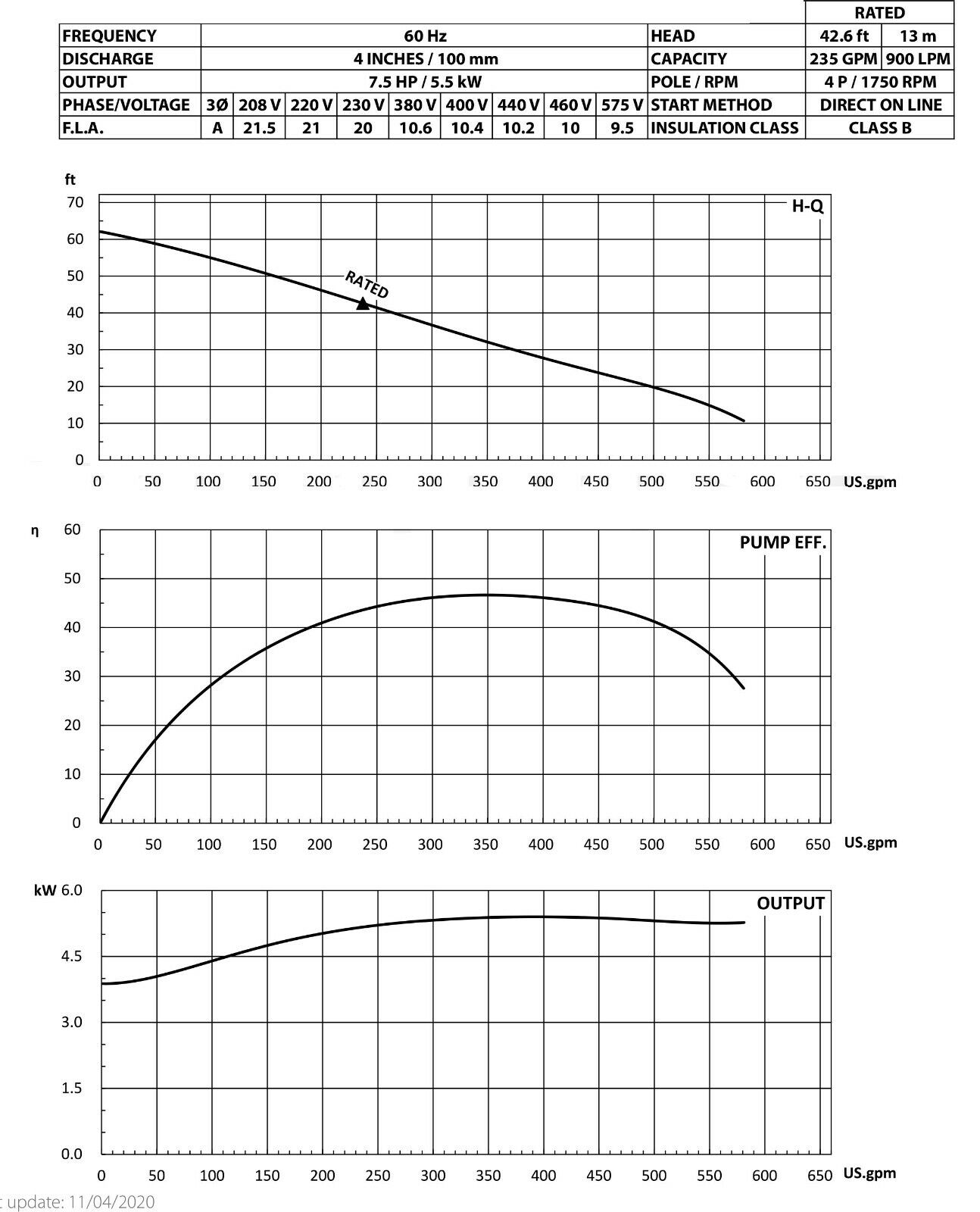

Max GPM (Reference Curve Chart in Photos): 575

Maximum Total Head (ft): 60

Power Type: Electric

Volts: 230

Phase: 3

HP: 7.5

Hertz: 60

Amps: 20

RPM: 1,750

Poles: 4

Protection: Thermal and overload

Handles Solids: Yes

Self-Priming: Submersible

Motor Casing: Cast Iron

Oil Chamber: Cast Iron

Housing Material: Cast Iron

Volute Material: Cast Iron

Impeller Type: Semi-open

Impeller Material: Carbide Tipped

Gasket Material: Buna N

O Ring Material: Buna N

Port Type: Flange - 125 lbs

Fluid Porting Direction: Horizontal

Submergence Minimum (in): 6" Pump Height

Submergence Maximum (ft): 60 ft from surface of water

Maximum Temperature: Up to 104 F

Optional: Submersible Slide Rail System - NOT INCLUDED - Please Inquire

Optional: Pump Control Box - Single Control with Floats - NOT INCLUDED - Please Inquire

Optional: Pump Control Box - Dual Control with Floats - NOT INCLUDED - Please Inquire

Dimensions: 36" H x 28" W

Ship Weight (lbs): 327

Product Weight (lbs): 299
