Pacific Tundra
42" Exhaust Fan - Belt Driven - 14,800 CFM - 120 Volts - 3/4 HP - 1 Ph - 11 Amps
42" Exhaust Fan - Belt Driven - 14,800 CFM - 120 Volts - 3/4 HP - 1 Ph - 11 Amps
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWB248453
Condition: New
Description: 42" Exhaust Fan - Belt Driven - 14,800 CFM - 120 Volts - 3/4 HP - 1 Ph - 11 Amps

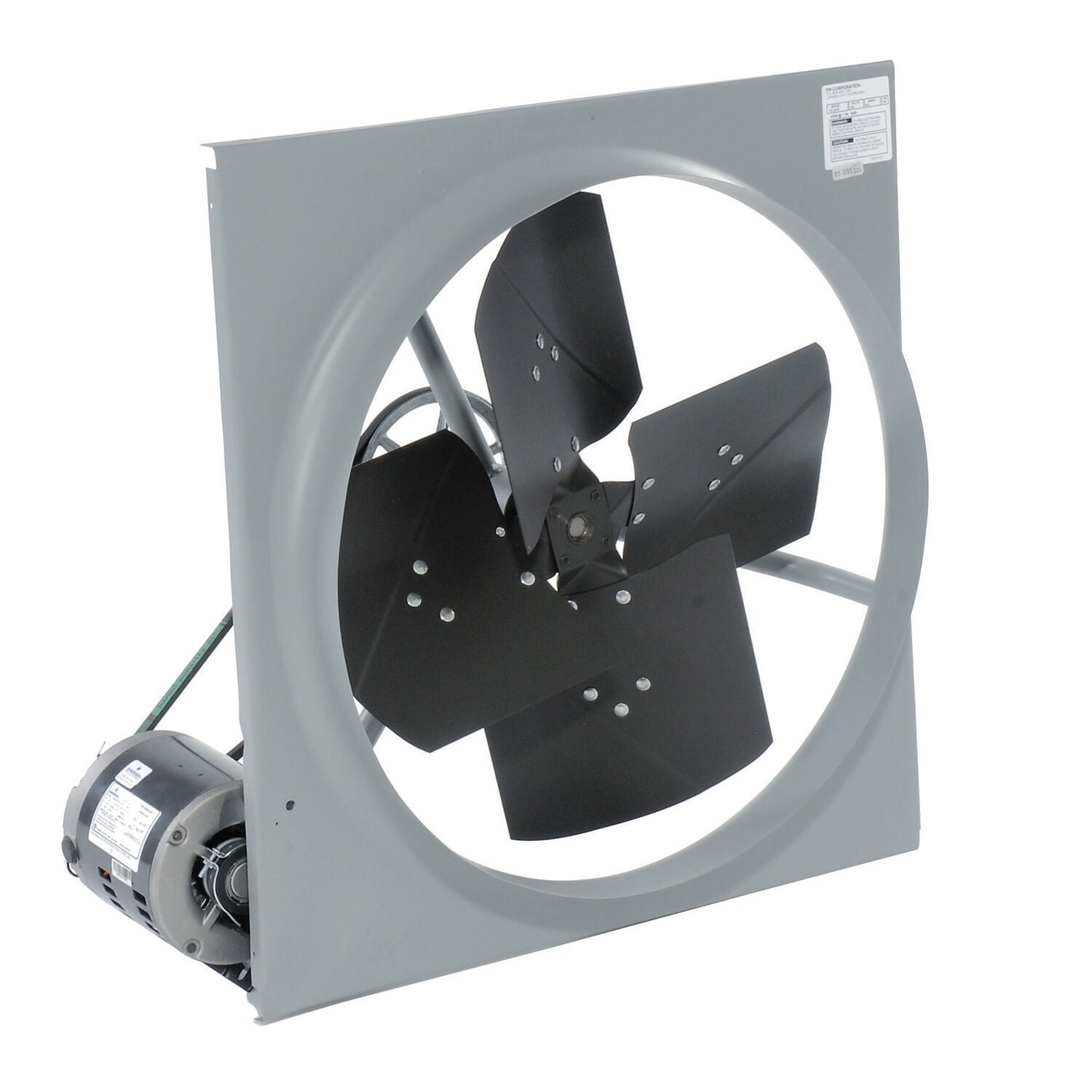

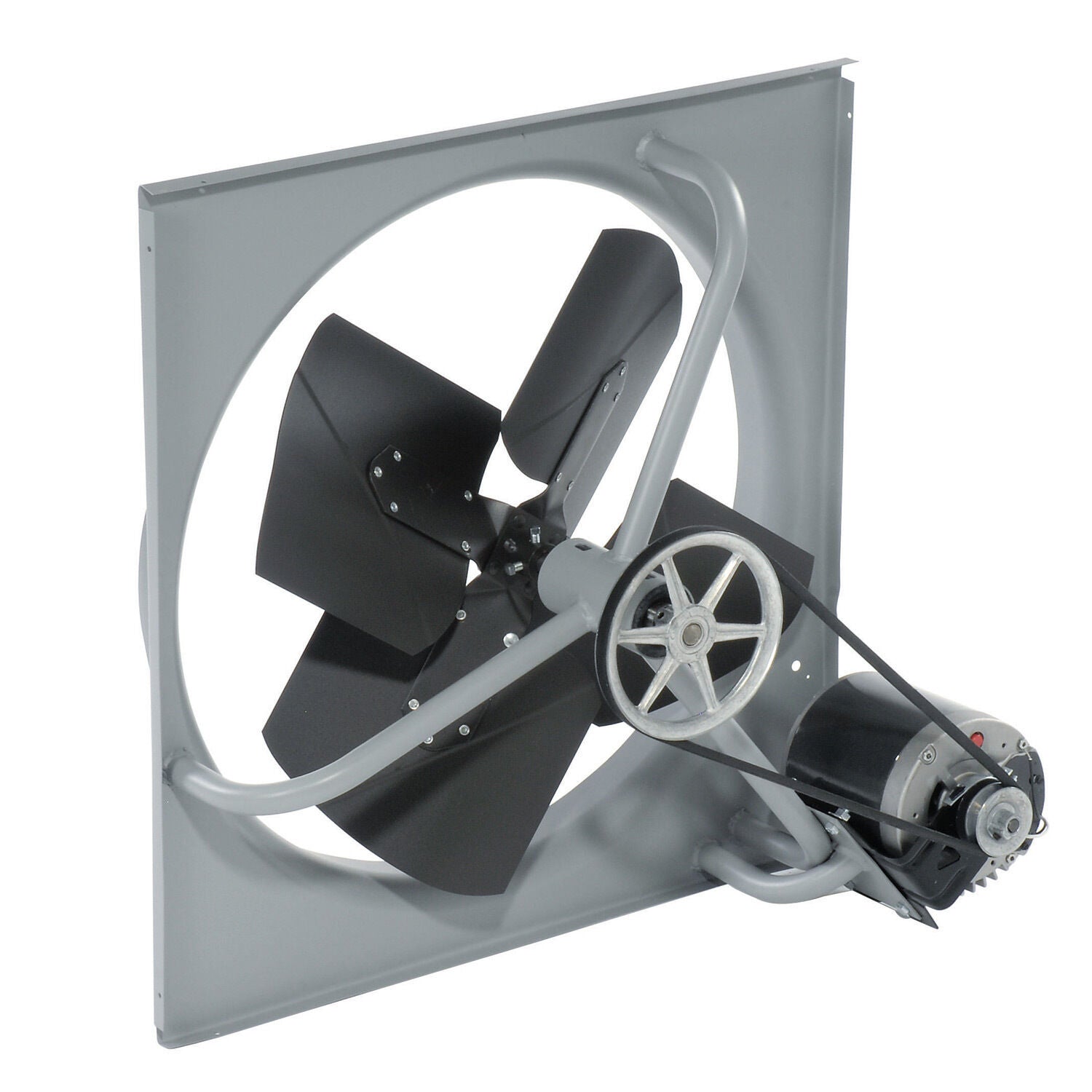

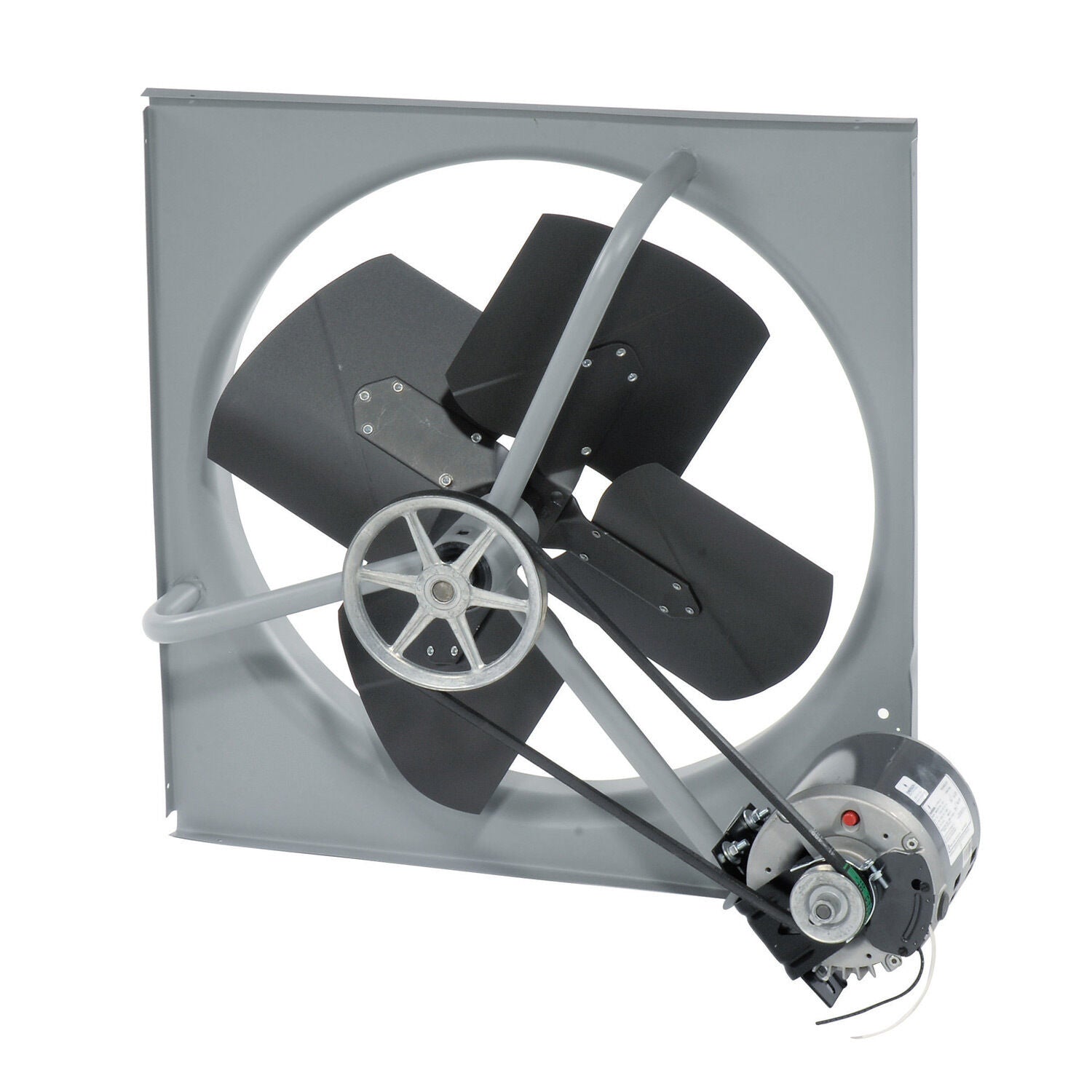

Features: 42" Exhaust Fan - 4 Steel Blades - 120 Volts - Belt Driven - Powder coat finish - 14,800 CFM - 3/4 HP - Single Phase - Commercial duty.
This series of commercial exhaust fan is available in a variety of specifications.
Please contact us for assistance finding the right fan for your application.
PLEASE NOTE: This unit is built to order and will require 5 to
8 business days for manufacturing and delivery.
Description & Specification:
FAN DIAMETER (inches): 42"
BLADE (Quantity): 4
AMPS: 11
ASSEMBLY: Assembled
CFM HIGH: 14,800
COLOR: Gray Powder Coat
CONSTRUCTION: Steel Blade
DEPTH (inches): 3-1/4"
WIDTH (inches): 48"
HEIGHT (inches): 48"

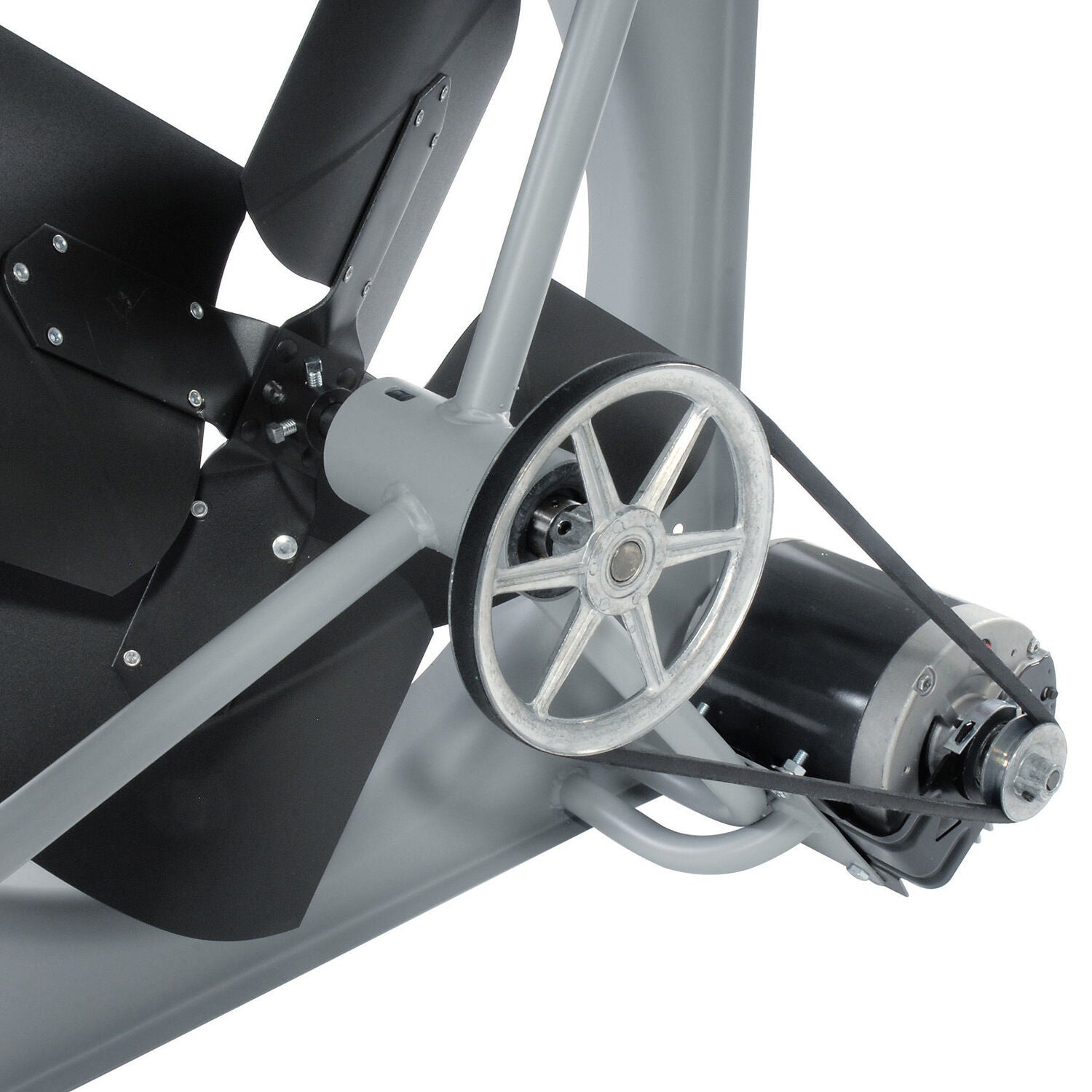

DRIVE TYPE: Belt Drive

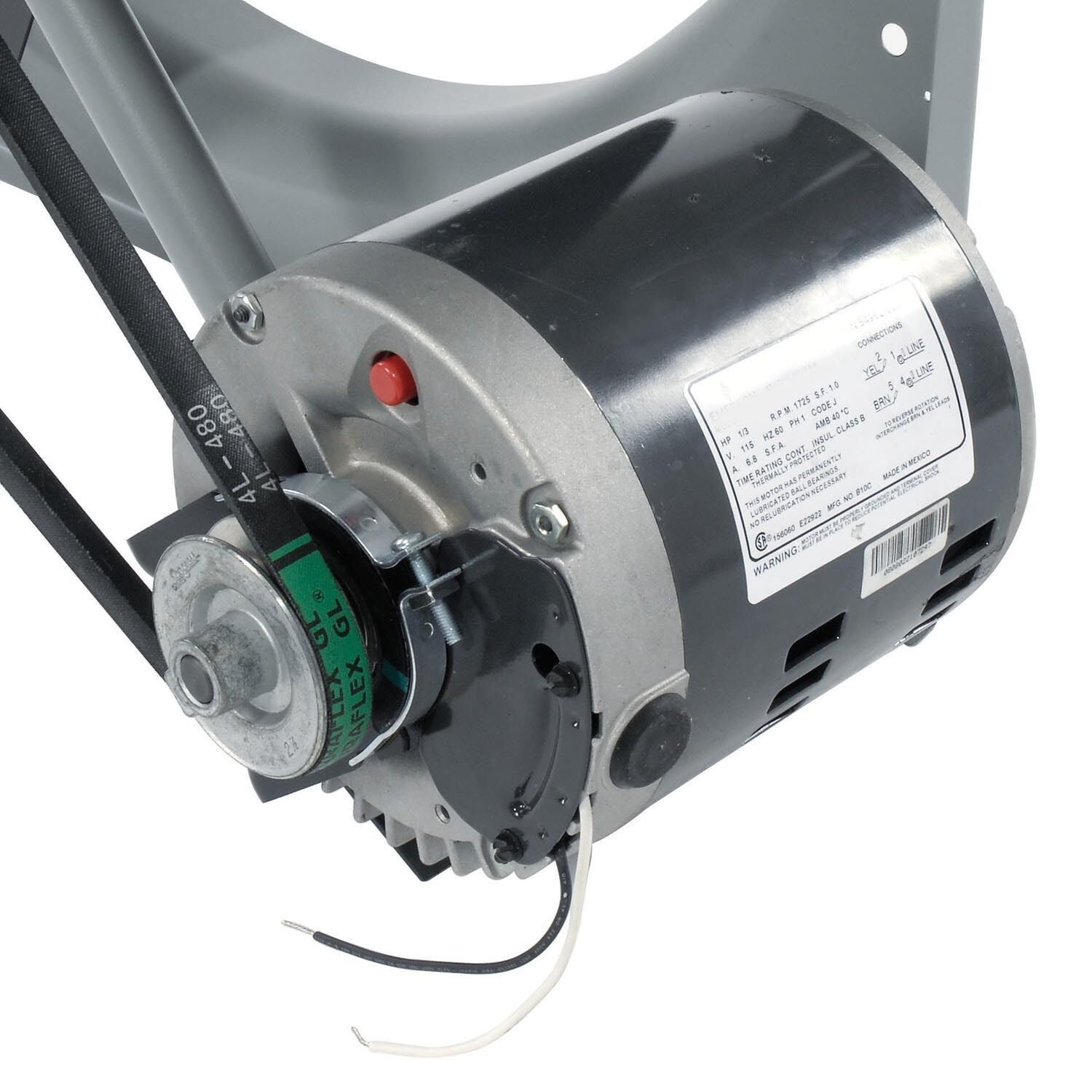

HORSEPOWER: 3/4
PHASE: 1
VOLTS: 120
CORD: No cord, junction box provided for direct wiring
DIMENSIONS (inches L x W x H): 48" x 4" x 48"
WEIGHT (LBS): 85
WARRANTY YEARS: 1
