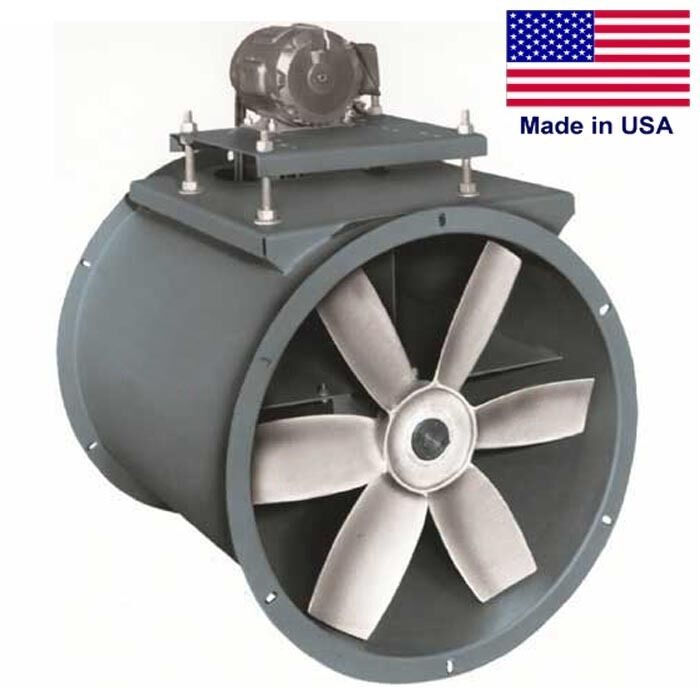

48" Exhaust Duct Fan - 31,350 CFM - Belt Drive - 5HP - 6 Blade - 3 PH - 230/460V

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTWGB1508583

Condition: New

Description: 48" Exhaust Duct Fan - 31,350 CFM - Belt Drive - 5HP - 6 Blade - 3 PH - 230/460V

This series of commercial exhaust fan is available in a variety of specifications.

Please contact us for assistance finding the right fan for your application.

PLEASE NOTE: This unit is built to order and will require 5 to 8 business days for manufacturing and delivery.

Description & Specification:

FAN SIZE INCHES: 48"

FAN TYPE: Belt Drive Duct Fan

BLADES: 6

A: 49 - 1/8

B MAX: 53 - 1/2

C: 51 - 5/8

D MAX: 2

E ALUMINUM: .375

E STEEL: 3/8

F: 42

G ALUMINUM: .190

G STEEL: 10GA

H: 60 - 3/4

J: 7/16 X 3/4

K: 12

HORSEPOWER (hp): 5

CFM @ 0" STATIC PRESSURE: 31,350

MAX AIR FLOW (@ FREE AIR): 1 - 1/4

MODIFIED MAX OPERATING TEMPERATURE: 350

MOTOR FRAME MAXIMUM: 215T

MOTOR FRAME MINIMUM: 143T

PEAK FAN POWER INPUT (BHP): 5.5

PHASE: 3

RPM: 1,750

STANDARD MAXIMUM OPERATING TEMPERATURE: 200

WEIGHT ALUM LBS: 462

WEIGHT STEEL LBS: 677

WARRANTY (Years): 1

Optional: Guards - Offers protection on intake or discharge side - Available in steel only - Please inquire

Optional: Companion Flanges - Drilled to fit the flanges of the fan; allows easy installation - Please inquire

Optional: Belt Guard - Covers motor sheave and belts outside fan housing. Steel construction - Please inquire

Optional: Motor Cover and Belt Guard - Designed to fit all belt drive duct axial fans. Covers are vented. Horizontal or vertical mounting - Please inquire

Optional: Inlet Bell - Spun inlet orifice bell may be used in place of the inlet duct in installations where no duct work precedes the fan - Please inquire

Optional: Protective Coating - For corrosive applications - Please inquire

Optional: Access Door - Hinged, quick release latches on access door allows for maintenance of internal parts. Standard position for access door of belt drive fans is at 6 o'clock when the motor is at 12. For direct drive units, standard position is at 10 o'clock - Please inquire

Optional: Vibration Isolators - Rubber-in-shear or spring type isolators - Please inquire

Optional: Mounting Feet - Bolted to the inlet and discharge flanges, mounting feet allow position of the fan on the floor, ceiling, wall, or platform. Can be used with vibration isolators - Please inquire

Optional: Shaft Seal and Slinger - These should be used when fans are placed in corrosive atmospheres which warrant protective coating and/or stainless steel shafting or hardware. Seal is not gas tight (Note: shaft seal, cover plate and neoprene slinger are standard on aluminum belt duct fans) - Please inquire
