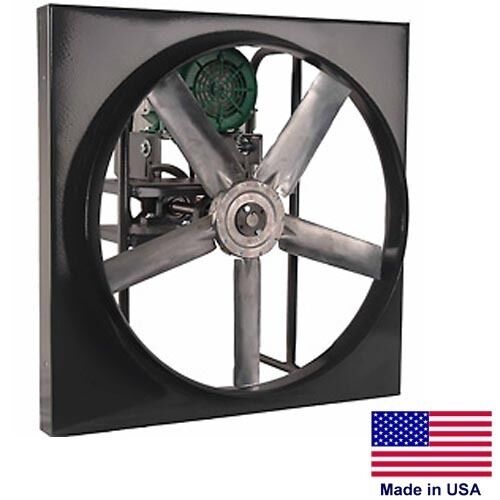

48" Exhaust Fan - 17,000 CFM - 1 HP - 230/460 V - 3 Phase - TEFC - Belt Driven

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTWBB177838

Condition: New

Description: 48" Exhaust Fan - 17,000 CFM - 1 HP - 230/460 V - 3 Phase - TEFC - Belt Driven

This series of commercial exhaust fan is available in a variety of specifications.

Please contact us for assistance finding the right fan for your application.

PLEASE NOTE: This unit is built to order and may require 14 to 21 business days for manufacturing and delivery. Please inquire for lead times.

Description & Specification:

COMMERCIAL: Yes

INDUSTRIAL: Yes

CFM HIGH: 17,000

CFM LOW: 5,000

CONSTRUCTION: Steel
DRIVE TYPE: Belt Drive
FAN DIAMETER (in): 48"

HERTZ (HZ): 60
HORSEPOWER (hp): 1

IMPELLER CONSTRUCTION: Cast Aluminum
MOTOR ENCLOSURE: Totally Enclosed
PHASE: 3
RPM HIGH: 527

VOLTAGE: 230 / 460

LENGTH (in): 54"
WIDTH (in): 25"

HEIGHT (in): 54"

WEIGHT (lbs): 235

OPTIONAL: Epoxy or polyurethane coatings - PLEASE INQUIRE
OPTIONAL: Gravity shutters - PLEASE INQUIRE
OPTIONAL: Motor operated shutters - PLEASE INQUIRE
OPTIONAL: Bird screen for shutters - PLEASE INQUIRE
OPTIONAL: 304 stainless steel construction - PLEASE INQUIRE
OPTIONAL: 316 stainless steel construction - PLEASE INQUIRE
OPTIONAL: Motor side guard - PLEASE INQUIRE
OPTIONAL: Propeller side guard - PLEASE INQUIRE
OPTIONAL: Mounting boot – interior or exterior mount - PLEASE INQUIRE
OPTIONAL: Special duty motors available - PLEASE INQUIRE
OPTIONAL: Weather hood complete with bird screen - PLEASE INQUIRE
OPTIONAL: Reverse flow construction - PLEASE INQUIRE

WARRANTY: 1 Years
