Pacific Tundra

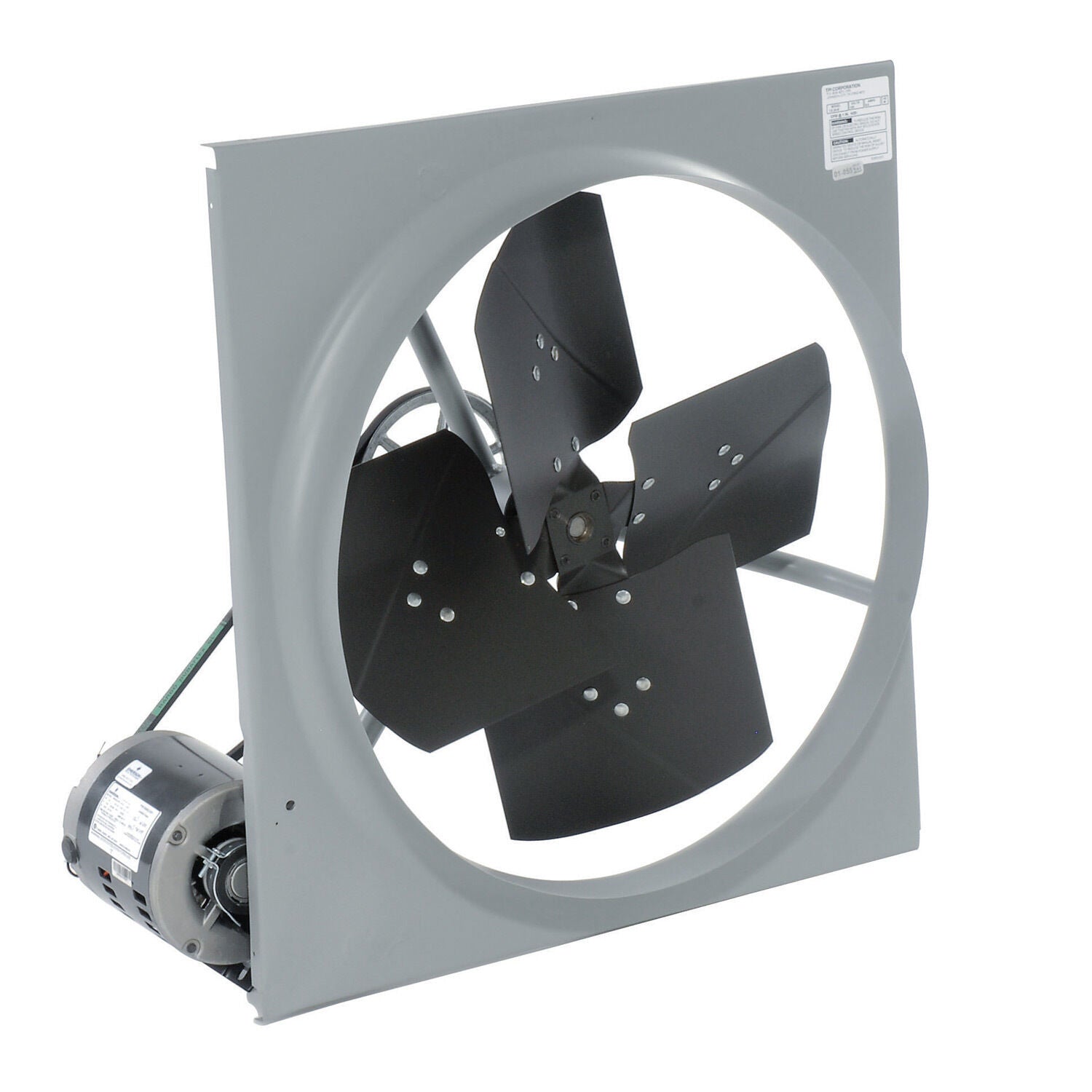

48" Exhaust Fan - 21,500 CFM - Belt Driven - 120 Volts - 1 HP - 1 Ph - 15 Amps
48" Exhaust Fan - 21,500 CFM - Belt Driven - 120 Volts - 1 HP - 1 Ph - 15 Amps
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWB653213
Condition: New
Description: 48" Exhaust Fan - 21,500 CFM - Belt Driven - 120 Volts - 1 HP - 1 Ph - 15 Amps

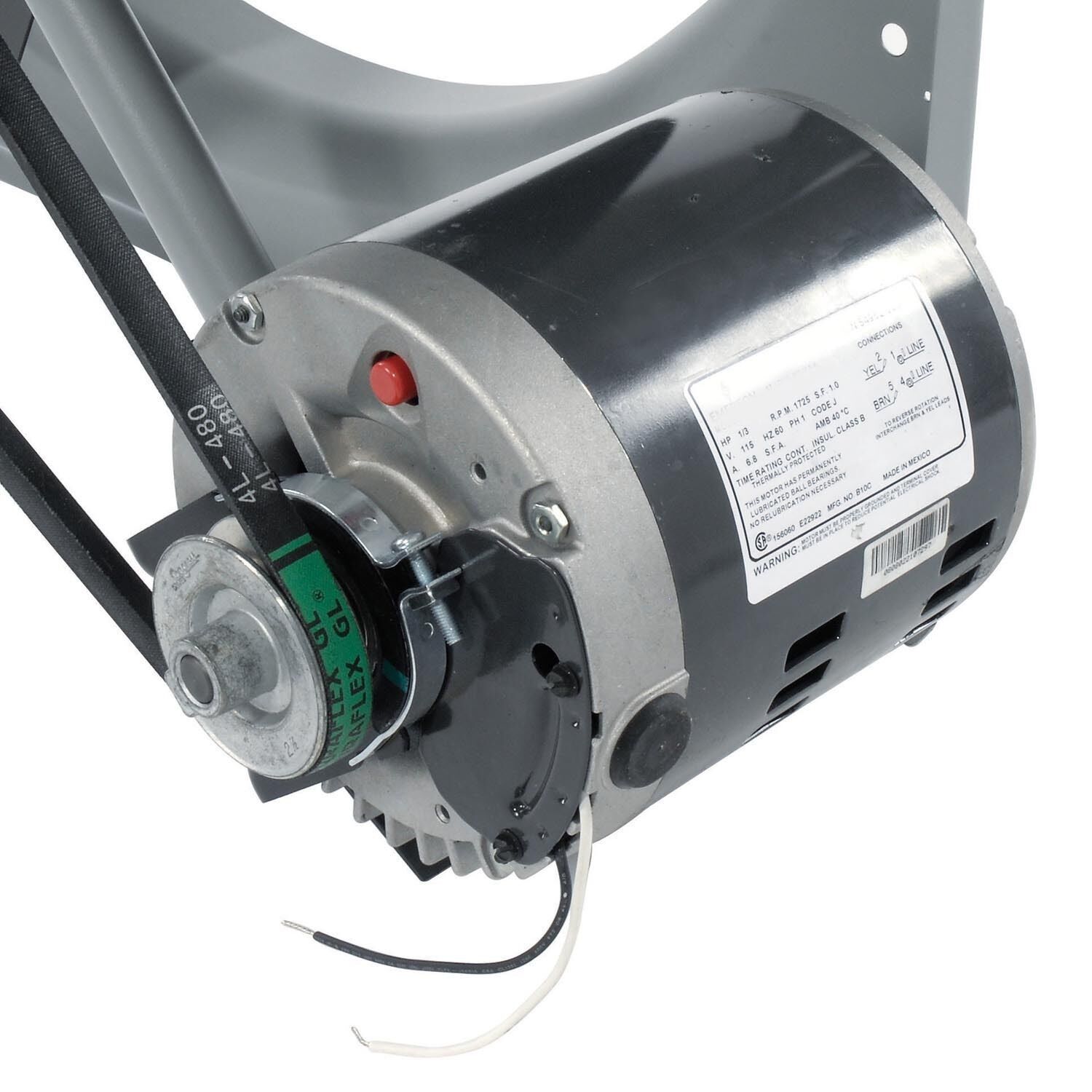

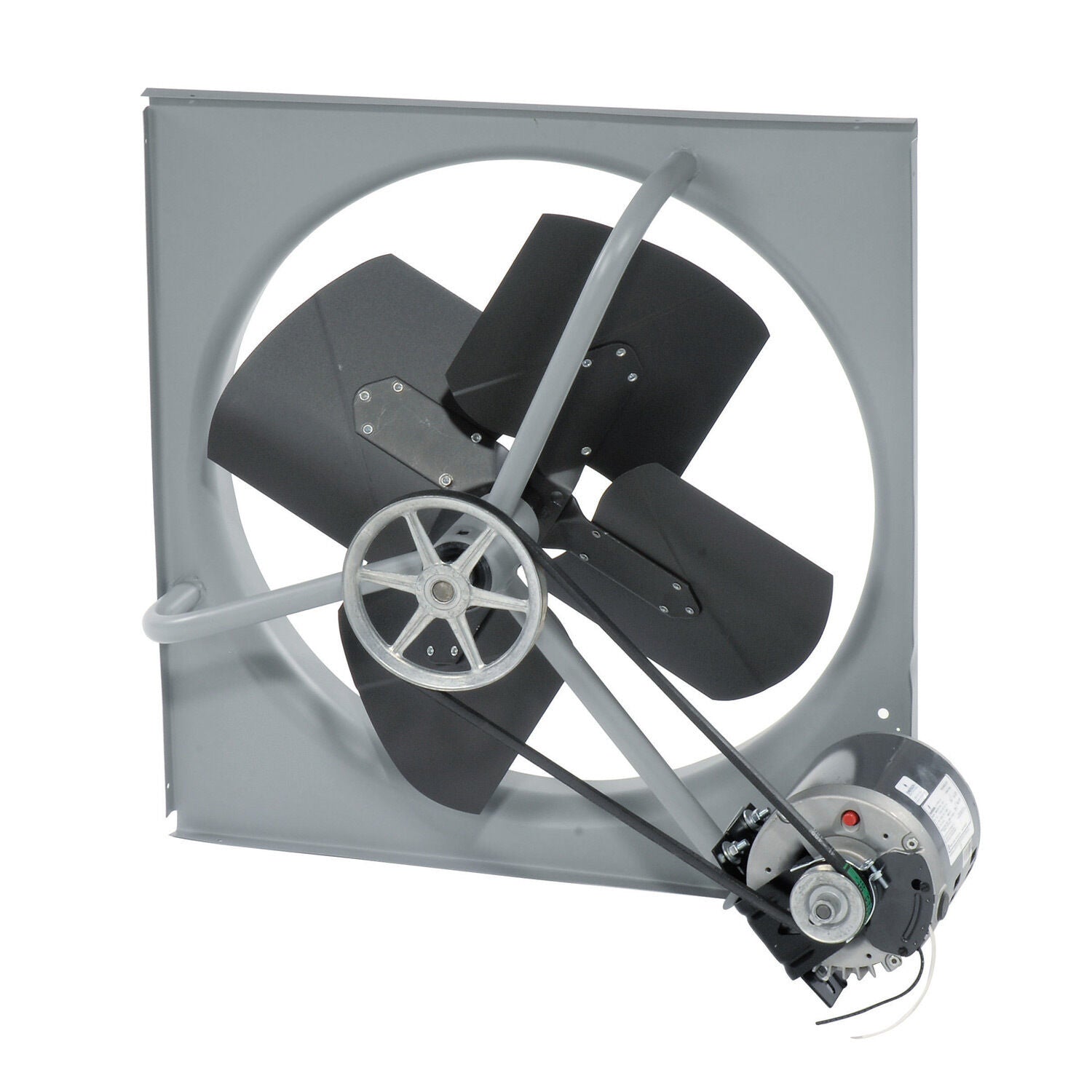

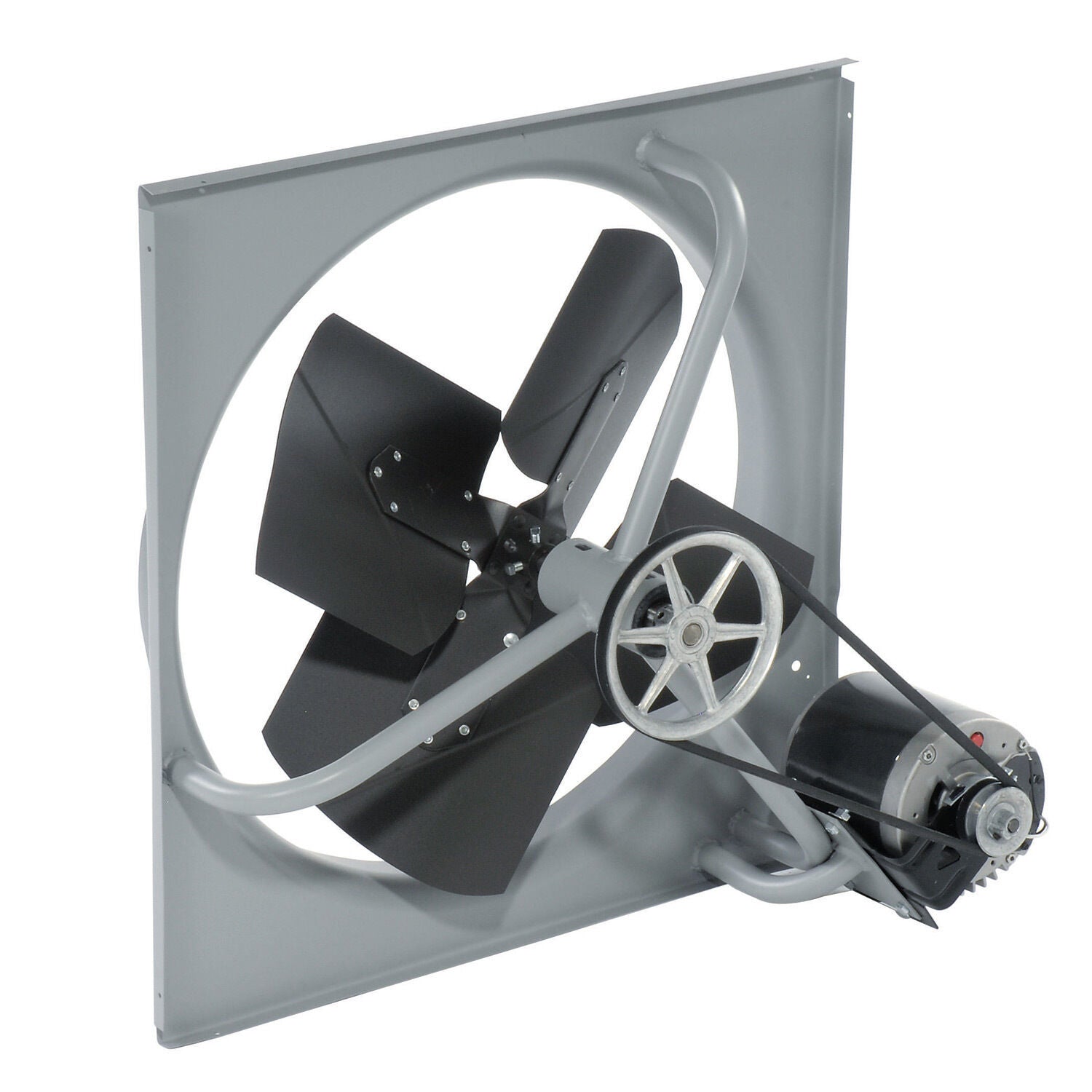

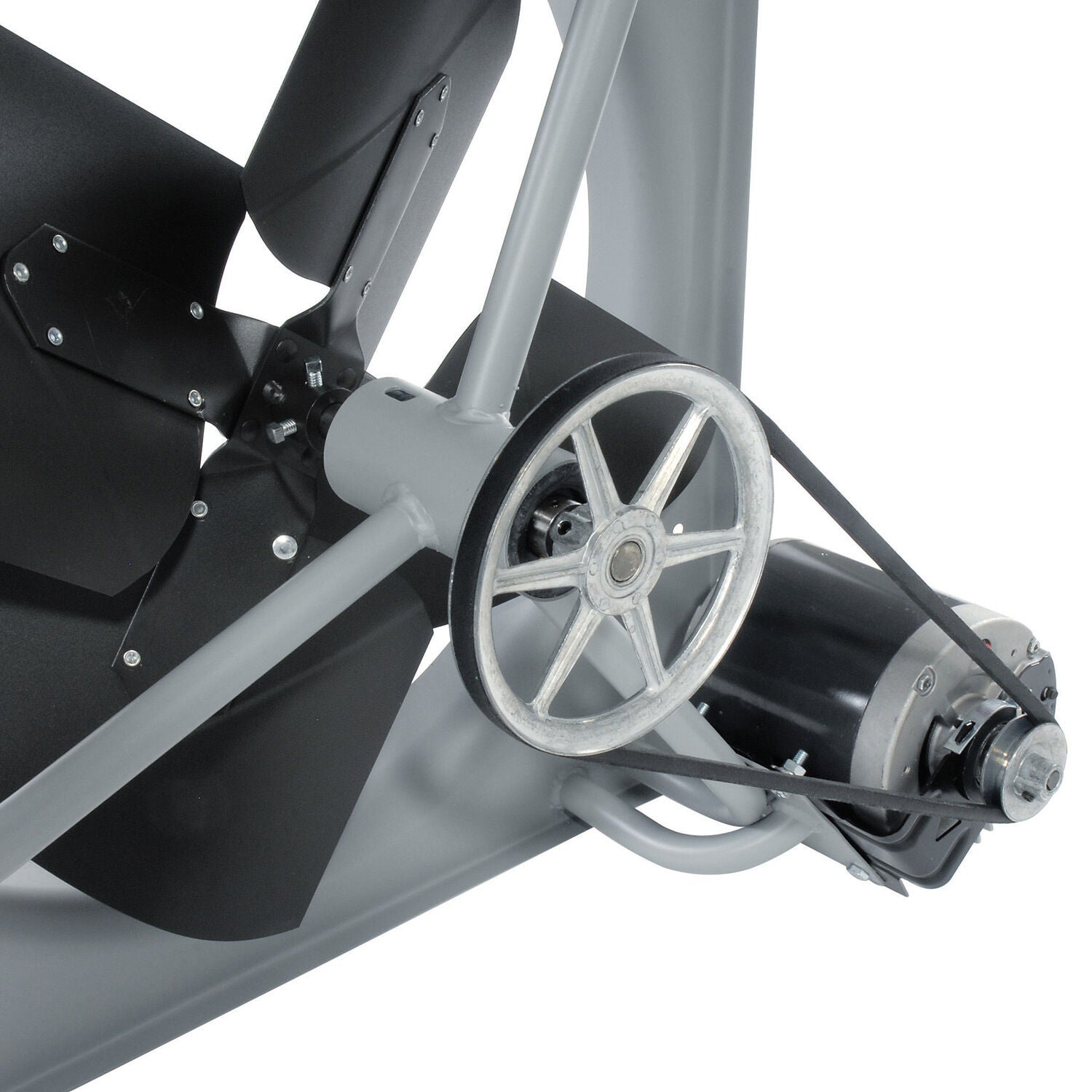

Features: Light weight - Belt Driven - Vertical or Horizontal mounting options - Adjustable motor mount and variable motor sheave allows for easy RPM/CFM adjustments - Arrives partially assembled - Motor and drive pack are shipped loose - Ideal for warehouses, factories, garages, greenhouses, barns, laundry and boiler rooms.
THIS LINE OF COMMERCIAL EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:
Sizes range between 24" to 48"
Motors from 1/3 to 2 Hp
Single Phase or 3 Phase
CFM Ranges from 3,270 to 25,455
Please inquire Toll Free at
Please Note: These units are built to order. Please allow 5 to 8 Business Days for manufacturing and shipping
Description & Specification:
FAN DIAMETER (inches): 48"
BLADE (Quantity): 4
AMPS: 15
ASSEMBLY: Assembled
CFM HIGH: 21,500
COLOR: Gray Powder Coat
CONSTRUCTION: Steel Blade
DEPTH (inches): 4"
WIDTH (inches): 54"
HEIGHT (inches): 54"
DRIVE TYPE: Belt Drive
HORSEPOWER: 1
PHASE: 1
VOLTS: 120
CORD: No cord, junction box provided for direct wiring
DIMENSIONS (inches L x W x H): 54" x 54" x 4"
WEIGHT (LBS): 99
WARRANTY YEARS: 1
