Pacific Tundra

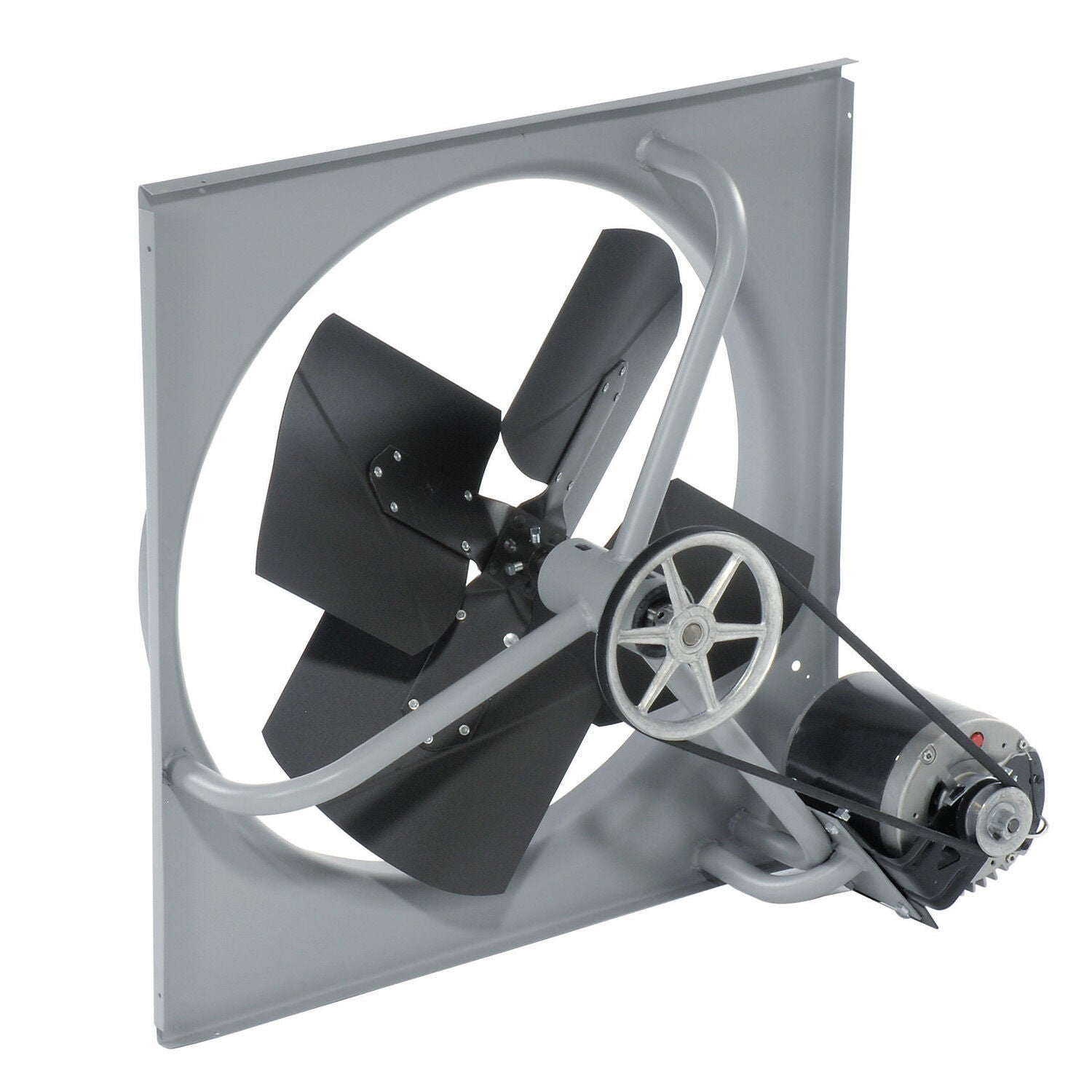

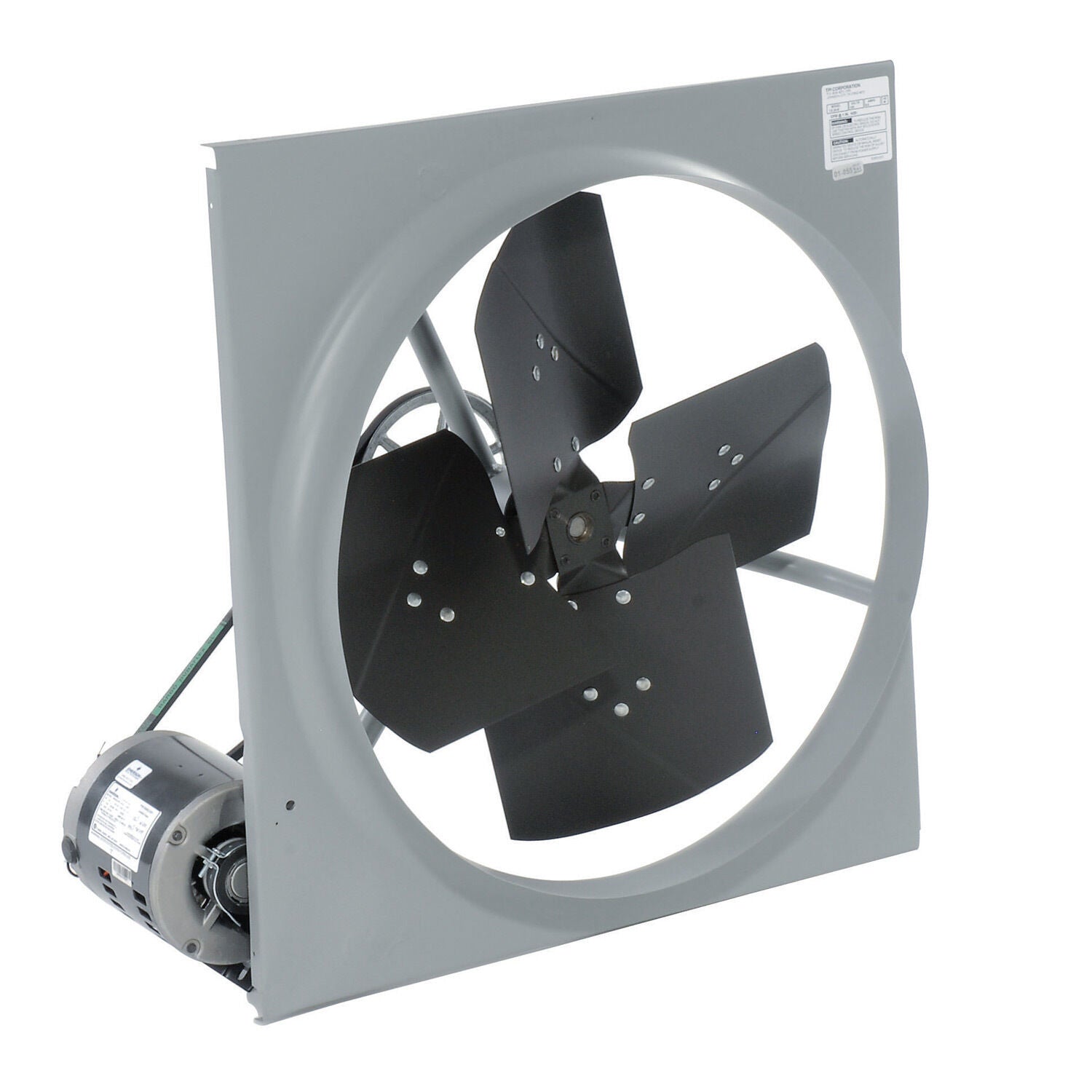

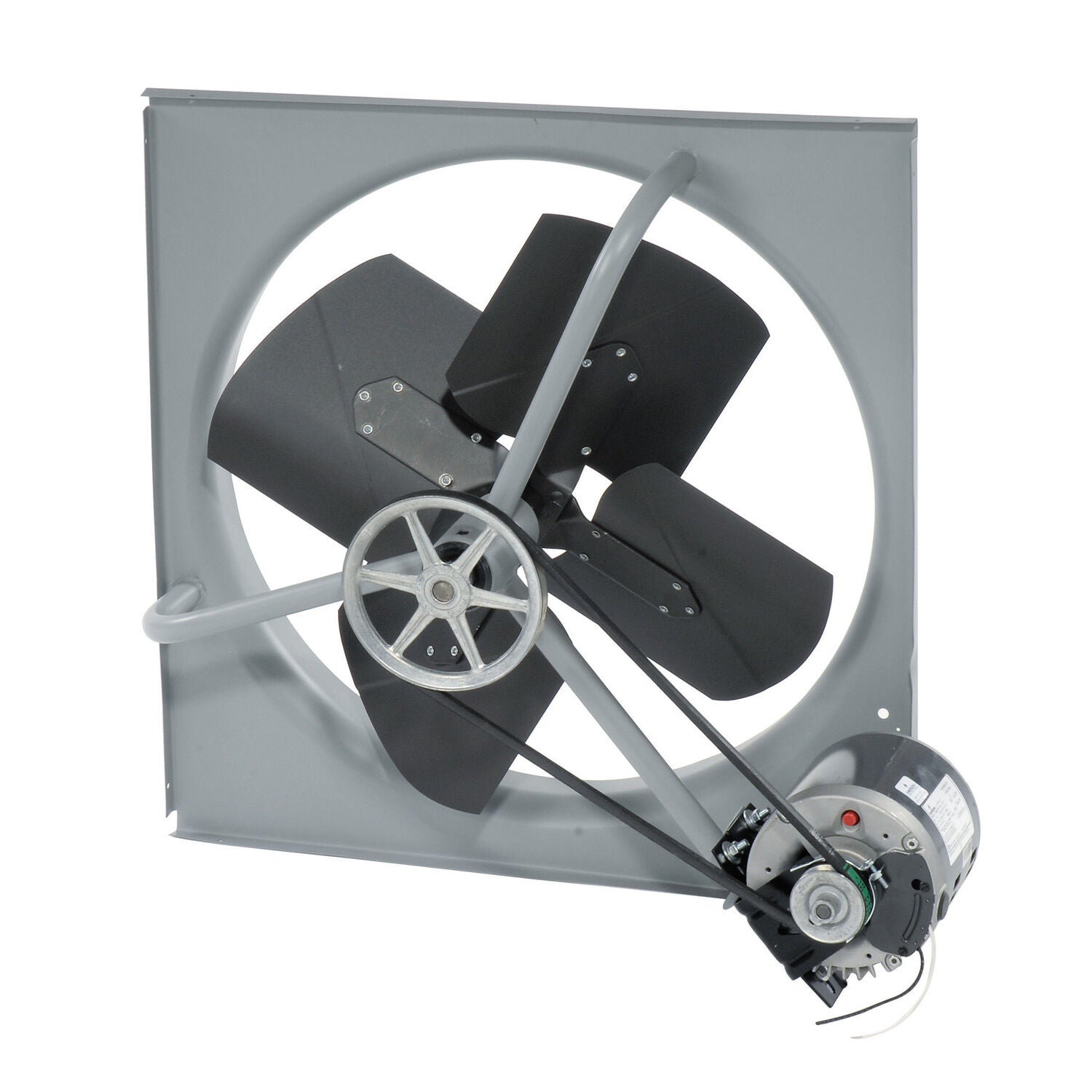

48" Exhaust Fan - Belt Driven - 230/460 V - 1 HP - 21,500 CFM - 3 Ph - 3.8 Amps

48" Exhaust Fan - Belt Driven - 230/460 V - 1 HP - 21,500 CFM - 3 Ph - 3.8 Amps

Regular price $4,136.62
Regular price Sale price $4,136.62
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTWB653216

Condition: New

Description: 48" Exhaust Fan - Belt Driven - 230/460 V - 1 HP - 21,500 CFM - 3 Ph - 3.8 Amps

Features: 48" Exhaust Fan - 4 Steel Blades - 230/460 Volts - Belt Driven - Powder coat finish - 21,500 CFM - 1 HP - Three Phase - Commercial duty.

This series of commercial exhaust fan is available in a variety of specifications.

Please contact us for assistance finding the right fan for your application.


PLEASE NOTE:
 This unit is built to order and will require 5 to 8 business days for manufacturing and delivery.



Description & Specification:

FAN DIAMETER (in): 48"

BLADES: 4

AMPS: 3.8

ASSEMBLY: Assembled

CFM HIGH: 21,500

COLOR: Gray Powder Coat

CONSTRUCTION: Steel Blade

DEPTH (in): 4"

WIDTH (in): 54"

HEIGHT (in): 54"

DRIVE TYPE: Belt Drive

HORSEPOWER: 1

PHASE: 3

VOLTS: 230/460

CORD: No cord, junction box provided for direct wiring

DIMENSIONS (L x W x H): 54" x 54" x 4"

WEIGHT (LBS): 99

WARRANTY YEARS: 1
