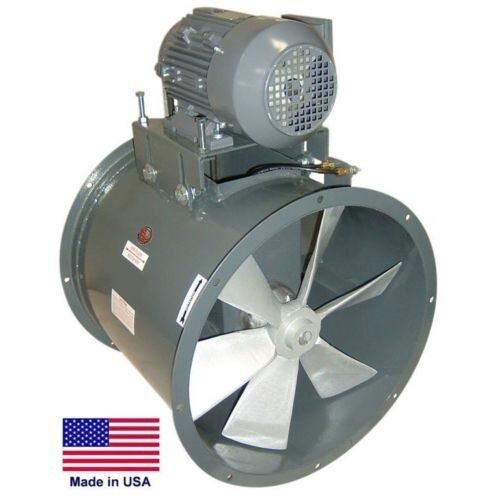

48" TUBE AXIAL DUCT FAN - 33,000 CFM - 5 Hp - 1 or 3 Ph - 115/230 & 230/460 Volt

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTBPR485CS

Condition: New

Description: 48" TUBE AXIAL DUCT FAN - 33,000 CFM - 5 Hp - 1 or 3 Ph - 115/230 & 230/460 Volt

This Series of Belt Driven Tube Axial Duct Fans is Available in the Following Configurations:

Diameters: 12" through 60"

CFM Range: 1,875 through 54,000

Motor Sizes: 1/2 Hp through 10 Hp

Voltages: 115/230V and 208-230/460V

Phases: Single and Three Phase

Drive Systems: Belt & Direct Drive

Available Options: Belt guard, combination motor cover/belt guard, companion flanges, horizontal support legs, horizontal or vertical support brackets, OSHA compliant inlet and outlet guards, inspection door, adjustable pitch motor pulley, continuous welded flanges and epoxy or urethane finishes

Questions?  Give our Customer Service Department a Call Toll Free at

Description & Specification:

·         Industrial/Commercial 48" Belt Driven Tube Axial Duct Fan

·         Our line of USA made tube axial duct fans are designed for continuous operation and recommended for use in manufacturing and assembly facilities, mills, foundries, factories and similar applications.  This line of tube axial duct fans is also available in explosion proof/hazardous location configurations for use in paint shops and chemical processing facilities, industrial parts washers, dry off ovens, kilns and furnaces up to 375ºF with the addition of our high temperature package

·         Designed for use in high moisture and contaminated airstreams.  Ideally suited for use with industrial parts washers for excell water vapor removal.  Can also be used with dry off ovens, kilns and furnaces with temperatures up to 375ºF with the addition of our high temperature package

·         Features: Non-sparking cast aluminum blades/propellers standard (carbon steel and stainless steel also available - please inquire), bearings located in a sealed watertight chamber and protected by a water slinger and shaft seal, standard construction suitable for temperatures up to 225ºF and up to 375ºF with our high temperature package, optionally available in 304 or 316 stainless steel construction for harsh or contaminated environments, adjustable motor base allows for proper belt tension promoting maximum belt life, heavy duty cast iron and turned steel pulleys, industrial grade TEFC motors are available in single or three phase and optionally in explosion proof/hazardous location

·         This series of industrial/commercial tube axial duct fans is available in 12", 15", 18", 24", 27", 30", 34", 36", 42", 48" and 60" configurations

·         Fan Type: Tube Axial Duct Fan - Industrial/Commercial

·         Blade Diameter: 48"

·         Drive Type: Belt

·         Motor: 5 Hp - TEFC - 1725 RPM

·         Voltage: 115/230V or 208-230/460V (please specify voltage at the time of order)

·         Phase: 1 or 3 (please specify phase at the time of order)

·         Hertz: 60

·         Speeds: 1

·         CFM: 33,000

·         Fan RPM: 800

·         Note: a power cord is not included.  This is a hardwire fan.  We recommend you use a licensed and insured electrician to run power to this fan

·         Note: Please provide your voltage and phase requirement at time of purchase

·         Optional Item: Model PTBG - Belt Guard (please inquire Toll Free at )

·         Optional Item: Model PTMCBG - Combination Motor Cover/Belt Guard (please inquire Toll Free at )

·         Optional Item: Model PTCF - Companion Flange (please inquire Toll Free at )

·         Optional Item: Model PTHSL - Horizontal Support Legs (please inquire Toll Free at )

·         Optional Item: Model PTHSB - Horizontal Support Bracket (please inquire Toll Free at )

·         Optional Item: Model PTVSB - Vertical Support Bracket (please inquire Toll Free at )

·         Optional Item: Model PTAIG - Air Inlet Guard - OSHA Compliant (please inquire Toll Free at )

·         Optional Item: Model PTAOG - Air Outlet Guard OSHA Compliant (please inquire Toll Free at )

·         Optional Item: Model PTIMD - Inspection & Maintenance Door (please inquire Toll Free at )

·         Optional Item: Model PTEC - Epoxy Coating (please inquire Toll Free at )

·         Optional Item: Model PTUC - Urethane Coating (please inquire Toll Free at )

·         Optional Item: Model PTAPMP - Adjustable Pitch Motor Pulley (please inquire Toll Free at )

·         Optional Item: Model PTCWF - Continuously Welded Flanges (please inquire Toll Free at )

·         2 Year Warranty (Includes Parts & Labor)

·         Made in the U.S.A.
