Pacific Tundra

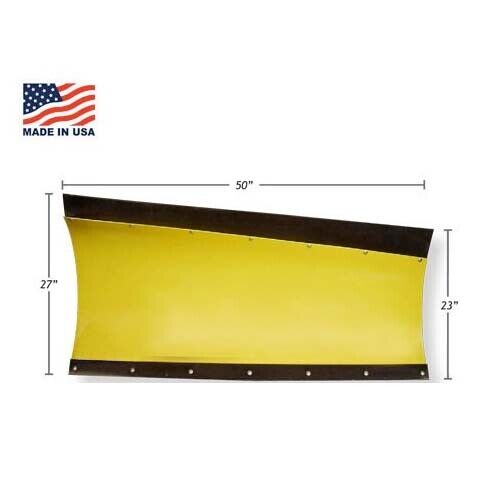

50" ATV SNOW PLOW for Kawasaki Brute Force - Front Mount - Quick Connect Bracket

50" ATV SNOW PLOW for Kawasaki Brute Force - Front Mount - Quick Connect Bracket

Regular price $1,546.72
Regular price Sale price $1,546.72
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT903

Condition: New

Description: 50" ATV SNOW PLOW for Kawasaki Brute Force - Front Mount - Quick Connect Bracket

Features: Easy installation – Installs within 30 minutes - Five position adjustable blade angle with up to 26.5 degrees of angle - Blade pitch stops allow for maximum blade adjustment - Solid 5/8" diameter blade positioning pin - 12 Gauge Steel Blade - Operated by a Winch Lift ONLY (NOT INCLUDED)

PLEASE NOTE: We cannot begin manufacturing an order until we receive a message with your ATVs YEAR and MODEL



Description & Specification:

Mounts to the front of the ATV frame, eliminating the need for an under frame installation

Quick Connect Bracket System allows the ATV to be connected to the plow in less than 30 seconds

Simply roll the ATV onto the push tube, lock it, and done

Application: Snow Plow

Plow Material: 12 Gauge Steel

Optional: Available in Black - Please Inquire

Mount Position: Front

Lift Height (in): 28"

Push Tube Shape: V Shape - Prevents blade swaying

Push Tube Blade Swivel Pivot Mount (in): 5/8"

Push Tube Swivel Material: 3/8" Material and 1-3/4" Angle Iron

Maximum Push Tube Swivel to Blade (in): 20"

Push Tube Blade Stops: Yes - Build in

Optional: Push Tube for Tracks - 3" taller and 11-3/4" longer than the standard push tube - Please Inquire

Pitch Stop Width (in): 3/8"

Made in the USA
