Pacific Tundra

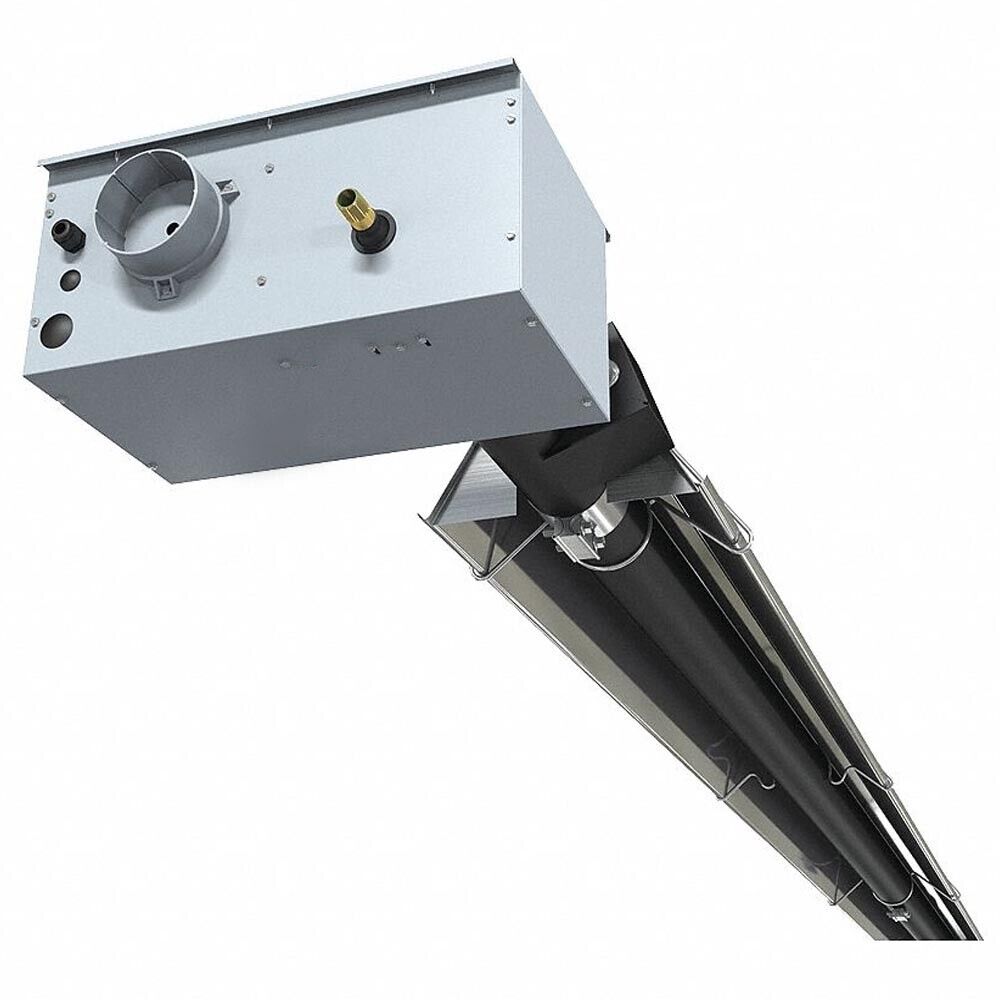

50 ft Infrared TUBE HEATER - Propane - 175,000 BTU - 120 Volts - Commercial

50 ft Infrared TUBE HEATER - Propane - 175,000 BTU - 120 Volts - Commercial

Regular price $4,711.84
Regular price Sale price $4,711.84
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT996

Condition: New

Description: 50 ft Infrared TUBE HEATER - Propane - 175,000 BTU - 120 Volts - Commercial

Features: Perfect for large spaces, aisles, and total buildings - Utilizes both indoor and outside air for combustion - Can used in vented or unvented applications


This series of infrared heaters is available in 40,000 BTU to 200,000 BTU configurations.  Available in both Natural Gas and Propane setups.


Length ranges from 10 Ft to 80 ft - If you require assistance finding the correct unit for your application, please do not hesitate to contact us.


Description & Specification:

Includes: Heater, Mounting Chains, Stainless Steel Flexible Gas Connector, Gas Shut Off

Type: Infrared Tube Heater

Fuel Source: Propane

BTU: 175,000

Tube Length (ft): 50

Volts: 120

Amps: 4.8

Coverage (At Minimum Mount Height): 34 ft x 50 ft

Fuel Consumption (GPH): 1.91

Clearance to Combustibles 0 Deg. - Top x Below x Sides (in): 6" x 92" x 34" x 34"

Clearance to Combustibles 45 Deg. - Top x Below x Sides (in): 10" x 92" x 63" x 8"

Vent Diameter (in): 4"

Minimum Mount Height (ft): 17

Gas Connection: 1/2" NPT

Tube and Reflector Material: Aluminum

Optional: Mounting Kit – Includes 25 Ft of Chain and 8 “S” Hooks - (NOT INCLUDED - Please Inquire)

Optional: Line Voltage Thermostat – 115V - Dial Type - Can be used to control up to 7 heaters at once - (NOT INCLUDED - Please Inquire)

Optional: Gas Connection Line – Flexible – ½” x 24” Long – Stainless Steel Construction – UL Listed, CSA Certified - (NOT INCLUDED - Please Inquire)

Optional: Vertical Venting Kit – 4” – for direct venting of combustion by-products.  Includes three 24” pipe lengths, one 12” storm collar, roof cap, 90º elbow and draft hood connector.  Additional lengths of pipe available.  (NOT INCLUDED - Please Inquire)

Optional: Horizontal Venting Kit – 4” – for direct venting of combustion by-products.  Includes three 24” pipe lengths, one horizontal termination cap, one wall thimble, two 45º elbows and draft hood connector.  Additional lengths of pipe available.  (NOT INCLUDED - Please Inquire)

PLEASE NOTE: Lead times may vary. Orders placed between Fall/Autumn and Winter can experience a 2 week build time. Spring and Summer orders are generally stocked or will experience a few day build time. Please contact us for current lead times.

Dimensions (D x W x H): 50-5/8 ft x 18-1/8 in x 8.5 in

Weight (lbs): 240
