Pacific Tundra

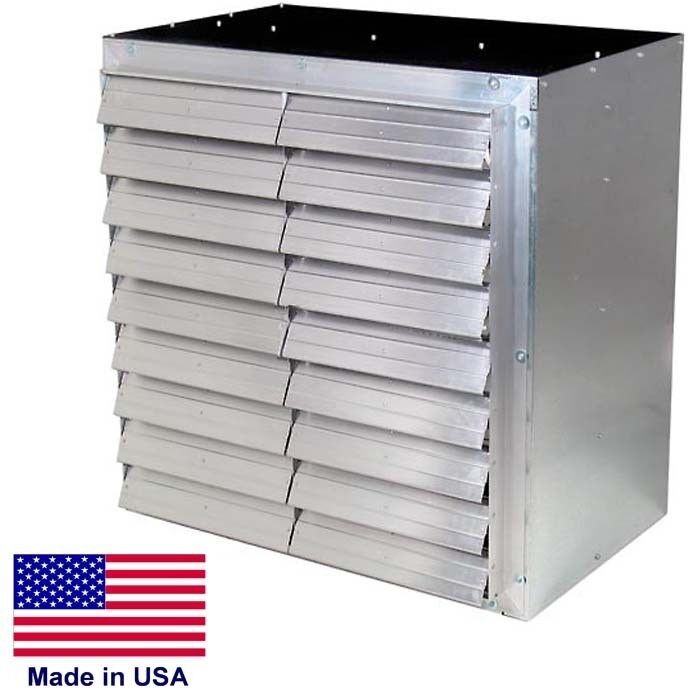

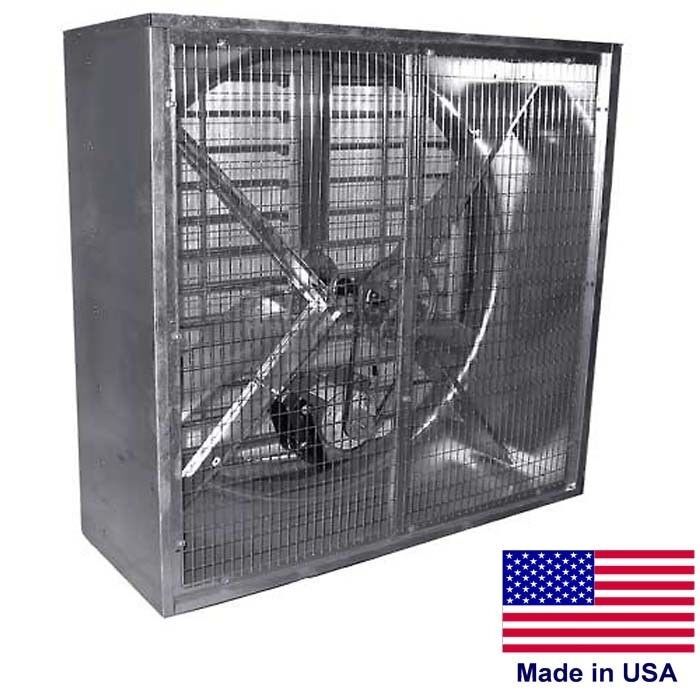

50" Wall Exhaust Fan - 20,900 CFM - 115/230 V - 1 HP - Belt Driven - Galv Steel
50" Wall Exhaust Fan - 20,900 CFM - 115/230 V - 1 HP - Belt Driven - Galv Steel
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWG245963
Condition: New
Description: 50" Wall Exhaust Fan - 20,900 CFM - 115/230 V - 1 HP - Belt Driven - Galv Steel
Features: External aluminum shutters - Tie bars - 18 gauge steel housing - Hot dipped after welding - Galvanized 1" x 2" x 12 gauge removable wire mesh guards - Poly guard clips reduce vibration - Totally enclosed motor - Thermal overload protection - Galvanized x-frame motor mount provides a quiet operation - 3 Blades - Made in the USA.
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 240V 1 Phase, 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.
Flow Ranges: 10,100 CFM to 20,900 CFM
Description & Specification:
FAN DIAMETER (in): 50
BLADE QUANTITY: 3
BLADE TYPE: Galvanized
CFM: 20,900
MATERIAL: Galvanized Steel
DRIVE SYSTEM: Belt Driven
MOTOR TYPE: Totally Enclosed Sealed Ball Bearings
HP: 1
VOLTS: 115 / 230
PHASE: 1
AMPS: 9.6/4.8
RPM: 575
DIMENSIONS (L x W x H): 55" x 50" x 57"
APPROVALS: UL and ULC Listed
EXTENDED WARRANTY: 2 Years
