Pacific Tundra
50" Wall Exhaust Fan - 20,900 CFM - 230/460 Volts - 3 Ph - Cast Aluminum Blades
50" Wall Exhaust Fan - 20,900 CFM - 230/460 Volts - 3 Ph - Cast Aluminum Blades
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTVF503GGCA
Condition: New
Description: 50" Wall Exhaust Fan - 20,900 CFM - 230/460 Volts - 3 Ph - Belt Driven - Shutter

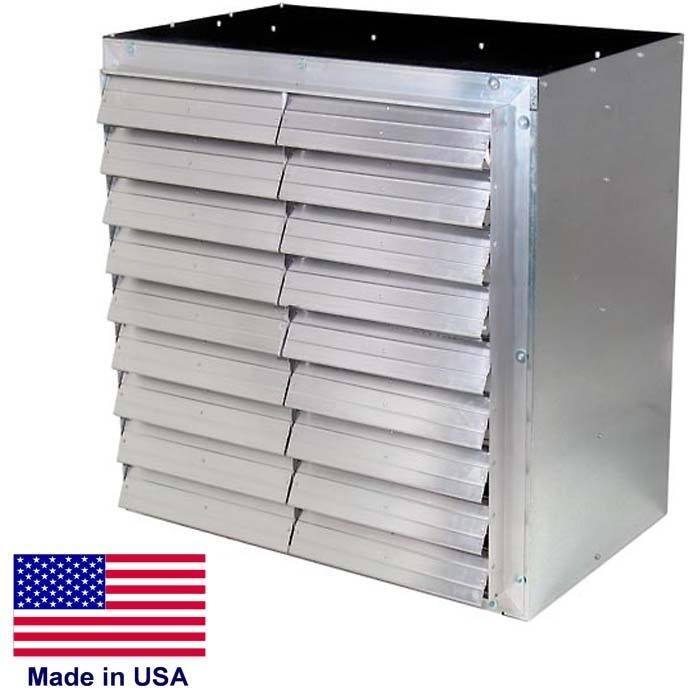

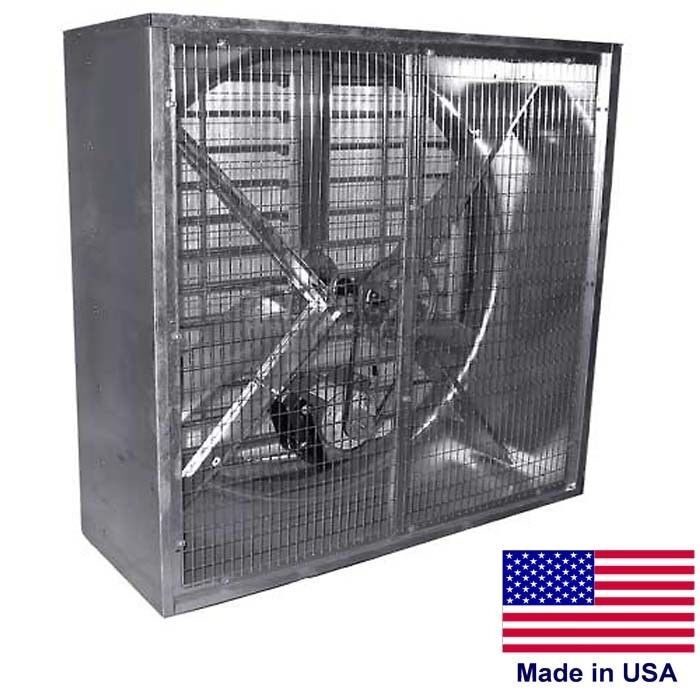

Features: External aluminum shutters - Tie bars - 18 gauge steel housing - Hot dipped after welding - Galvanized 1" x 2" x 12 gauge removable wire mesh guards - Poly guard clips reduce vibration - Totally enclosed motor - Thermal overload protection - Galvanized x-frame motor mount provides a quiet operation - 3 Blades - Made in the USA.
This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:
Voltages: 240V 1 Phase, 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.
Flow Ranges: 10,100 CFM to 20,900 CFM
We manufacture and offer a wide range of exhaust fans and configurations - please inquire
Description & Specification:
FAN DIAMETER (in): 50"
BLADE QUANTITY: 3
BLADE TYPE: Cast Aluminum
CFM: 20,900
MATERIAL: Galvanized Steel
DRIVE SYSTEM: Belt Driven
MOTOR TYPE: Totally Enclosed
HP: 1
VOLTS: 208-230/460
PHASE: 3
AMPS: 3 / 1-1/2
RPM: 575
Please Note: This item is built to order - Please allow 1 to 2 weeks for manufacturing
Optional: Galvanized Rain/Weather Hood - Please Inquire
ROUGH OPENING (in): 54-3/4" x 54-3/4"
DIMENSIONS (L x W x H): 54-1/2" x 26" x 54-1/2"
EXTENDED WARRANTY: 2 Years
MADE IN THE USA
