Pacific Tundra

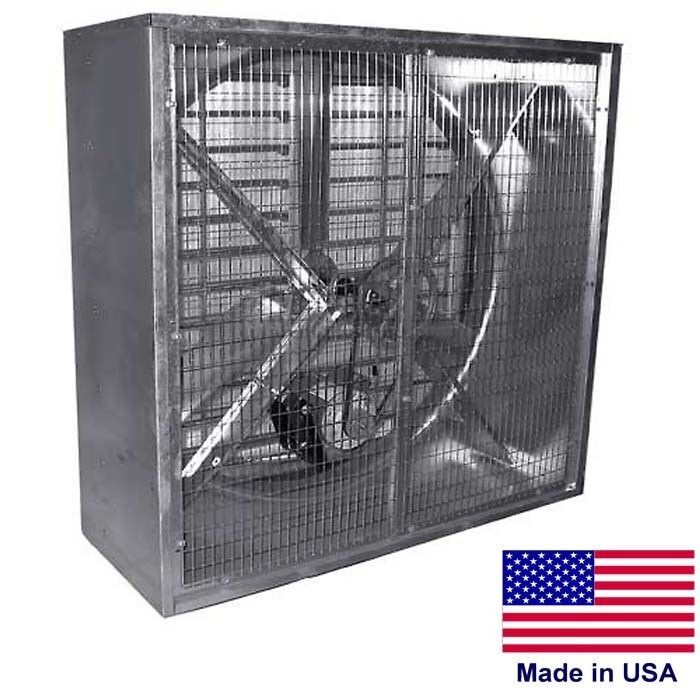

50" Wall Exhaust Fan - 21,200 CFM - 230/460 Volts - 3 Ph - Belt Driven - 6 Blade

50" Wall Exhaust Fan - 21,200 CFM - 230/460 Volts - 3 Ph - Belt Driven - 6 Blade

Regular price $2,730.83
Regular price Sale price $2,730.83
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTVF503GG6

Condition: New

Description: 50" Wall Exhaust Fan - 21,200 CFM - 230/460 Volts - 3 Ph - Belt Driven - 6 Blade

Features: External aluminum shutters - Tie bars - 18 gauge steel housing - Hot dipped after welding - Galvanized 1" x 2" x 12 gauge removable wire mesh guards - Poly guard clips reduce vibration - Totally enclosed motor - Thermal overload protection - Galvanized x-frame motor mount provides a quiet operation - 3 Blades - Made in the USA.

This Series of Wall Mounted Exhaust Fans Fans are Available in the Following Configurations:

Voltages: 240V 1 Phase, 115/230V 1 Phase, 115/230V 3 Phase, and 230/460V 3 Phase.

Flow Ranges: 10,100 CFM to 20,900 CFM

We manufacture and offer a wide range of exhaust fans and configurations - please inquire





Description & Specification:

FAN DIAMETER (in): 50"

BLADE QUANTITY: 6

BLADE TYPE: Galvanized

CFM: 21,200

MATERIAL: Galvanized Steel

DRIVE SYSTEM: Belt Driven

MOTOR TYPE: Totally Enclosed

HP: 1

VOLTS: 208-230/460

PHASE: 3

AMPS: 3 / 1-1/2

RPM: 575

Please Note: This item is built to order - Please allow 1 to 2 weeks for manufacturing

Optional: Galvanized Rain/Weather Hood - Please Inquire

ROUGH OPENING (in): 54-3/4" x 54-3/4"

DIMENSIONS (L x W x H): 54-1/2" x 26" x 54-1/2"

EXTENDED WARRANTY: 2 Years

MADE IN THE USA
