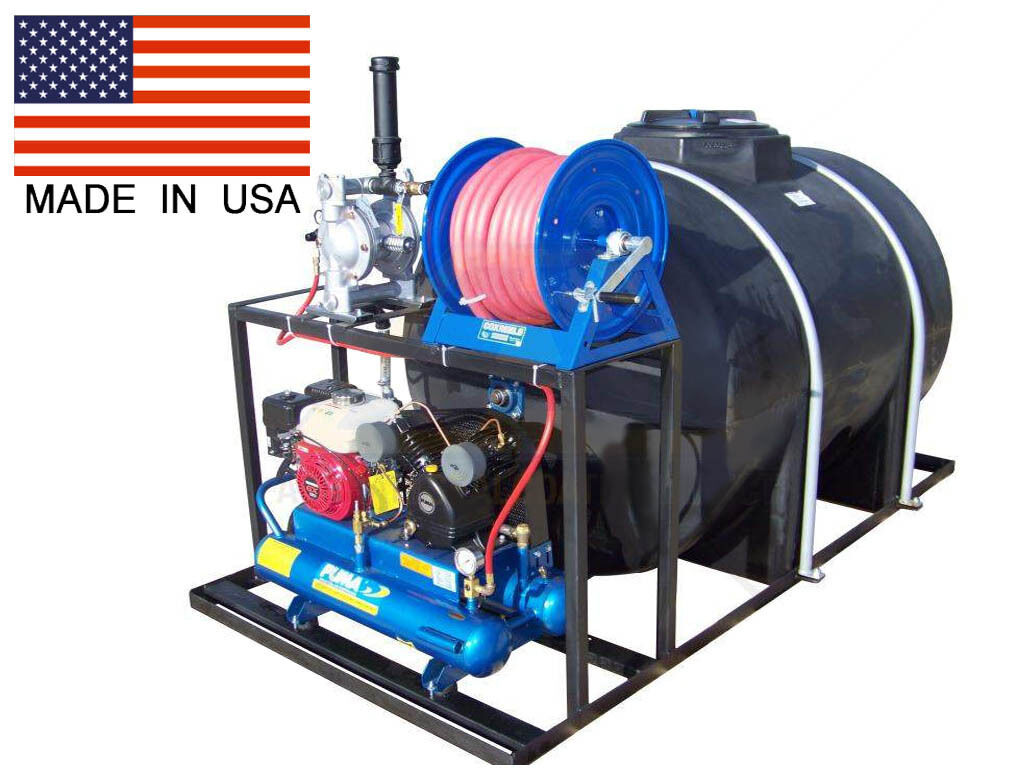

525 Gallon Asphalt Sealcoating System - Hand Agitated - Accessories - Yamada

Our 525-gallon asphalt sealing machine delivers exceptional performance and value at an affordable price—without sacrificing quality. Designed for commercial-grade sealing jobs, this robust system includes many premium features found on more expensive models.

Built with a heavy-duty 1/4" thick polyethylene tank, this unit includes integrated manual tank agitation for reliable mix consistency. It's the larger version of our popular 325-gallon sealcoat system, ideal for professionals who require greater capacity.

The tank is equipped with a 1-1/4" solid steel drive shaft, supported by flange bearings and grease zerks at both ends. The air system features a Honda Puma 8-gallon manual-start compressor, capable of producing up to 150 PSI at 13.8 CFM. It pairs with a 1" Yamada dual diaphragm pump that operates without the need for lubrication.

A deluxe 3/4" aluminum spray wand with a 6-foot reach is included, along with 100 feet of 250 PSI-rated spray hose and an 80/40 spray tip. The system also comes with a .06 mesh strainer basket for added protection.

For added convenience, a manual Cox hose reel is mounted 48 inches from the bottom of the skid, eliminating the need to bend down when reeling in the hose. The tank includes a standard 16" lid, with optional upgrades available such as a poly hinged lid or a 22" square steel double manway—please inquire for details.

Perfect for asphalt contractors looking to expand their capabilities, this machine offers durability, efficiency, and convenience in one powerful package.

Sprays coal tar and asphalt emulsion sealers

Capable of pumping sand-filled mixes

Maximum spray pressure: 125 PSI

Strainer: 2-quart Banjo poly

Spray wand: 6' wand with 80/40 steel spray tip included

Engine fuel type: Unleaded gasoline

Tank:

Capacity: 525 gallons

Material: 1/4" thick industrial-grade polyethylene

Manway: 16" round screw-on lid

Manual hand agitation included

Pump and hydraulic agitation not included

Mechanical agitation available (optional — please inquire)

Engine & Pump:

Engine: 5.5 HP industrial Honda GX

Pump: 1" Yamada dual diaphragm

Pump housing: Aluminum

Diaphragm type: Dual "Buna N"

Hose & Reel:

Hose length: 50 feet standard (supports up to 100 feet)

Hose diameter: 3/4" ID

Pressure rating: 250 PSI

Hose reel: Cox 100' manual (electric upgrade available)

Unit Specifications:

Dimensions: 120" L x 52" W x 66" H

Empty weight: 800 lbs

Estimated full weight: 6,313 lbs*

*Based on 10.5 lbs/gallon for undiluted sealer without sand additives
