55" Fiberglass Exhaust Fan - 25,000 CFM - 115/230V - 1 HP - Belt Driven - 1 Ph
55" Fiberglass Exhaust Fan - 25,000 CFM - 115/230V - 1 HP - Belt Driven - 1 Ph
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB735649
Condition: New

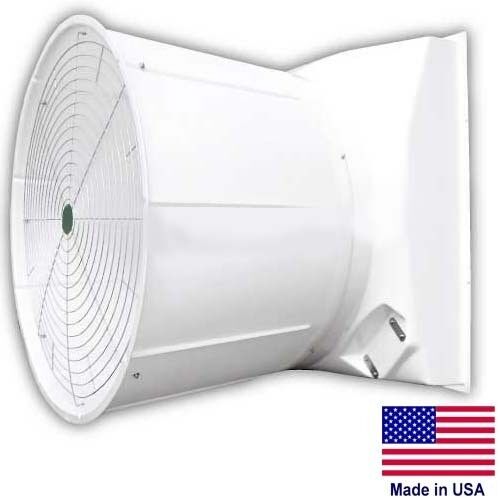

Description: 55" Fiberglass Exhaust Fan - 25,000 CFM - 115/230V - 1 HP - Belt Driven - 1 Ph
Features: This fiberglass exhaust fan features a corrosion resistant housing, stainless steel blades, and poly shutters - Housing is gel coated which allows for user-friendly maintenance and maximized airflow - Totally Enclosed Motor - Sealed ball bearings - Automatic thermal overload protection - 1 speed - Slant wall design - Poly cone
MADE IN THE USA.
THIS LINE OF INDUSTRIAL ROOF VENTILATOR EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:
Sizes Range: 18" to 42"
Motors Horsepower: 1/3 Hp to 7.5 Hp
Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase
CFM Ranges from 3,375 to 26,900
This series of roof ventilator exhaust fans is also available in an explosion proof/hazardous location configuration - please inquire
Description & Specification:
FAN DIAMETER: 55"
CFM HIGH: 25,000
CFM MEDIUM: 23,100
CFM LOW: 21,000
HORSEPOWER: 1
RPM: 493
VOLTS: 115 / 230
PHASE: 1
DRIVE: Belt
BLADE QUANTITY: 3
HOUSING CONSTRUCTION: Fiberglass
BLADE CONSTRUCTION: Galzanized
APPROVAL: AMCA
ROUGH OPENING: 59-3/4" X 59-3/4"
DIMENSIONS: 63" L x 50-1/2" W x 62-1/4" H
WEIGHT: 280 lbs
EXTENDED WARRANTY: 2 Years
