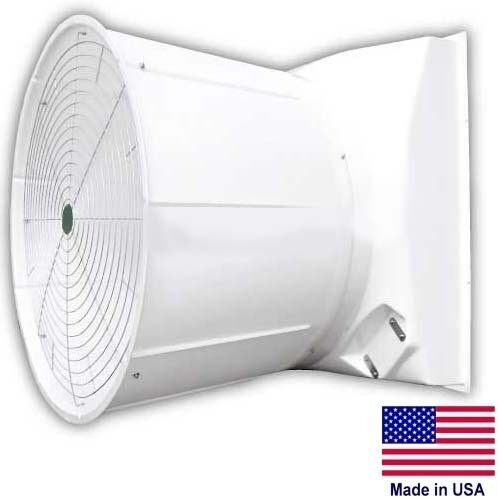

55" Fiberglass Exhaust Fan - 30,000 CFM - 208-230/460V - 2HP - Belt Driven - 3Ph
55" Fiberglass Exhaust Fan - 30,000 CFM - 208-230/460V - 2HP - Belt Driven - 3Ph
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB735653
Condition: New
Description: 55" Fiberglass Exhaust Fan - 30,000 CFM - 208-230/460V - 2HP - Belt Driven - 3Ph
Features: This fiberglass exhaust fan features a corrosion resistant housing, aluminum blades, and cast aluminum shutters - Housing is gel coated which allows for user-friendly maintenance and maximized airflow - Totally Enclosed Motor - Sealed ball bearings - Automatic thermal overload protection - 1 speed - Slant wall design - Poly cone.
PLEASE NOTE: This unit is Built
to Order
Please allow 2
weeks for manufacturing and shipping
Description & Specification:
FAN DIAMETER: 55"
CFM HIGH: 30,000
CFM MEDIUM: 28,300
CFM LOW: 26,400
HORSEPOWER: 2
RPM: 606
VOLTS: 208-230 / 460
PHASE: 3
DRIVE: Belt
BLADE QUANTITY: 3
HOUSING CONSTRUCTION: Fiberglass
BLADE CONSTRUCTION: Cast Aluminum
APPROVAL: AMCA
ROUGH OPENING: 59-3/4" X 59-3/4"
DIMENSIONS: 62-1/4" H x 63" W x 50-1/2" D
WEIGHT: 300 lbs
EXTENDED WARRANTY: 2 Years
