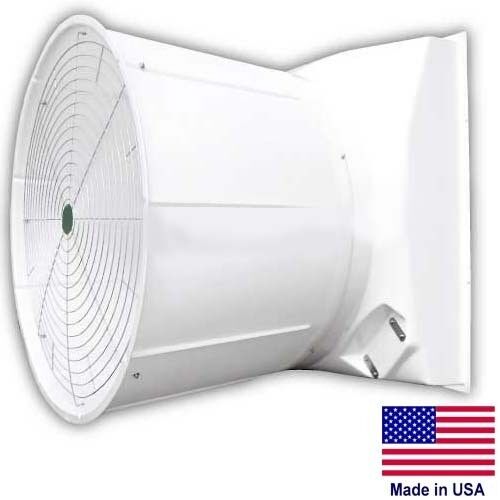

55" Fiberglass Exhaust Fan - 31,400 CFM - 115/208/230V - 2HP - Belt Driven - 1PH
55" Fiberglass Exhaust Fan - 31,400 CFM - 115/208/230V - 2HP - Belt Driven - 1PH
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWBB735651
Condition: New
Description: 55" Fiberglass Exhaust Fan - 31,400 CFM - 115/208/230V - 2HP - Belt Driven - 1PH
Features: This fiberglass exhaust fan features a corrosion resistant housing, galvanized blades, and aluminum shutters - Housing is gel coated which allows for user-friendly maintenance and maximized airflow - Totally Enclosed Motor - Sealed ball bearings - Automatic thermal overload protection - 1 speed - Slant wall design - Poly cone.
PLEASE NOTE: This unit is Built
to Order
Please allow 2
weeks for manufacturing and shipping
Description & Specification:
FAN DIAMETER: 55"
CFM HIGH: 31,400
CFM MEDIUM: 29,800
CFM LOW: 27,700
HORSEPOWER: 2
RPM: 544
VOLTS: 115 / 208 / 230
PHASE: 1
DRIVE: Belt
BLADE QUANTITY: 3
HOUSING CONSTRUCTION: Fiberglass
BLADE CONSTRUCTION: Galvanized Blades
APPROVAL: AMCA
ROUGH OPENING: 59-3/4" X 59-3/4"
DIMENSIONS: 62-1/4" H x 63" W x 50-1/2" D
WEIGHT: 300 lbs
EXTENDED WARRANTY: 2 Years
