Pacific Tundra

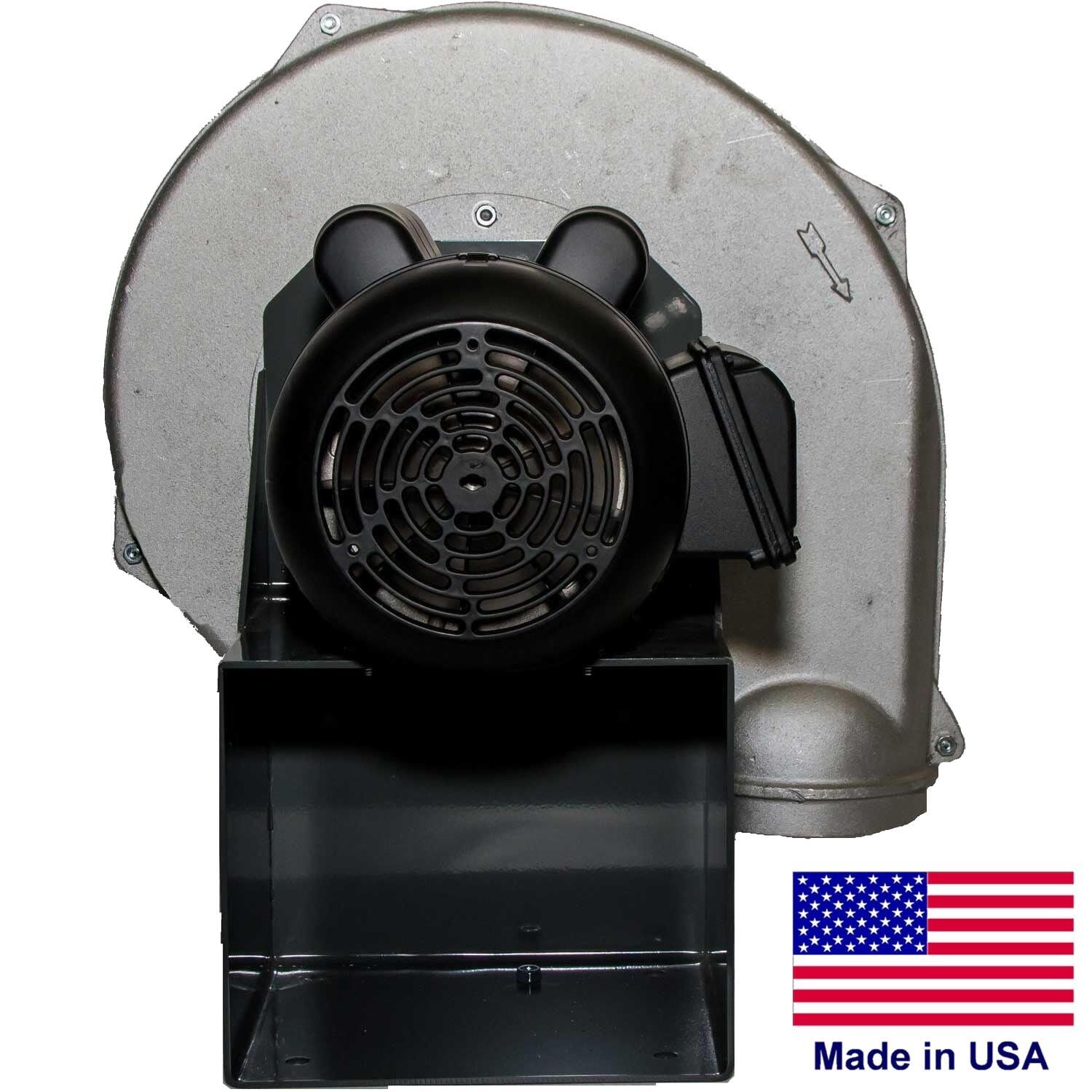

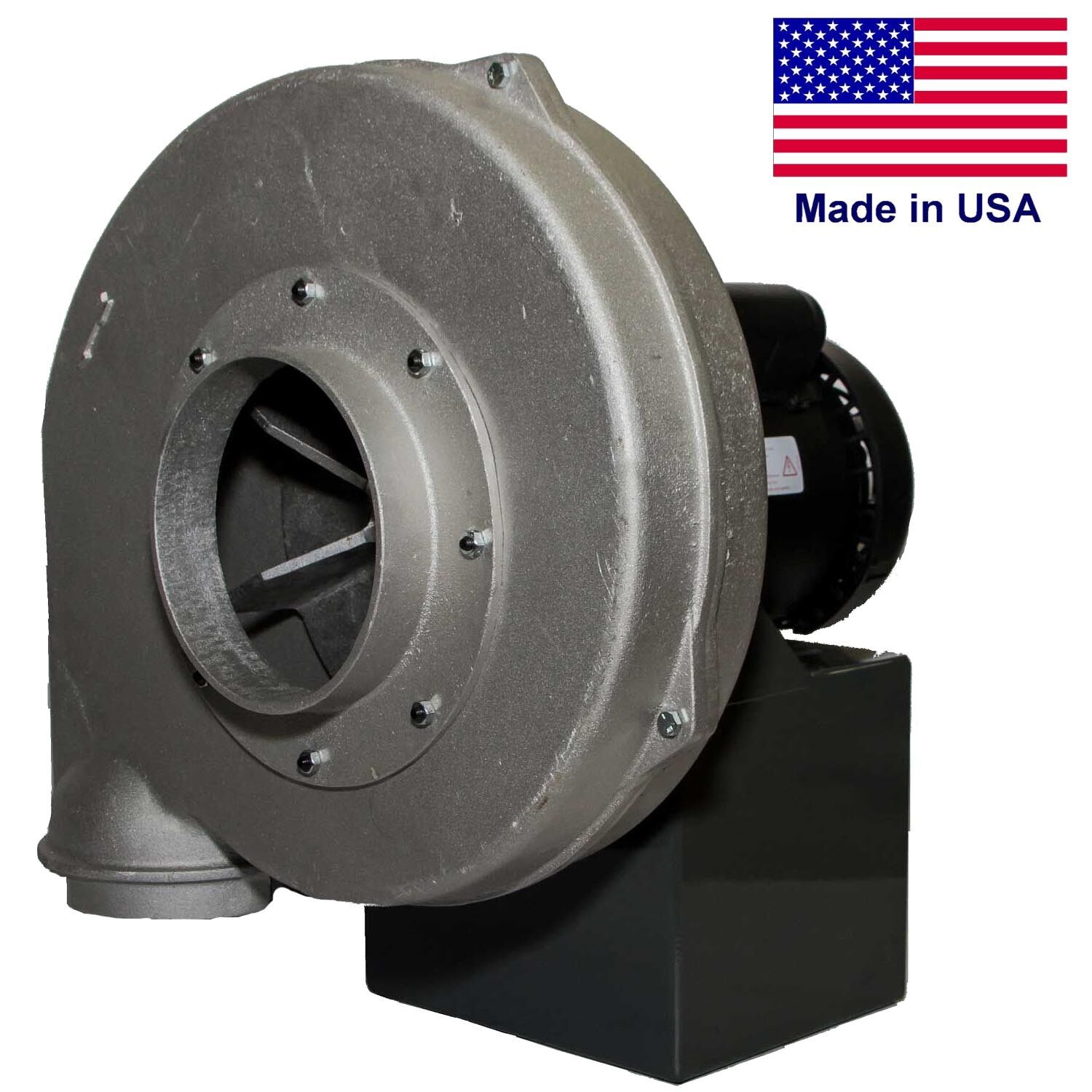

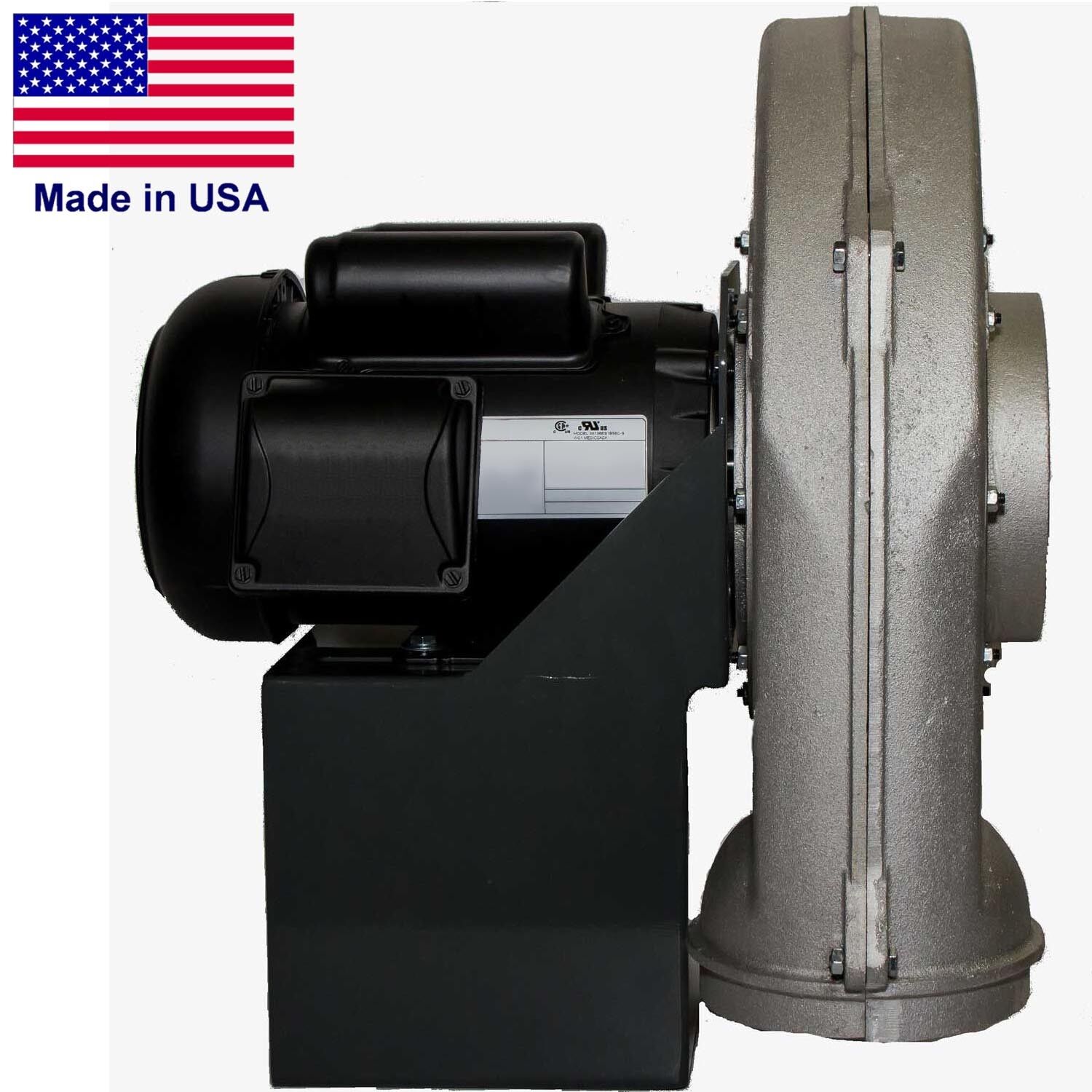

ALUMINUM CENTRIFUGAL BLOWER - 865 CFM - 115/230 V - 1 Ph - 1 Hp - 7" In / 6" Out

ALUMINUM CENTRIFUGAL BLOWER - 865 CFM - 115/230 V - 1 Ph - 1 Hp - 7" In / 6" Out

$2,902.77
$2,902.77
Sale Sold out


FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



PTWGB703088



Condition:



New



Description:


ALUMINUM CENTRIFUGAL BLOWER - 865 CFM - 115/230 V - 1 Ph - 1 Hp - 7" In / 6" Out



 Features:



Features a cast aluminum housing and wheels - Housing and wheels are spark resistant - Cast aluminum is the ideal choice for electronic applications as aluminum is resistant to magnetism. This ultimately reduces interference with electronics - Aluminum becomes stronger in colder climates and is corrosion resistant - Removes dust, fumes, and various harmful particles -  MADE IN THE USA



Contact Us:



Email: eBay mail





See similar items in our eBay Store



 Please Note: This item is built to order and will require 7 to 15 business days to manufacture and ship
Please contact us for current lead times


Description & Specification:

Standard discharge is in the down position. Optional upblast and top horizontal directions are available - Please Inquire

Removes vehicle fumes in garages and fire stations

Housing Material: Cast Aluminum

Base Material: Steel

Non-magnetic: Yes

Volts: 115 / 230

Phase: 1

RPM: 3,450

Horsepower: 1

Motor Type: TEFC

Hertz: 60

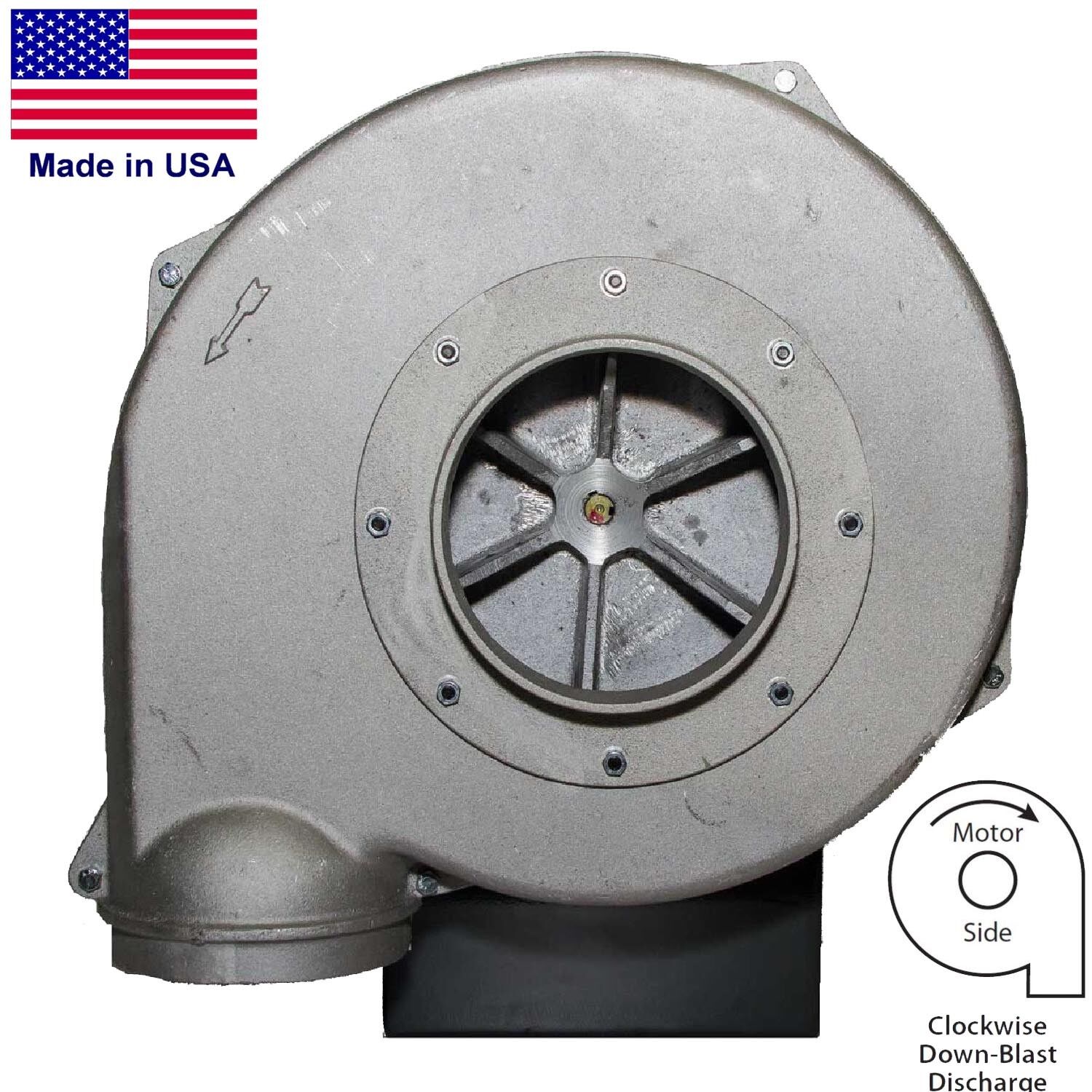

Rotation (View from Motor Side): Clockwise

Inlet Size (in): 7"

Outlet Size (in): 6"

CFM Airflow @ 1.000" Static Pressure: 865

CFM Airflow @ 3.000" Static Pressure: 710

CFM Airflow @ 5.000" Static Pressure: 535

CFM Airflow @ 7.000" Static Pressure: 160

Discharge Position: Down

Decibels (DBA) @ 5ft Duct Inlet and Outlet: 72

Approvals: UL and CSA

Dimensions (L x W x H): 17-7/8" x 18-5/8" x 19-1/8"

Weight (lbs): 110
