Centrifugal Close Coupled Pump - 1.5" - 115/230 V - 130 GPM - 110 ft Head - 1 Ph
Centrifugal Close Coupled Pump - 1.5" - 115/230 V - 130 GPM - 110 ft Head - 1 Ph
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1006
Condition: New
Description: Centrifugal Close Coupled Pump - 1.5" Ports - 115/230 Volts - 130 GPM - 110 ft Head - 1 Phase - 3 HP
This series of pump is available in various port sizes, materials (Bronze, Cast Iron, and Stainless Steel), GPM, Voltage, and Phases. Please inquire for assistance.
Description & Specification:
Pump Type: Close Coupled
Voltage: 115/230
Phase: Single
Horsepower: 3
Motor Type: Open Drip Proof
Inlet Diameter (in): 1.5"
Outlet Diameter (in): 1.5"
Port Type: FNPT, NPT
GPM: 130
Maximum Total Head (Static): 110 ft
Maximum PSI: 48
Working PSI: 50
RPM: 3500
Amps: 29 / 14.5
Poles: 2
Maximum Suction Lift: 28 ft (Static Wet at Sea Level)

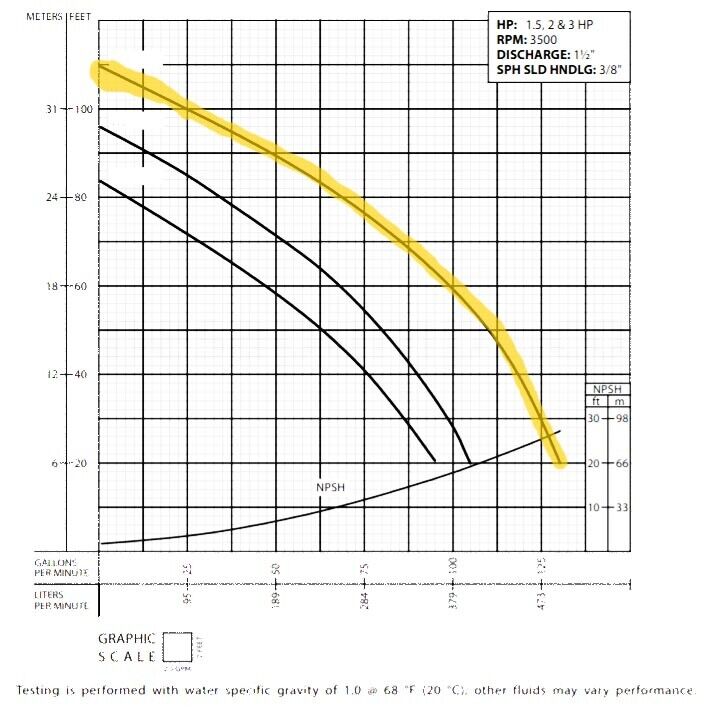

Curve: Please reference photos for curve chart (Highlighted Area)
Handles Solids: Yes
Solid Handling Size (in): 0.375"
Priming: Self Priming
Housing: Cast Iron
Volute Material: Cast Iron
Impeller: Cast Iron - Open
Shaft Material: Stainless Steel
Shaft Sleeve: Bronze
Pump Material: Steel and Stainless Steel
Buna-N: Square Ring
Dimensions (L x W x H): 19" x 11" x 12"
Ship Weight: 150 lbs
Unit Weight: 147 lbs
Warranty: 1 Year
