Pacific Tundra
Centrifugal Close Coupled Pump - 1.5" - 230/460V - 95 GPM - 84ft Head - 3Ph - SS
Centrifugal Close Coupled Pump - 1.5" - 230/460V - 95 GPM - 84ft Head - 3Ph - SS
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1005
Condition: New
Description: Centrifugal Close Coupled Pump - 1.5" - 230/460 Volts - 95 GPM - 84 ft Head - 3 Phase - Stainless Steel Shaft and Pump Material
Description & Specification:
Pump Type: Close Coupled
Voltage: 230/460
Phase: 3
Horsepower: 1.5
Motor Type: Open Drip Proof
Inlet Diameter (in): 1.5"
Outlet Diameter (in): 1.5"
Port Type: FNPT, NPT
GPM: 95
Maximum Total Head (Static): 84 ft
Maximum PSI: 36
Working PSI: 50
RPM: 3500
Amps: 4.9 - 4.6 / 2.3
Poles: 2
Maximum Suction Lift: 28 ft (Static Wet at Sea Level)

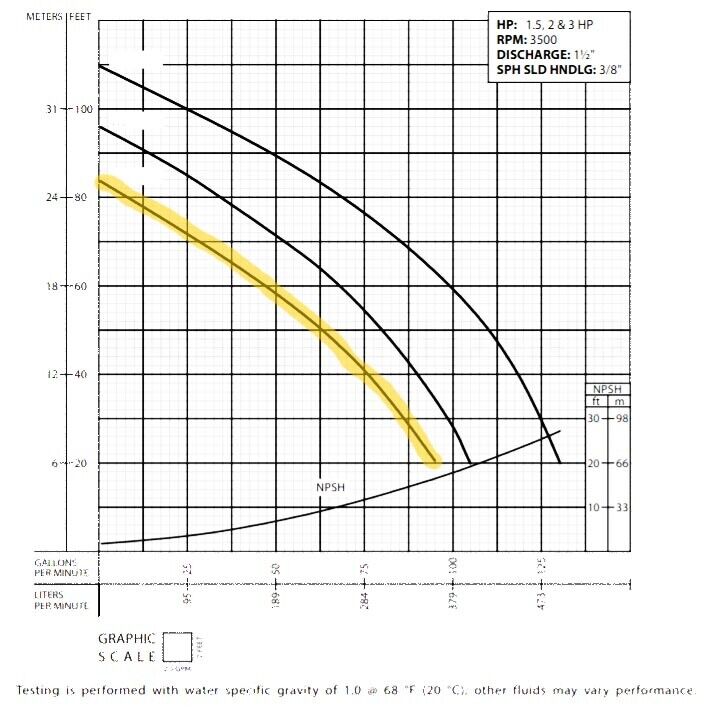

Curve: Please reference photos for curve chart (Highlighted Area)
Handles Solids: Yes
Solid Handling Size (in): 0.375"
Priming: Self Priming
Housing: Cast Iron
Volute Material: Cast Iron
Impeller: Cast Iron - Open
Shaft Material: Stainless Steel
Pump Material: Steel and Stainless Steel
Buna-N: Square Ring
Dimensions (L x W x H): 18" x 11" x 12"
Ship Weight: 105 lbs
Unit Weight: 90 lbs
Warranty: 1 Year
