Centrifugal Close Coupled Pump - 1.5" Port - 115/230V - 95 GPM - 84ft Head - 1ph
Centrifugal Close Coupled Pump - 1.5" Port - 115/230V - 95 GPM - 84ft Head - 1ph
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1000
Condition: New
Description: Centrifugal Close Coupled Pump - 1.5" Port - 115/230 Volts - 95 GPM - 84 ft Head - 1 Phase
Description & Specification:
Pump Type: Close Coupled
Voltage: 115/230
Phase: Single
Horsepower: 1.5
Motor Type: Open Drip Proof
Inlet Diameter (in): 1.5"
Outlet Diameter (in): 1.5"
Port Type: FNPT, NPT
GPM: 95
Maximum Total Head (Static): 84 ft
Maximum PSI: 36
Working PSI: 50
RPM: 3500
Amps: 13 / 6.5
Poles: 2
Maximum Suction Lift: 28 ft (Static Wet at Sea Level)

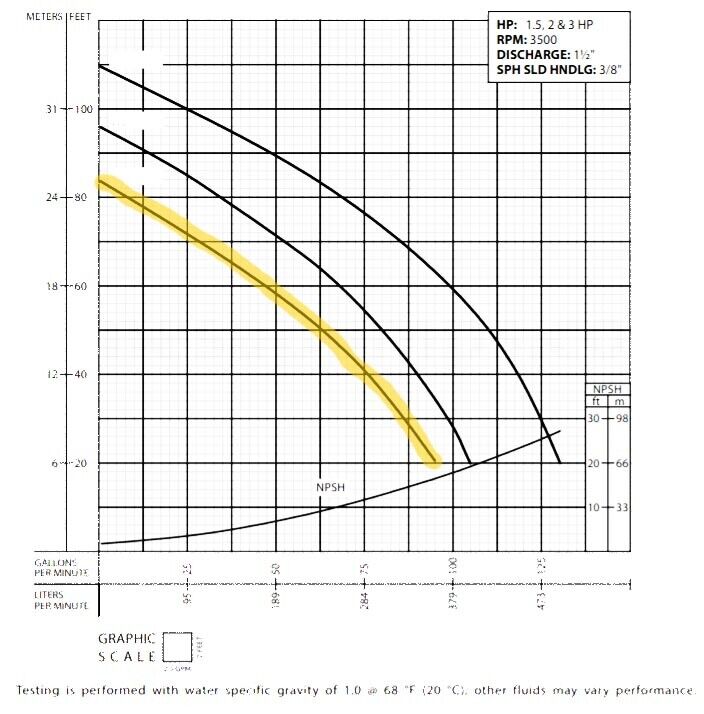

Curve: Please reference photos for curve chart (Highlighted Area)
Handles Solids: Yes
Priming: Self Priming
Housing: Cast Iron
Volute Material: Cast Iron
Impeller: Cast Iron - Open
Buna-N: Square Ring
Dimensions (L x W x H): 18.6" x 10" x 11"
Ship Weight: 107 lbs
Unit Weight: 96 lbs
Warranty: 1 Year
