Pacific Tundra

Centrifugal Close Coupled Pump - 1.5" Ports - 115V - 105 GPM - 96 ft Head - 1 Ph

Centrifugal Close Coupled Pump - 1.5" Ports - 115V - 105 GPM - 96 ft Head - 1 Ph

Regular price $3,225.06
Regular price Sale price $3,225.06
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1004

Condition: New

Description: Centrifugal Close Coupled Pump - 1.5" Ports - 115 Volts - 105 GPM - 96 ft Head - 1 Phase

Description & Specification:

Pump Type:

Close Coupled

Voltage: 230

Phase: Single

Horsepower: 2

Motor Type:

Open Drip Proof

Inlet Diameter (in): 1.5"

Outlet Diameter (in): 1.5"

Port Type: FNPT, NPT

GPM: 105

Maximum Total Head (Static): 96 ft

Maximum PSI: 42

Working PSI: 50

RPM: 3500

Amps: 26 / 13

Poles: 2

Maximum Suction Lift: 28 ft (Static Wet at Sea Level)

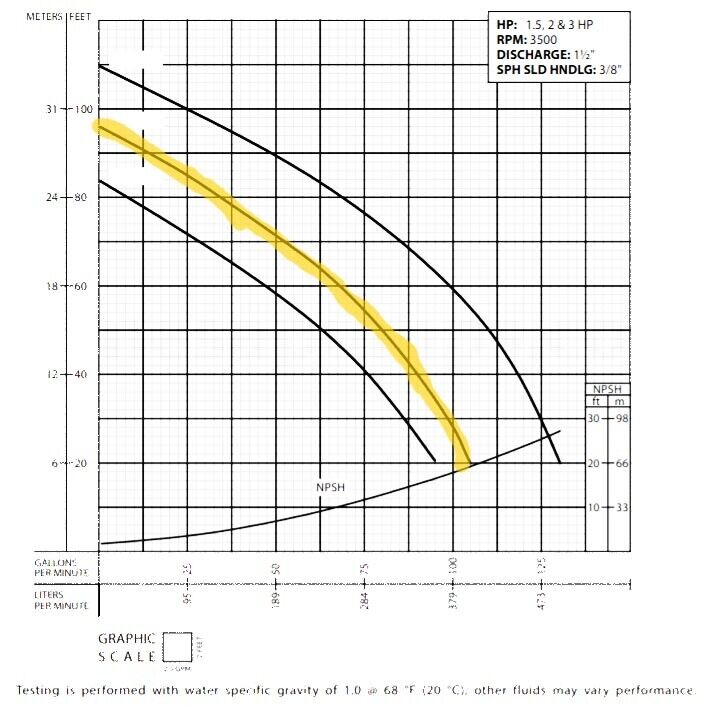

Curve: Please reference photos for curve chart (Highlighted Area)

Handles Solids: Yes

Solid Handling Size (in): 0.375"

Priming:

Self Priming

Housing: Cast Iron

Volute Material: Cast Iron

Impeller: Cast Iron - Open

Buna-N: Square Ring

Dimensions (L x W x H): 18" x 11" x 11"

Ship Weight: 145 lbs

Unit Weight: 105 lbs

Warranty: 1 Year
