Pacific Tundra

Centrifugal Close Coupled Pump - 1.5" Ports - 230/460 Volt - 105 GPM - 84ft Head

Centrifugal Close Coupled Pump - 1.5" Ports - 230/460 Volt - 105 GPM - 84ft Head

Regular price $3,132.24
Regular price Sale price $3,132.24
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1002

Condition: New

Description: Centrifugal Close Coupled Pump - 1.5" Ports - 230/460 Volts - 3 Phase - 105 GPM - 84 ft Head

Description & Specification:

Pump Type:

Close Coupled

Voltage: 230/460

Phase: 3

Horsepower: 2

Motor Type:

Open Drip Proof

Inlet Diameter (in): 1.5"

Outlet Diameter (in): 1.5"

Port Type: FNPT, NPT

GPM: 105

Maximum Total Head (Static): 96 ft

Maximum PSI: 42

Working PSI: 50

RPM: 3500

Amps: 6.4 - 5.4 / 2.7

Poles: 2

Maximum Suction Lift: 28 ft (Static Wet at Sea Level)

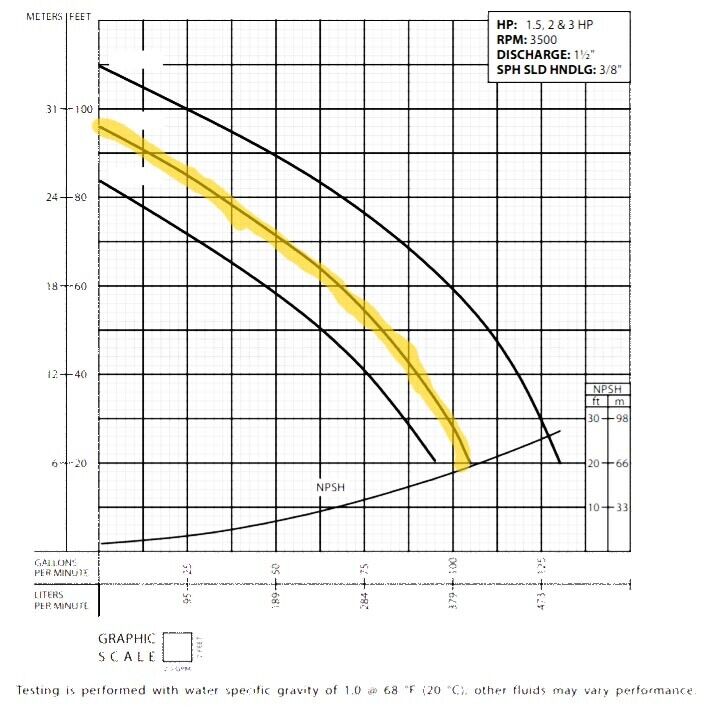

Curve: Please reference photos for curve chart (Highlighted Area)

Handles Solids: Yes

Priming:

Self Priming

Housing: Cast Iron

Volute Material: Cast Iron

Impeller: Cast Iron - Open

Buna-N: Square Ring

Dimensions (L x W x H): 18.4" x 10.1" x 11"

Ship Weight: 108 lbs

Unit Weight: 92 lbs

Warranty: 1 Year
