Pacific Tundra

Centrifugal Close Coupled Pump - 1.5" Ports - 230 V - 95 GPM - 84 ft Head - 3 Ph

Centrifugal Close Coupled Pump - 1.5" Ports - 230 V - 95 GPM - 84 ft Head - 3 Ph

Regular price $3,099.62
Regular price Sale price $3,099.62
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1001

Condition: New

Description: Centrifugal Close Coupled Pump - 1.5" Ports - 230 V - 95 GPM - 84 ft Head - 3 Ph

Description & Specification:

Pump Type:

Close Coupled

Voltage: 230

Phase: 3

Horsepower: 1.5

Motor Type:

Open Drip Proof

Inlet Diameter (in): 1.5"

Outlet Diameter (in): 1.5"

Port Type: FNPT, NPT

GPM: 95

Maximum Total Head (Static): 84 ft

Maximum PSI: 36

Working PSI: 50

RPM: 3500

Amps: 5.5 - 4.4 / 2.2

Poles: 2

Maximum Suction Lift: 28 ft (Static Wet at Sea Level)

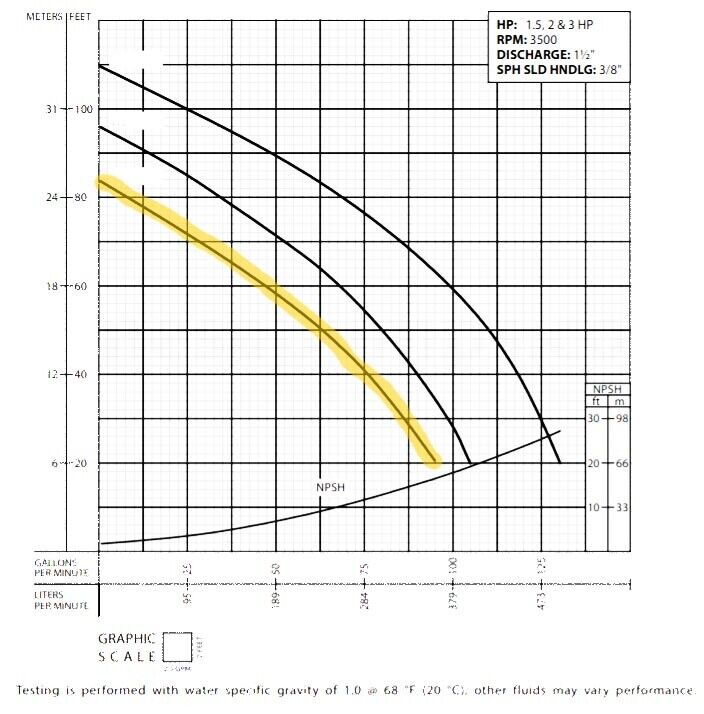

Curve: Please reference photos for curve chart (Highlighted Area)

Handles Solids: Yes

Priming:

Self Priming

Housing: Cast Iron

Volute Material: Cast Iron

Impeller: Cast Iron - Open

Buna-N: Square Ring

Dimensions (L x W x H): 17.9" x 10.1" x 11"

Ship Weight: 99 lbs

Unit Weight: 84 lbs

Warranty: 1 Year
