Pacific Tundra

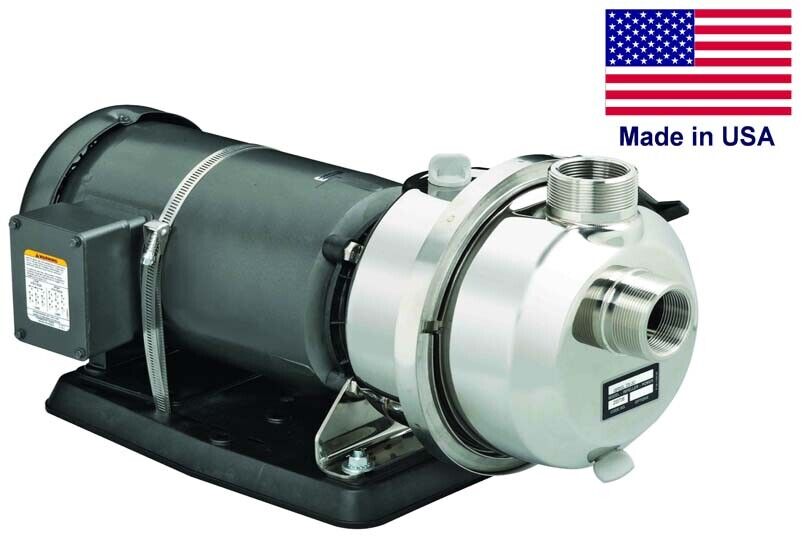

Centrifugal Potable Water Pump 180 GPM - 115/230 V - 1 Ph - 1.5" FBSP & 2" MBSP

Centrifugal Potable Water Pump 180 GPM - 115/230 V - 1 Ph - 1.5" FBSP & 2" MBSP

Regular price $5,357.54
Regular price Sale price $5,357.54
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTEIPW2BWL

Condition: New

Description: 180 GPM Centrifugal Pump - 115/230 Volts - 1 Phase - 1.5" FBSP & 2" MBSP - Self Priming

Features: Built for Potable (drinking water) applications - 34 PSI - TEFC Motor - Stainless Steel housing - CARB and EPA compliant - Made in the USA.



This Series of Commercial Centrifugal Pumps are Available in the Following Configurations:

Flows: 4500 GPH (75 GPM) to 7800 GPH (130 GPM)

PSI Range: 23 to 25

Motor Sizes: 1 Hp to 3 Hp

Voltage/Phase: 115/230V, 1 Phase, 208-230/460V, 3 Phase and 230/460V, 3 Phase

Suction/Discharge Ports: 1.5" to 2"


Description & Specification:

Application: Potable (Drinking Water)

Pump Type: Centrifugal - Industrial/Commercial

Voltage: 115/230

Phase: 1

Horsepower: 3

Motor Type: TEFC

Inlet Diameter (in): 1.5" Female and 2" Male

Outlet Diameter (in): 1.5" Female and 2" Male

Port Type: BSP

GPM: 180

Maximum Total Head (Static): 78 ft

Maximum PSI: 34

Maximum Suction Lift (Sea Level): 20

Solids: No

Housing: Stainless Steel

Pump Fittings: Stainless Steel

Volute Material: Polypropylene

Impeller: Polypropylene

Impeller Number: 1

EPDM: Mechanical Seal Material, Check Valve, and Shaft Sleeve

Note: We carry a full line of accessories including hoses, strainers, seal kits, wheel dolly kits and more - Please Inquire

Weight (lbs): 27

Warranty: 1 Year

MADE IN THE USA
