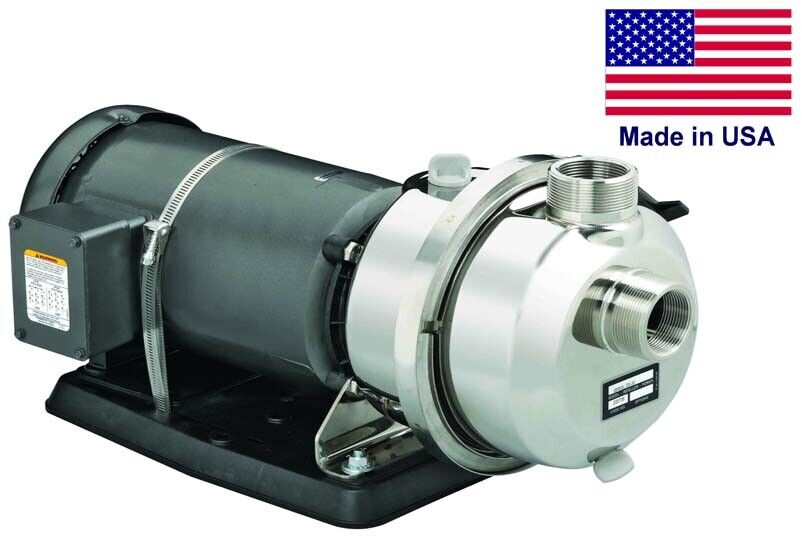

Centrifugal Potable Water Pump 180 GPM - 230/460 V - 3 Ph - 1.5" FBSP & 2" MBSP

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTDIPW2BWL

Condition: New

Description: 180 GPM Centrifugal Pump - 230/460 Volts - 3 Phase - 1.5" FBSP & 2" MBSP - Self Priming

Flows: 4500 GPH (75 GPM) to 7800 GPH (130 GPM)

PSI Range: 23 to 25

Motor Sizes: 1 Hp to 3 Hp

Voltage/Phase: 115/230V, 1 Phase, 208-230/460V, 3 Phase and 230/460V, 3 Phase

Suction/Discharge Ports: 1.5" to 2"

Description & Specification:

Application: Potable (Drinking Water)

Pump Type: Centrifugal - Industrial/Commercial

Voltage: 230/460

Phase: 3

Horsepower: 3

Motor Type: TEFC

Inlet Diameter (in): 1.5" Female and 2" Male

Outlet Diameter (in): 1.5" Female and 2" Male

Port Type: Dual Port BSP

GPM: 180

Maximum Total Head (Static): 78 ft

Maximum PSI: 34

Maximum Suction Lift (Sea Level): 20

Solids: No

Housing: Stainless Steel

Pump Fittings: Stainless Steel

Volute Material: Polypropylene

Impeller: Polypropylene

Impeller Number: 1

EPDM: Mechanical Seal Material, Check Valve, and Shaft Sleeve

Note: We carry a full line of accessories including hoses, strainers, seal kits, wheel dolly kits and more - Please Inquire

Weight (lbs): 27

Warranty: 1 Year

MADE IN THE USA
