Pacific Tundra

Centrifugal Pump - 1.25" x 1" - 37 GPM - 141 ft Head - 230 V - 3 Ph - 2 HP - SS

Centrifugal Pump - 1.25" x 1" - 37 GPM - 141 ft Head - 230 V - 3 Ph - 2 HP - SS

Regular price $1,995.75
Regular price Sale price $1,995.75
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT972

Condition: New

Description: Centrifugal Pump - 1.25" In x 1" Out - 37 GPM - 141 ft Head - 230 Volts - 3 Phase - 2 HP - SS

Description & Specification:

Application: End Suction

Pump Type: Centrifugal - Industrial/Commercial

Voltage: 230

Phase: 3

Horsepower: 2

Motor Type: TEFC

Inlet Diameter (in): 1.5"

Outlet Diameter (in): 1”

Port Type: FNPT, NPT

GPM: 37

Maximum Total Head (Static): 141 ft

Maximum PSI: 61

Working PSI: 127

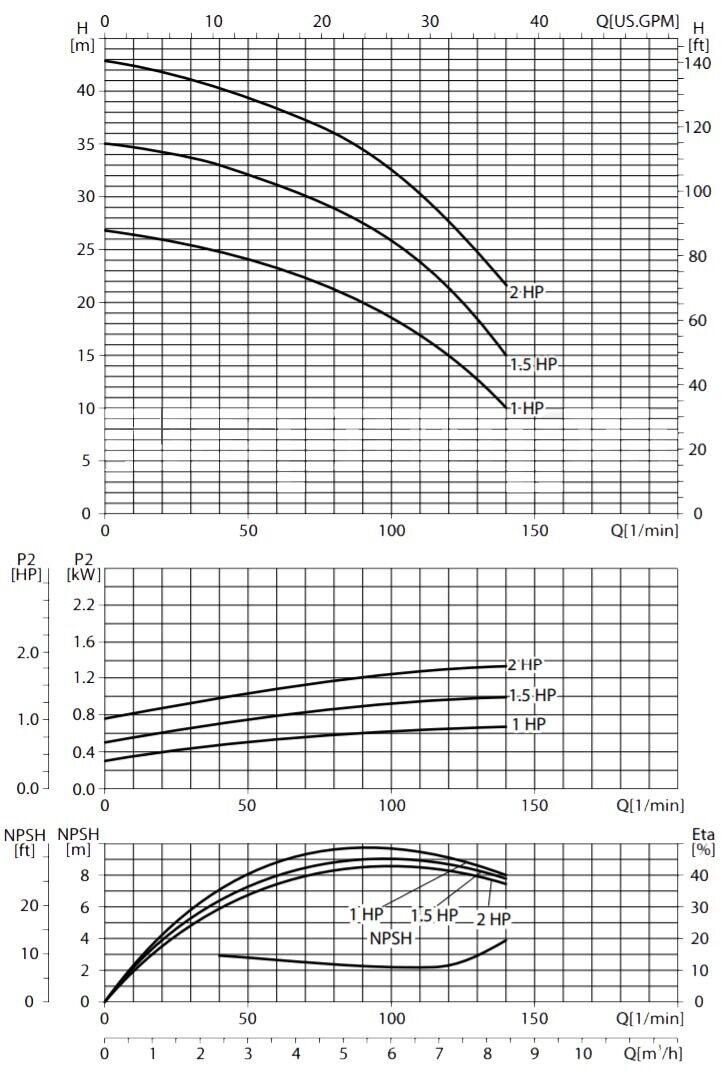

Curve: Please reference photos for curve chart (Highlighted Area)

Solids: No

Priming: Flooded Suction

Housing: Stainless Steel

Volute Material: Stainless Steel

Impeller: Stainless Steel

Buna-N: Seal Material and O Ring

Dimensions (L x W x H): 16" x 8.5" x 9.1"

Ship Weight: 60 lbs

Unit Weight: 45 lbs

Warranty: 1 Year

MADE IN THE USA



View full details
