Centrifugal Pump - 1.5" x 1.25" - 78 GPM - 83ft Head - 230V - 3 Ph - 1.5 HP - SS
Centrifugal Pump - 1.5" x 1.25" - 78 GPM - 83ft Head - 230V - 3 Ph - 1.5 HP - SS
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT973
Condition: New
Description: Centrifugal Pump - 1.5" In x 1.25" Out - 78 GPM - 83 ft Head - 230 Volt - 3 Phase - 1.5 HP - Stainless Steel
Description & Specification:
Application: End Suction
Pump Type: Centrifugal - Industrial/Commercial
Voltage: 230
Phase: 3
Horsepower: 1.5
Motor Type: TEFC
Inlet Diameter (in): 1.5"
Outlet Diameter (in): 1.25”
Port Type: FNPT, NPT
GPM: 78
Maximum Total Head (Static): 83 ft
Maximum PSI: 36
Working PSI: 129

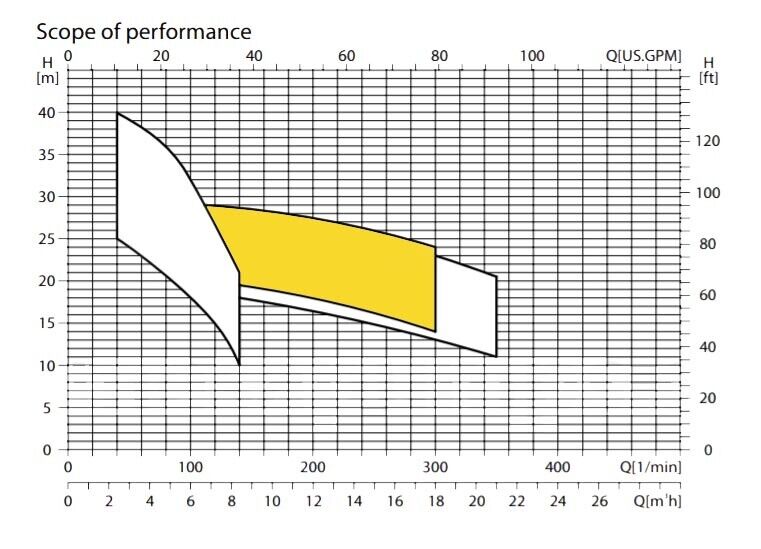

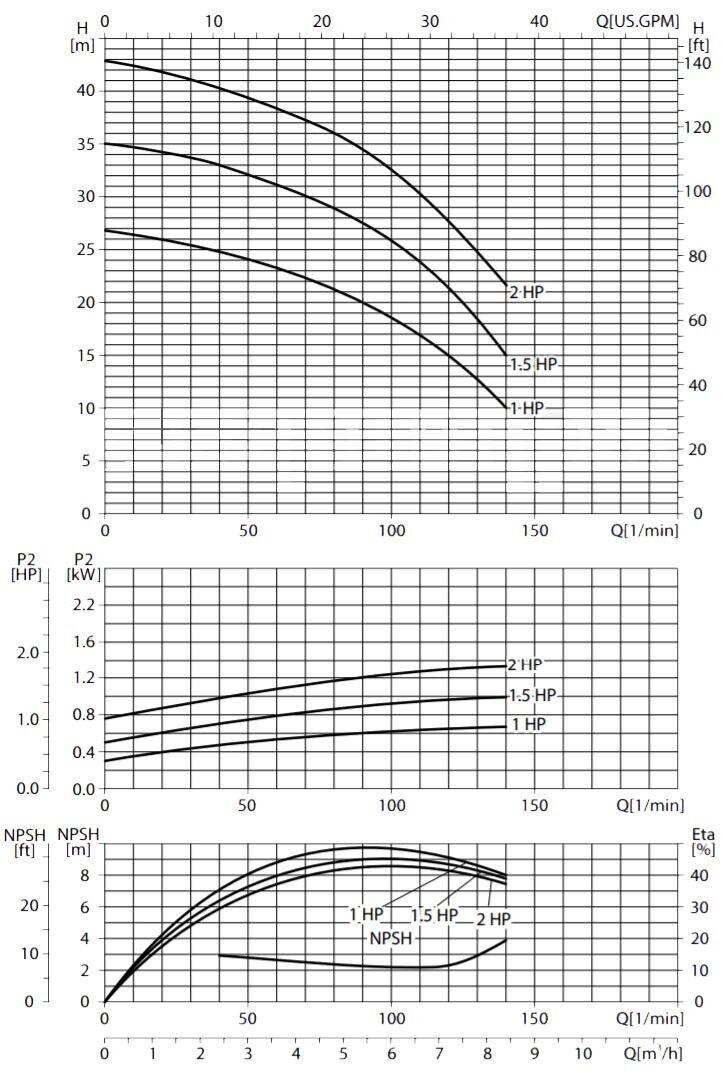

Curve: Please reference photos for curve chart (Highlighted Area)
Solids: No
Priming: Flooded Suction
Housing: Stainless Steel
Volute Material: Stainless Steel
Impeller: Stainless Steel
Buna-N: Seal Material and O Ring
Dimensions (L x W x H): 16.5" x 8.5" x 9.1"
Ship Weight: 45 lbs
Unit Weight: 60 lbs
Warranty: 1 Year
MADE IN THE USA
