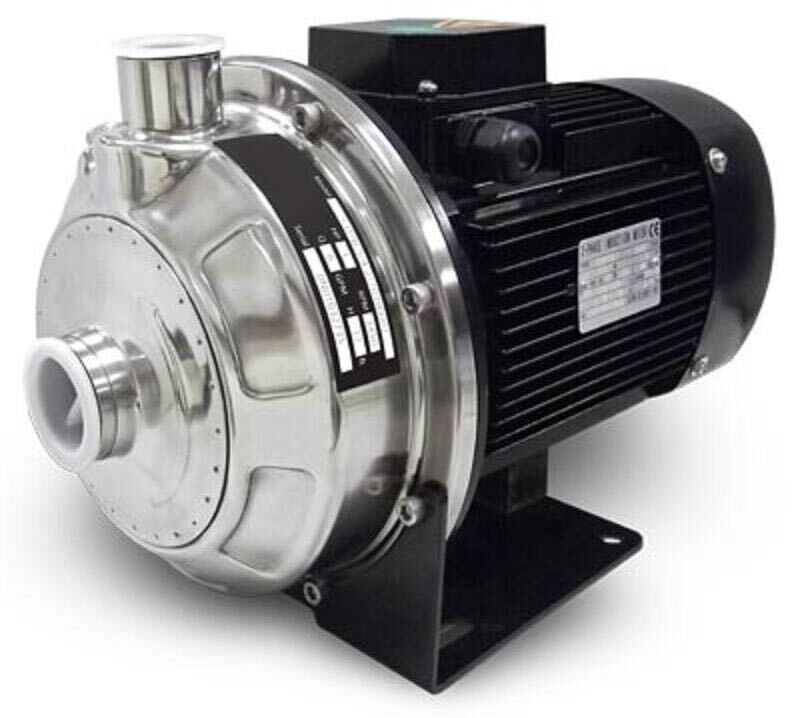

Centrifugal Pump - 1.5" x 1.25" - 92 GPM - 62ft Head - 230V - 3 Ph - 1.5 HP - SS
Centrifugal Pump - 1.5" x 1.25" - 92 GPM - 62ft Head - 230V - 3 Ph - 1.5 HP - SS
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT975
Condition: New
Description: Centrifugal Pump - 1.5" In x 1.25" Out - 92 GPM - 62 ft Head - 230 Volts - 3 Phase - 1.5 HP - SS
Description & Specification:
Application: End Suction
Pump Type: Centrifugal - Industrial/Commercial
Voltage: 230
Phase: 3
Horsepower: 1.5
Motor Type: TEFC
Inlet Diameter (in): 1.5"
Outlet Diameter (in): 1.25”
Port Type: FNPT, NPT
GPM: 92
Maximum Total Head (Static): 62 ft
Maximum PSI: 27
Working PSI: 133

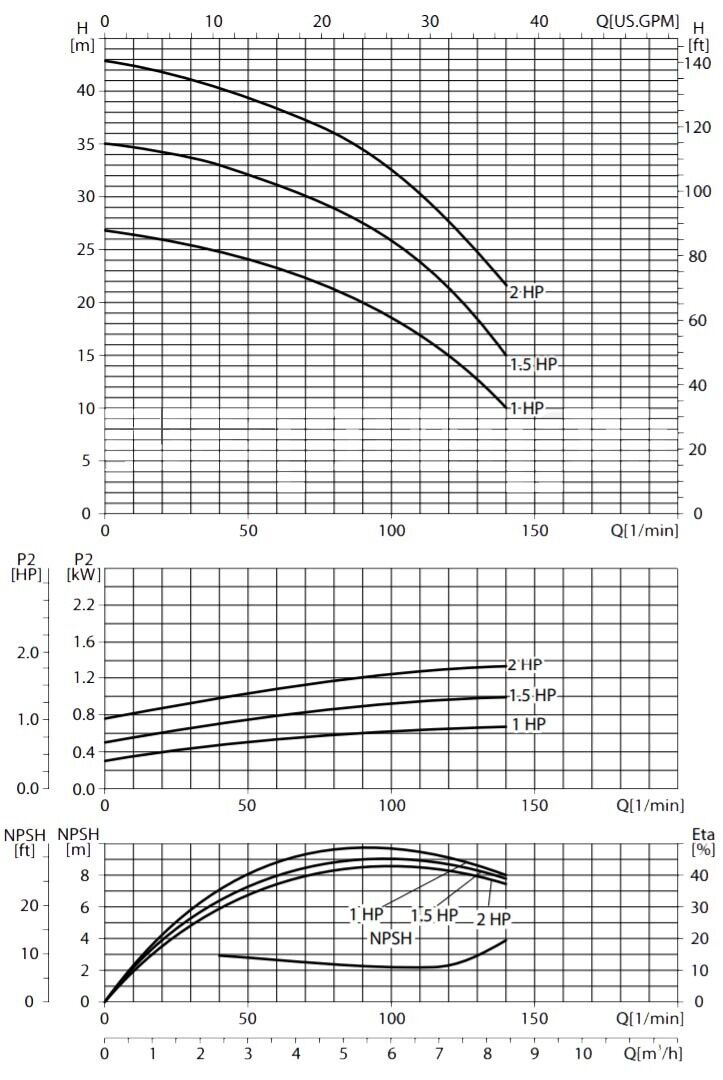

Curve: Please reference photos for curve chart (Highlighted Area)
Solids: No
Priming: Flooded Suction
Housing: Stainless Steel
Volute Material: Stainless Steel
Impeller: Stainless Steel
Buna-N: Seal Material and O Ring
Dimensions (L x W x H): 15" x 8.5" x 9"
Ship Weight: 60 lbs
Unit Weight: 45 lbs
Warranty: 1 Year
MADE IN THE USA
