Pacific Tundra

Centrifugal Pump - 1.5" x 1.25" - 92 GPM - 95 ft Head - 230 V - 3 Ph - 3 HP - SS

Centrifugal Pump - 1.5" x 1.25" - 92 GPM - 95 ft Head - 230 V - 3 Ph - 3 HP - SS

Regular price $2,171.37
Regular price Sale price $2,171.37
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT976

Condition: New

Description: Centrifugal Pump - 1.5" In x 1.25" Out - 92 GPM - 95 ft Head - 230 Volts - 3 Phase - 3 HP - SS

Description & Specification:

Application: End Suction

Pump Type: Centrifugal - Industrial/Commercial

Voltage: 230

Phase: 3

Horsepower: 3

Motor Type: TEFC

Inlet Diameter (in): 1.5"

Outlet Diameter (in): 1.25”

Port Type: FNPT, NPT

GPM: 92

Maximum Total Head (Static): 96 ft

Maximum PSI: 41

Working PSI: 135

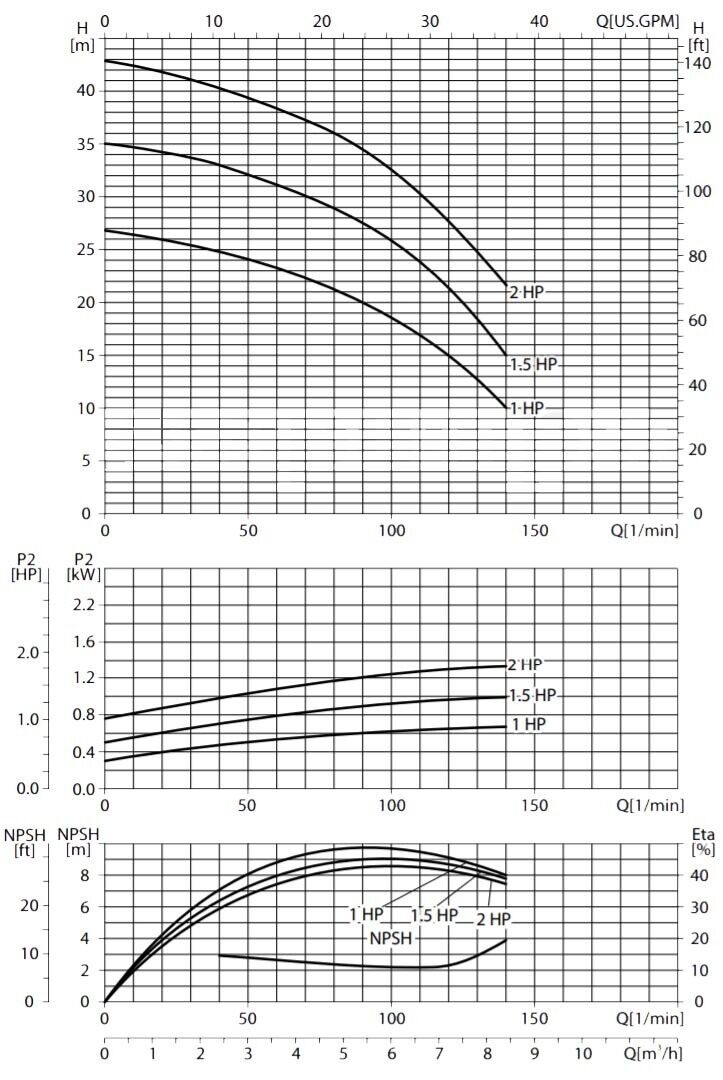

Curve: Please reference photos for curve chart (Highlighted Area)

Solids: No

Priming: Flooded Suction

Housing: Stainless Steel

Volute Material: Stainless Steel

Impeller: Stainless Steel

Buna-N: Seal Material and O Ring

Dimensions (L x W x H):

16.5" x 8.5" x 9"

Ship Weight: 70 lbs

Unit Weight: 52 lbs

Warranty: 1 Year

MADE IN THE USA
