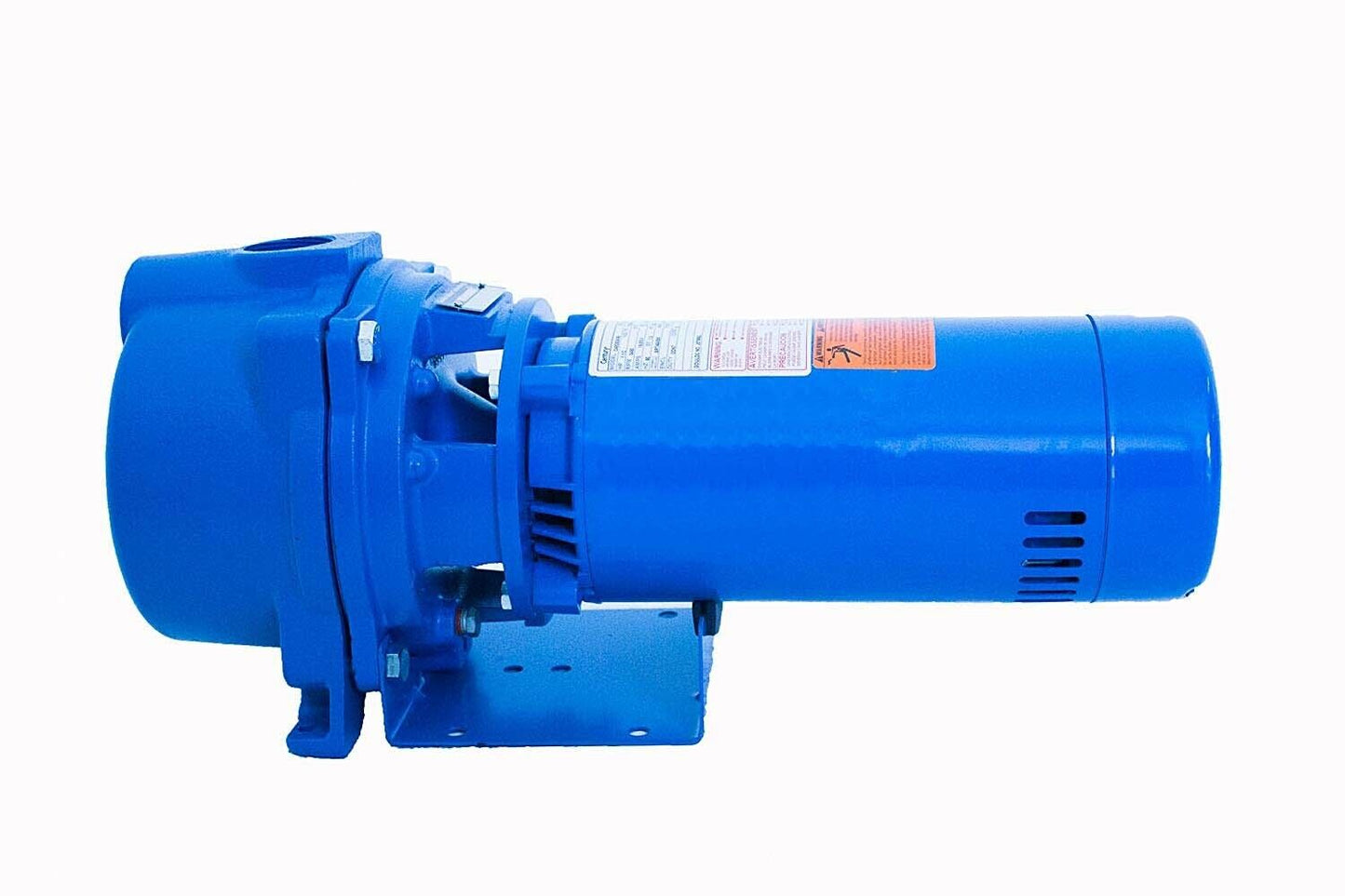

Centrifugal Pump - 110 GPM - 115/230 Volts - 1.5" Inlet / Out - 3/4 HP - 1 Phase
Centrifugal Pump - 110 GPM - 115/230 Volts - 1.5" Inlet / Out - 3/4 HP - 1 Phase
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT1154
Condition: New
Description: Centrifugal Pump - 110 GPM - 115/230 Volts - 1.5" Inlet / Outlet - 3/4 HP - 1 Ph
Features: Self priming - Perfect for a wide range of applications - Easily serviceable - Pullout back design allows for easy disassembly of pump without disturbing the pipe - Diaphragm prevents seals from running dry - Designed for continuous operation - Cast iron casing.
Description & Specification:
Once pump is primed, filled with water, it will reprise when the water level rises above the end of the suction pipe
Corrosion Resistant impeller
Electro-coated paint inside and outside
Cast Iron casing
Shaft Material: Stainless Steel
Housing Material: Cast Iron
Impeller Material: Glass Filled Noryl
Inlet and Discharge (in): 1-1/2"
Inlet and Discharge Connection Type: FNPT
Suction Draw Heat (ft): 128
Motor Type: ODP
RPM: 3500
Volts: 115/230
Phase: Single
HP: 3/4
GPM: 110
Product Dimensions (L x W x H): 20" x 8-1/4" x 9-1/4" (13-5/16" with Base)
Product Weight: 48 lbs
Shipping Dimensions (L x W x H): 22" x 11" x 12"
Shipping Weight: 50 lbs
