Pacific Tundra

Centrifugal Pump - 230 GPM - 3" Ports - 230 / 460 Volts - 3 Phase - 5 HP

Centrifugal Pump - 230 GPM - 3" Ports - 230 / 460 Volts - 3 Phase - 5 HP

Regular price $3,300.33
Regular price Sale price $3,300.33
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT836

Condition: New

Description:

End Suction Centrifugal Pump - 230 GPM - 3" Ports - 230/460 Volts - 3 Ph - 5 HP



Description & Specification:

Light weight and chemical resistant

Perfect for servicing water, salt water, waste water, mild acids and bases

Viton mechanical seal, check valve, gaskets, and O-ring

Volts: 230/460

Phase: 3

HP: 5

GPM: 230

PSI: 30

RPM: 3,450

Motor: TEFC

Inlet Diameter (in): 3" (77 mm)

Outlet Diameter (in): 3 " (77 mm)

Total Maximum Head (ft): 70

Shaft Material: Polymer Non-Metallic

Housing Material: Glass Reinforced Polyester

Impeller Material: Polyester

Self-Priming: No

Solid Handling: No

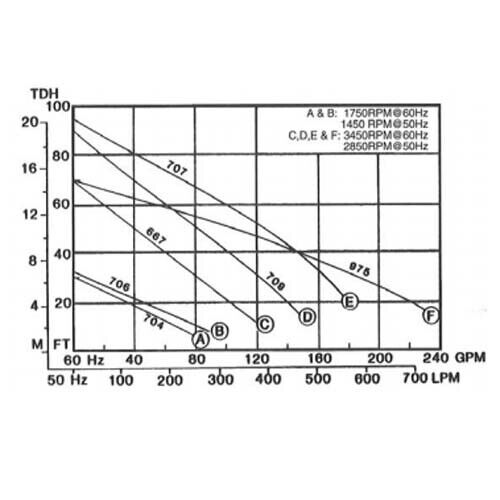

Curve Code Reference: F (Please Reference Photos)

Weight (lbs): 105

Warranty: 1 Year
