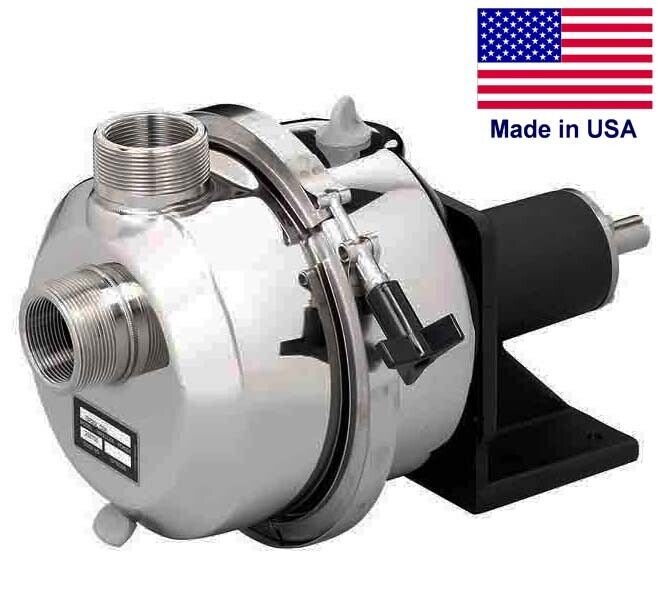

Centrifugal Water Pump - 180 GPM - 1.5" FBSP & 2" MBSP - Self Priming - Potable
Centrifugal Water Pump - 180 GPM - 1.5" FBSP & 2" MBSP - Self Priming - Potable
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTIPW2BWL
Condition: New
Description: Centrifugal Pump - 180 GPM - 1.5" Female Port - 2" Male Port - Self Priming
Features: Built for Potable (drinking water) applications - Pedestal mounted to be used with your prefered motor or engine - Engine and motor are NOT included - Requires an engine or motor with a 3/4" shaft diameter - CARB and EPA compliant - Made in the USA.
Flows: 4500 GPH (75 GPM) to 7800 GPH (130 GPM)
PSI Range: 23 to 25
Motor Sizes: 1 Hp to 2 Hp
Voltage/Phase: 115/230V, 1 Phase, 208-230/460V, 3 Phase and 230/460V, 3 Phase
Suction/Discharge Ports: 1.5" to 2"
Description & Specification:
Application: Potable (Drinking Water)
Pump Type: Centrifugal - Industrial/Commercial
Inlet Diameter (in): 1.5" Female and 2" Male
Outlet Diameter (in): 1.5" Female and 2" Male
Port Type: Dual Port BSP
GPM: 180
Maximum Total Head (Static): 78 ft
Maximum PSI: 34
Maximum Suction Lift (Sea Level): 20
Solids: No
Housing: Stainless Steel
Pump Fittings: Stainless Steel
Volute Material: Polypropylene
Impeller: Polypropylene
Impeller Number: 1
EPDM: Mechanical Seal Material, Check Valve, and Shaft Sleeve
Shaft Keyway Slot Width (in): 0.1875"
Shaft Diameter (in): 3/4"
Note: We carry a full line of accessories including hoses, strainers, seal kits, wheel and dolly kits and more - Please Inquire
Weight (lbs): 27
Warranty: 1 Year
MADE IN THE USA
