Pacific Tundra

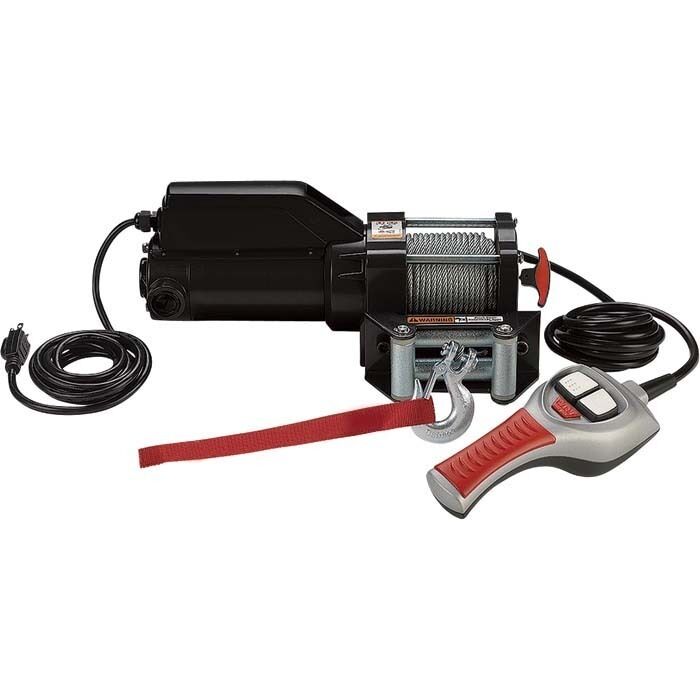

Electric AC Winch & Remote Control - 1500 Lbs - 120 Volts - 261:1 - Freespooling

Electric AC Winch & Remote Control - 1500 Lbs - 120 Volts - 261:1 - Freespooling

Regular price $970.85
Regular price Sale price $970.85
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT27645

Condition: New

Description: Electric AC Winch & Remote Control - 1500 Lbs - 120 Volts - 261:1 - Free spooling

Features: Wired Remote is ideal for fixed-mount pulling applications. Great in the shop, garage or anywhere 120V AC power is available. Features a powerful 0.8 HP permanent magnet motor with 1,500 lbs single line pulling capacity.

261:1 gear ratio with free spooling clutch and self-braking transmission

Vented motor end cap

Externally serviceable brushes for improved motor cooling, extended run time and extended motor life

Equipped with 10 ft power cord

Includes 43' x 3/16" diameter galvanized steel cable

Advanced sealed pendant remote with 10" lead for flexibility.





Description & Specification:

Volts: 120

HP: 0.8

Line Pull (lbs.): 1,500

Run Time: 30 min.

Cooling: 15 min.

Line Speed (FPM): 9

Gear Train: Industrial planetary

Gear Ratio: 261:1

Clutch: Freespooling

Braking: Self

Switching Method: Pendant remote

Remote Length (ft): 10

Rope Type: Galvanized steel cable

Rope Size L x diameter (ft x in): 43 x 3/16

Fairlead Type: Roller

Power Cord (ft): 10

Mounting Hardware Included: Yes

Mounting Bolt Pattern L x W (in.): 3.1 x 2.5

Dimensions L x W x H (in.): 11 x 8 x 18 3/4

Ship Weight: 28.0 lbs
