FREE SHIPPING OFFER
|
|
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
|
|
Model Number:
|
PTWBB202128
|
|
Condition:
|
New
|
|
Description:
|

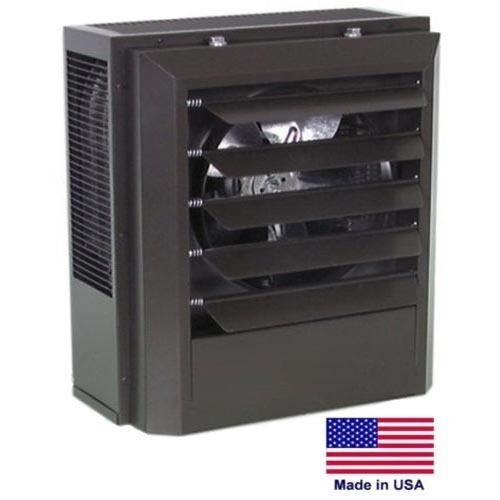

ELECTRIC HEATER Commercial/Industrial - 480 Volts - 3 Phase - 5 kW - 17,100 BTU
|
|
Features:
|
17,100 BTU - 480V - 3 Phase - 5,000 Watts - Amp Draw: 6 - Commercial Grade Steel Housing - Remote Thermostat Included - cULus Listed - Made in the USA
|
|
Contact Us:
|
Email: eBay mail or our customer service email
|
See similar items in our eBay Store
This Series of Electric Heaters Come in the Following Configurations:
BTU Ratings: 17,100 thru 170,600
Wattages: 2,800 thru 50,000
Voltages: 115/120V, 208V, 208/240V, 277V and 480V
Phases: 1 & 3
Amp Draws: 6 thru 139
Questions? Give our Customer Service Department a Call Toll Free at
Description & Specification:
- Industrial/Commercial Electric Unit Heater with Thermostat
- Our USA made electric unit heaters are designed for most commercial industrial applications that are not considered hazardous location. This series of electric heaters can be used in dirty and dusty environments and in high altitudes applications up to 13,000 feet. Use primary, supplementary or auxiliary heat source.
- Features: heavy duty die-formed steel housing, mounts horizontally or vertically, adjustable louvers, aluminum-finned copper clad sheath heating element, advanced pull-through air flow design draws air across heating element for even air distribution and cooler heating element operation, 2 speed fan selector switch on most models in this series, built-in automatic control delays fan action until heating element is warm, when thermostat temperature is reached fan continues to operate until heating element is cool, commercial grade venturi outlet to meet added throw required in vertical mounted position, large dynamically balanced fan blades provide maximum air flow with minimum turbulence and noise
- Heater Type: Electric - Fan Forced - Commercial/Industrial
- Voltage: 480V
- Phase: 3
- Wattage: 5,000 (5 kW)
- Amp Draw: 6
- BTU Rating: 17,100
- Fan CFM: 350
- Air Velocity: 800 FPM
- Thermostat - Included - Remote
- Listings & Approvals: cULus Listed
-
Ships Assembled
- Optional Item: Model PTWBB202024 - 2 Stage Thermostat Kit - for Horizontal/Downflow Models (Please inquire: Toll Free )
- Optional Item: Model PTWBB30851376 - Mounting Bracket - Quick-Sling, Swivel U-Mount with H-Bracket (Please inquire: Toll Free )
- Optional Item: Model PTWBB30851382 - Mounting Bracket - Quick-Sling, Swivel Flush Mount with H-Bracket (Please inquire: Toll Free )
- NOTE: PLEASE ALLOW 2 WEEKS FOR DELIVERY AS WE BUILD THIS HEATER TO ORDER
- Overall Dimensions: 16" W x 8.5" D x 14" H
- 5 Year Warranty on Heating Element and 1 Year Warranty on Remainder of Unit (Includes Parts & Labor)
- Made in the U.S.A.
|
