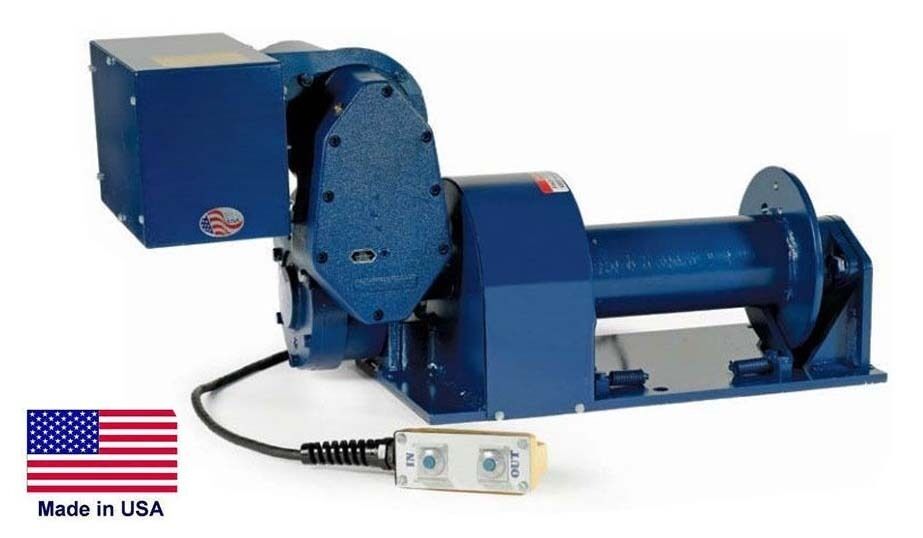

Electric HOIST & WINCH - 6,000 Lb Capacity - 230 Volts - Commercial & Industrial

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTAC36B230

Condition: New

Description: Electric HOIST & WINCH - 6,000 Lb Capacity - 230 Volts - Commercial & Industrial

This Series of Commercial/Industrial Hoists & Winches are Available in the Following Configurations:

Model PTAC36B115 - 115V or 230V - 6,000 Lb Capacity Double Line / 3,000 Lb Capacity Single Line

Model PT100AB - 115V - 2,000 Lb Capacity Double Line / 1,000 Lb Capacity Single Line

Model PT1012 - 12 Volt - 2,500 Lb Capacity Double Line / 1,250 Lb Capacity Single Line

Model PTLD100AB - 115V or 230V - 20,000 Lb Rolling Load Capacity / 800 Lb Line Pull

Model PTAIR1000 - Pneumatic - 2,500 Lb Capacity Double Line / 1,250 Lb Capacity Single Line

Model PTHY1D - Hydraulic - 3,000 Lb Capacity Double Line / 1,500 Lb Capacity Single Line

Model PT800AB - 115V or 230V - 2,000 Lb Capacity Double Line / 1,000 Lb Capacity Single Line

Model PT300AB - 115V or 230V - 1,600 Lb Capacity Double Line / 800 Lb Capacity Single Line

Model PT3012 - 12 Volt - 1,600 Lb Capacity Double Line / 800 Lb Capacity Single Line

Model PT3512 - 12 Volt - 1,600 Lb Capacity Double Line / 800 Lb Capacity Single Line

Model PT520 - 115V or 230V - 3,000 Lb Capacity Double Line / 1,500 Lb Capacity Single Line

Questions?  Give Our Customer Service Department a Call Toll Free at 888-257-8607

Description & Specification:

• Industrial/Commercial Heavy Duty 3,000/6,000 Capacity - 230 Volt Wire Rope Hoist and Winch-in-One

• Ideal for manufacturing and assembly facilities, elevator equipment installation, automotive repair shops, farms and similar applications where there is ready access to a 230V power source

• Our Model PTAC36 Series can handle the big jobs: it can move equipment, lift motors or heavy apparatus, or any load up to 6000 Lbs with double-line rigging (3,000 Lbs with single line)

• This industrial hoist features reliability and long life - from mounting to motor to gear system.  Everything about this winch-hoist is dependable. Our hoists undergo thorough testing before they leave the factory, and each hoist is backed by our warranty with individualized service, and when needed, we handle repair and component replacement quickly and efficiently

• Safety is built-in - the PTAC36 Series protects its operator, not only through unsurpassed engineering, but also with remote hand controls. The switching is done through a 24 volt transformer and the two button hand switch on a 10 foot cord which allows the operator to keep an eye on the load at all times

• Features: trifecta system brake motor with triple brake system for instant stopping, worm gear reduction for positive load holding, compact heavy duty construction, low voltage 10 ft pendant remote control, full power reversible, cable tensioner for cable tracking, heavy duty base drilled for six 1/2" bolts (9/16" mounting holes) with no welding required, fully sealed aluminum housings, oil bathed precision-cut gears, frictionless bearings,

• Winch/Hoist Type: AC Electric - Commercial/Industrial

• Voltage: 230V

• Phase: 1

• Motor: 1.25 Hp Brake Disc Dynamic

• Capacity Single Line: 3,000 Lbs

• Capacity Double Line: 6,000 Lbs

• Speed: Single

• Drum Storage with 1/4" Wire Rope: 250 Ft

• Drum Storage with 5/16" Wire Rope: 160 Ft

• Drum Storage with 3/8" Wire Rope: 110 Ft

• No Load Drum Speed: 11 RPM

• No Load FPM: 11

• Single Line Lift Speed at 1,000 Lbs: 9 FPM

• Single Line Lift Speed at 3,000 Lbs: 7.25 FPM

• Double Line Lift Speed at 6,000 Lbs: 3.5 FPM

• Note: all line speeds above are based on one layer of cable on drum

• Note: wire rope is optional (see Optional Items below)

• Lift Speed @ 3,000 Lbs Single Line: 7.25 FPM

• Lift Speed @ 6,000 Lbs Double Line: 3.5 FPM

• Gear System: 1430:1 gear ratio with double reduction gear drive.  First reduction combines spur gears with hardened steel worm and forged bronze worm gear.  Second reduction uses hardened heavy duty spur gears

• Brake: Triple Brake System for Instant Stopping

• Remote Control: 10 Ft - Push Button

• Power Cord: 15 Ft

• Clutch: N/A - Available as option if using this unit as a winch (see Optional Items below)

• Housing: Aluminum

• Frame: Steel

• Protection: Thermal overload protection

• Lubrication: Oil bath gear

• Duty Cycle at Full Load: 25%

• Mounting: 3/8" base drilled for six 1/2" bolts (9/16" mounting holes)

• Optional Item: PTAC36C - Clutch - Allows you to use this winch as a hoist  (please inquire Toll Free at 888-257-8607)

• Optional Item: Model PTUSDM - Upside Down Mounting Kit - Allows you to mount this hoist upside down for use as a hoist (please inquire Toll Free at 888-257-8607)

• Optional Item: Model PTDD - Divided Drum (please inquire Toll Free at 888-257-8607)

• Optional Item: Model PT14250 - 250 Ft of 1/4" Wire Rope - Factory Installed on Unit (please inquire Toll Free at 888-257-8607)

• Optional Item: Model PT516160 - 160 Ft of 5/16" Wire Rope - Factory Installed on Unit (please inquire Toll Free at 888-257-8607)

• Optional Item: Model PT38110 - 110 Ft of 3/8" Wire Rope - Factory Installed on Unit (please inquire Toll Free at 888-257-8607)

• Overall Dimensions: 27.25" L x 15" W x 12.7" H

• Please allow 2 weeks for delivery as we build this unit to order

• Ship Weight: 131 Lbs

• 1 Year Warranty (Includes Parts & Labor)

• Made in the U.S.A.
