Electric Wall Heater - Forced Fan - 51,195 BTU - 208 Volts - 3 Phase - 1100 CFM
Electric Wall Heater - Forced Fan - 51,195 BTU - 208 Volts - 3 Phase - 1100 CFM
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWGB45373
Condition: New
Description: Electric Wall HEATER - Forced Fan - 208 Volts - 3 Phase - 51,195 BTU - 1,500 CFM
Features: Light weight - Belt Driven - Vertical or Horizontal mounting options - Adjustable motor mount and variable motor sheave allows for easy RPM/CFM adjustments - Arrives partially assembled - Motor and drive pack are shipped loose - Ideal for warehouses, factories, garages, greenhouses, barns, laundry and boiler rooms.
This Series of Electric Heaters is Available in the Following Configurations:
Amps: 18.1 to 41.7
Volts: 208V, 240V and 480V
Phase: Single & 3 Phase
Description & Specification:
Included: Heater, Hardware, and Bracket
BTU: 51,195
CFM: 1,100
Heat Temperature: 40 to 100 F
Heat Range (ft): 35
Amps: 42
Volts: 208
Phase: 3
kW: 15
Speed: 1
Wiring: Direct

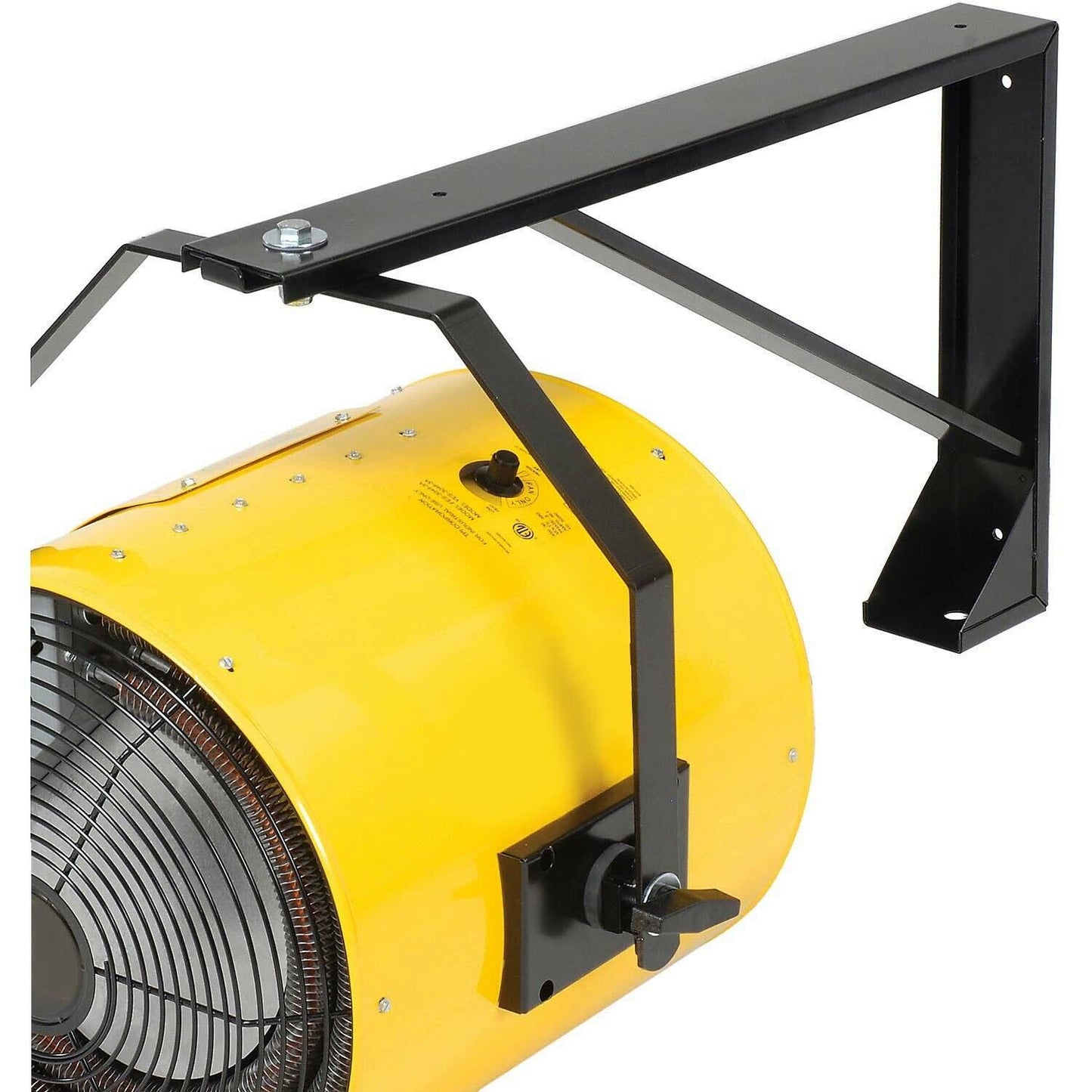

Mounting: Bracket Allows for Multiple Positions - Please reference the photos
Material: Steel
Finish: Powder Coat
Color: Yellow
Dimensions (L x W x H): 38" x 23" x 23"
Weight (lbs): 60
