ELECTRIC WINCH - 10,000 lbs Capacity - Dual 7.2 HP Motors - 3 Stage 108:1 Ratio
ELECTRIC WINCH - 10,000 lbs Capacity - Dual 7.2 HP Motors - 3 Stage 108:1 Ratio
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT10P
Condition: New
Description: ELECTRIC WINCH - 10,000 lbs Capacity - Dual 7.2 HP Motors - 3 Stage 108:1 Ratio
Features: 10,000 lbs pull capacity - Dual 7.2 hp sealed motors - 3 stage planetary gearbox - Low draw of 140 amps (at no load) - Commercial duty design - LIMITED LIFETIME WARRANTY WITH 3 YEAR ON ELECTRICAL.
Description & Specification:

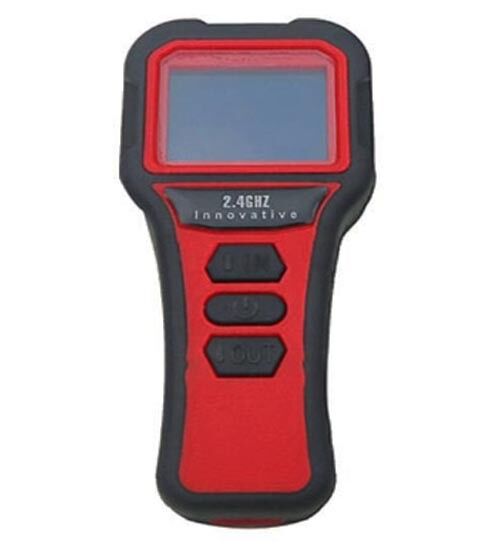

Includes: 3/8" x 125 ft (9mm x 38m) Synthetic Rope - Wireless remote with LCD Display - Heavy Duty Remote Control - Silver Aluminum Fairlead - Heavy Duty Battery Leads - Stainless Steel Mounting hardware - 12 Ton Competition Hook
Features a Multi stop 10% ratchet brake that allows for zero drag when returning the cable. This is situated away from the drum to prevent any heat damage to the rope
Sealed Waterproof Contactor
Sealed 3 Stage Planetary Gears
No load speed of 66 ft/min (20m/min)
Output: 2.7kW / 3.6hp
Input: 5.4kW / 7.2hp
Rated Line Pull: 10,000 lbs
Gear Reduction: 108:1
Cable (Dia. X L): 3/8” x 85’
Drum Size (Dia x L): 2.8” x 8.4”
Mounting Bolt Pattern: 10” x 4.5”
Synthetic Rope Weight: 116.8 lbs
Wire Rope: 136.5 lbs
Overall Dimensions (L x W x H): 18.9” x 10.3” x 14.0”
Overall Weight (lbs): 110 lbs
Warranty: Limited Lifetime with 3 Years on Electric
|
Line Pull |
Line Speed |
Amp draw |
|
|
|
|
|
0 |
66 (20) |
140 |
|
4000 (1816) |
19.7 (6.0) |
400 |
|
6000 (2722) |
16.7 (5.1) |
560 |
|
8000 (3629) |
13.1 (4.0) |
690 |
|
10000 (4536) |
10.5 (3.2) |
790 |
|
Layer of WIre Rope |
Rated Line Pull lbs |
Total Rope on the Drum ft |
|
1 |
10,000 |
18.4 |
|
2 |
8,153 |
41.0 |
|
3 |
6,881 |
68.9 |
|
4 |
5,953 |
101.0 |
