EXHAUST FAN Commercial - Belt Drive - 48" - 115/230V - 1 Ph - 1/2 Hp 17,100 CFM

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTV4813TU

Condition: New

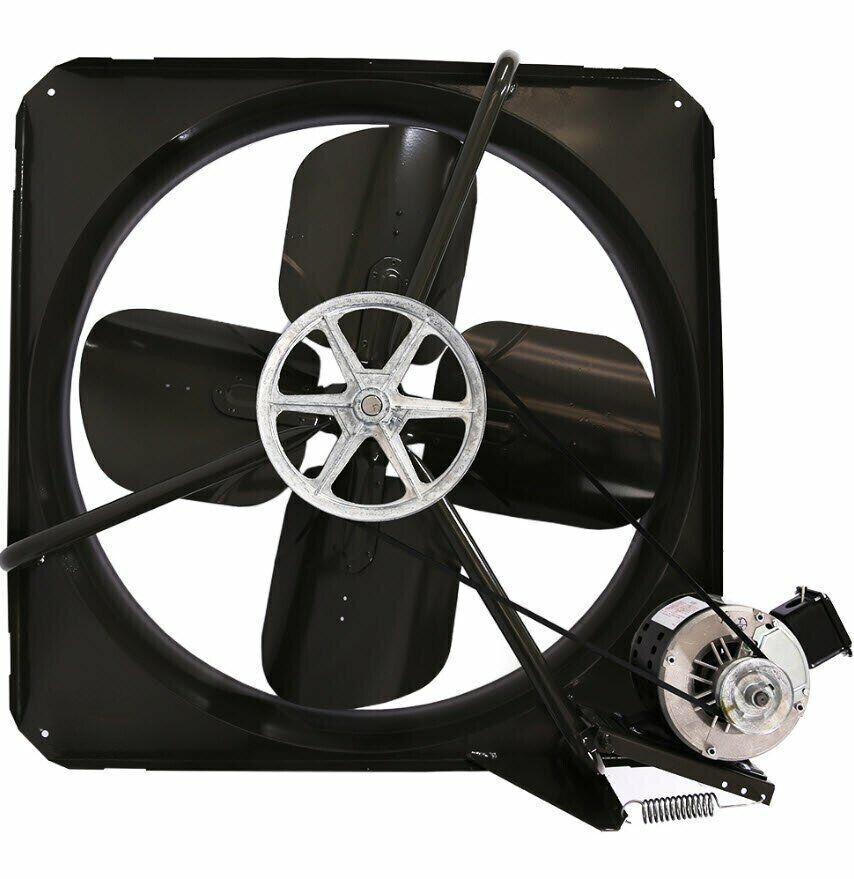

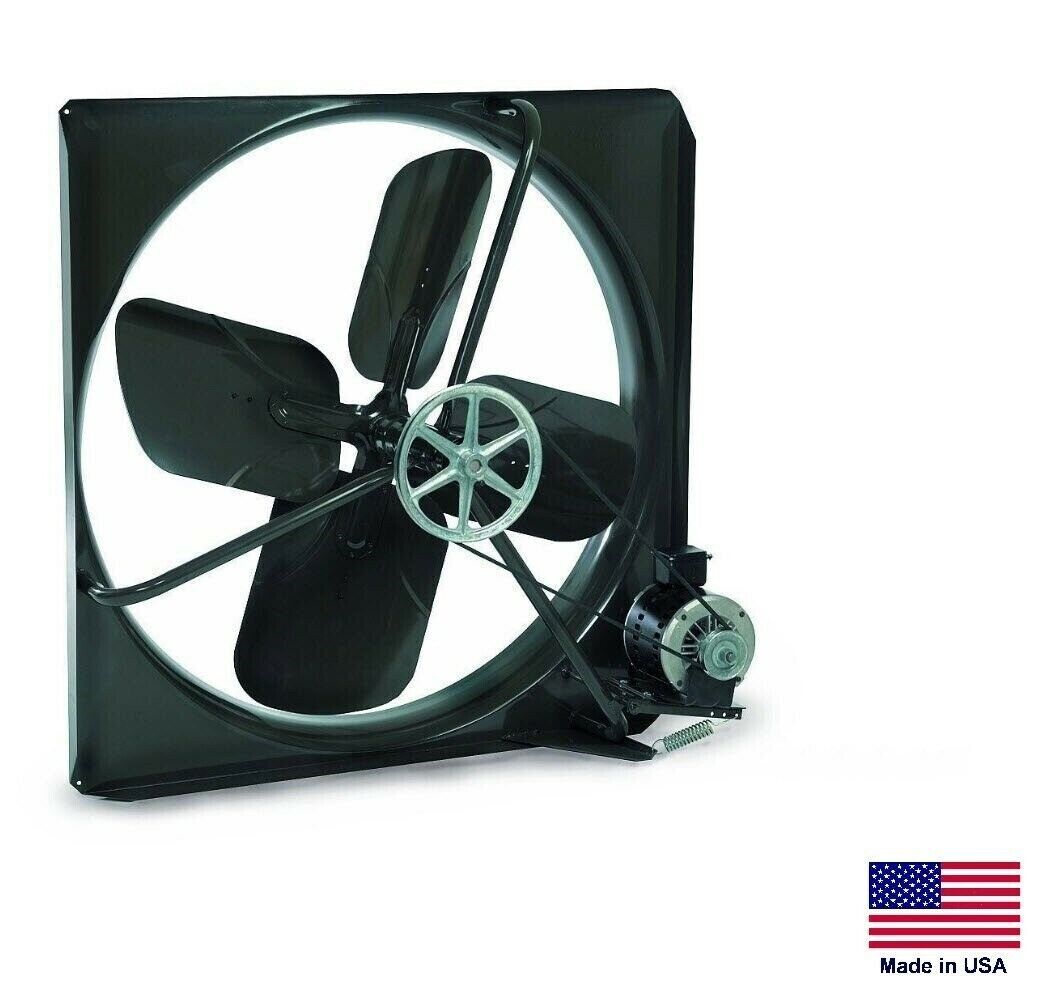

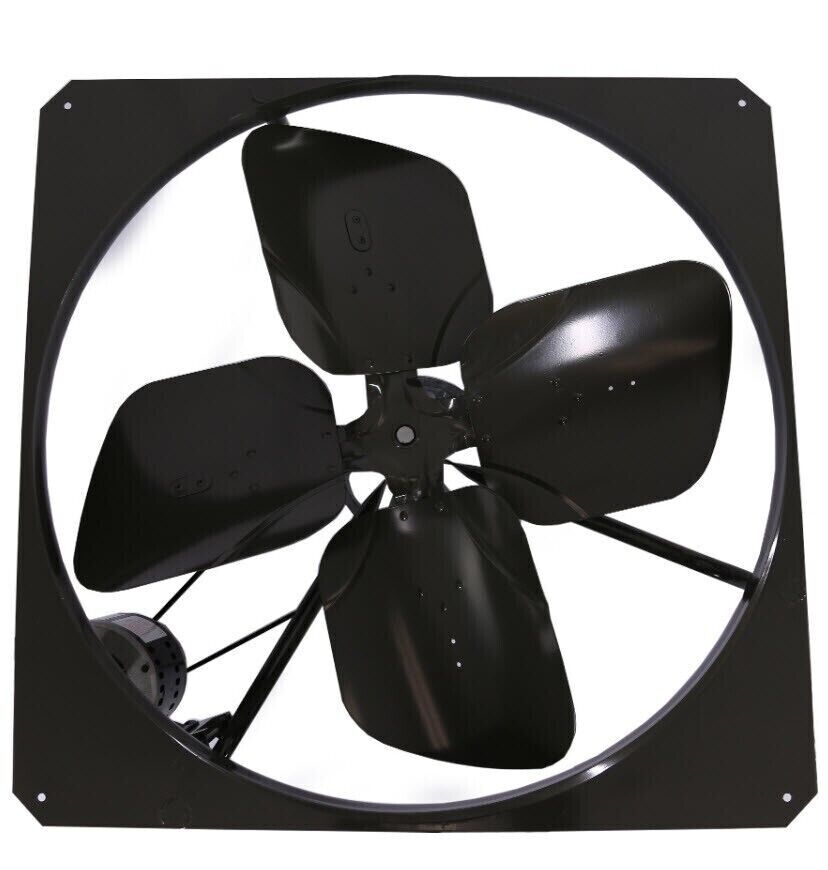

Description: EXHAUST FAN Commercial - Belt Drive - 48" - 115/230V - 1 Ph - 1/2 Hp 17,100 CFM

SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION

THIS LINE OF COMMERCIAL EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:

Sizes Range: 24" to 48"

Motors from 1/3 to 3/4 Hp - Single and Two Speed Models Available

Voltage Range: 115V, 115/230V and 230/460V

CFM Range: 3,900 to 18,100

All sizes of this series of exhaust fans are available in hazardous location / explosion proof configurations - please inquire

All sizes of this series are available in reverse configurations for use as intake fans - please inquire

Description & Specifications:

• Commercial Heavy Duty Exhaust Fan
• Our USA made commercial exhaust fans provide continuous duty operation capabilities
• Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings where air movement is needed to control condensation, remove stagnant air and provide fresh air flow
• Features: Heavy duty all welded steel construction, deep pitch blades for maximum air flow, rolled venturi for improved air flow, automatic belt tensioner, two speed motors available on models through 1/2 Hp in single phase models only, commercial grade polyester powder coat finish, Made in the USA
• Fan Type: Exhaust - Belt Driven - Commercial
• Blade Diameter: 48"
• Drive System: Belt
• Voltage: 115/230V
• Phase: 1
• Horsepower: 1/2
• Amp Draw @ 115V: 11
• Amp Draw @ 230V: 5.6
• CFM: 17,100
• Motor Type: TEFC (ODP motors available)
• Motor Speeds: 1
• Power Cord: N/A - Hardwire Required
• Belt Tensioning: Automatic
• Optional Item: Model PTIWS48 - Shutters/Louvers - please inquire
• Optional Item: Model PTVG48 - Fan/Grill Guard - Mounts on Housing Behind Motor - please inquire
• Optional Item: Model PTRH48 - Rain Hood - please inquire
• Optional Item: Model PT2SPDM- 2 Speed Motor - please inquire

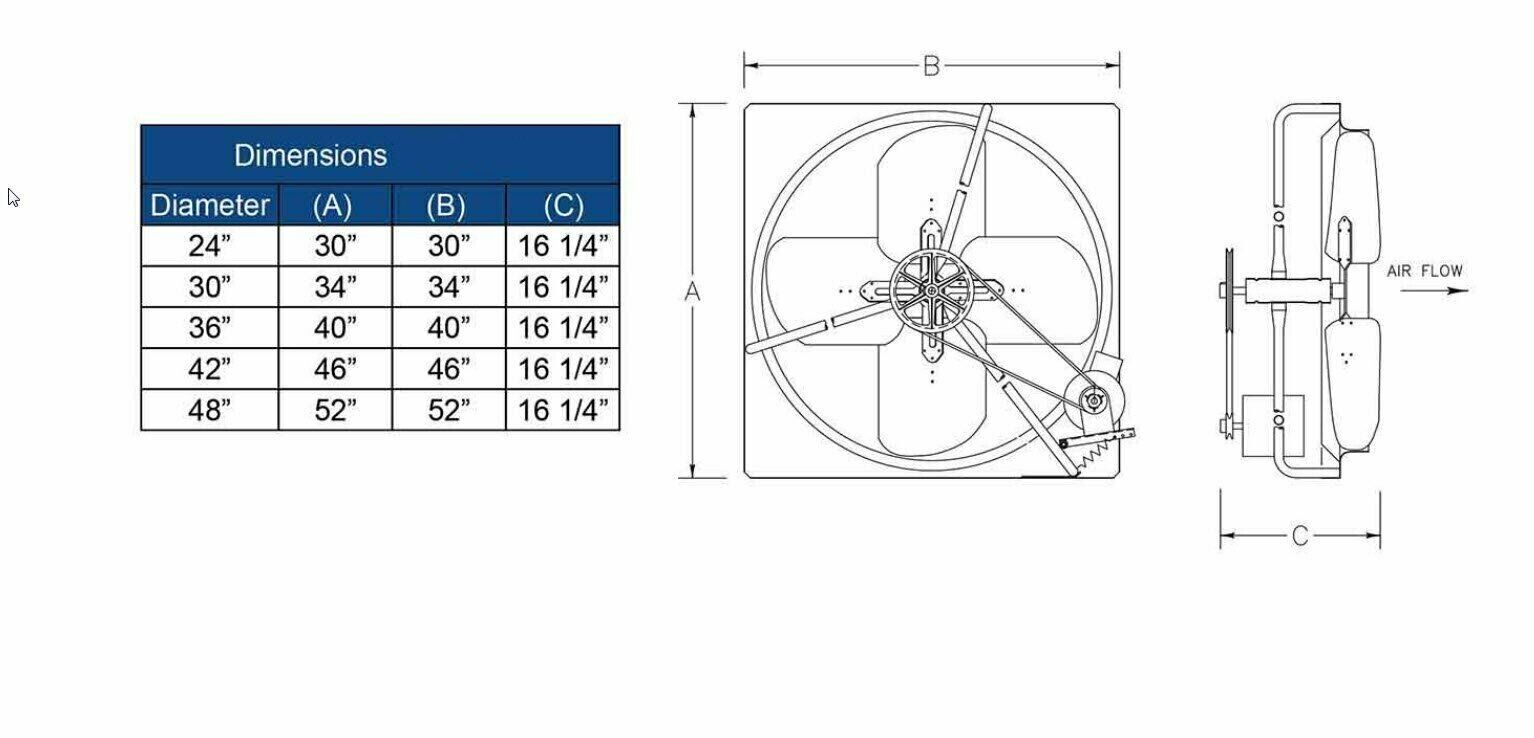

• Overall Dimensions: 52" W x 52" H x 16.25" D
• Please allow 2 weeks for delivery - we build this fan to order
• Ship Weight: 106 Lbs
• 1 Year Warranty (Includes Parts & Labor)
• Made in the USA

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*
