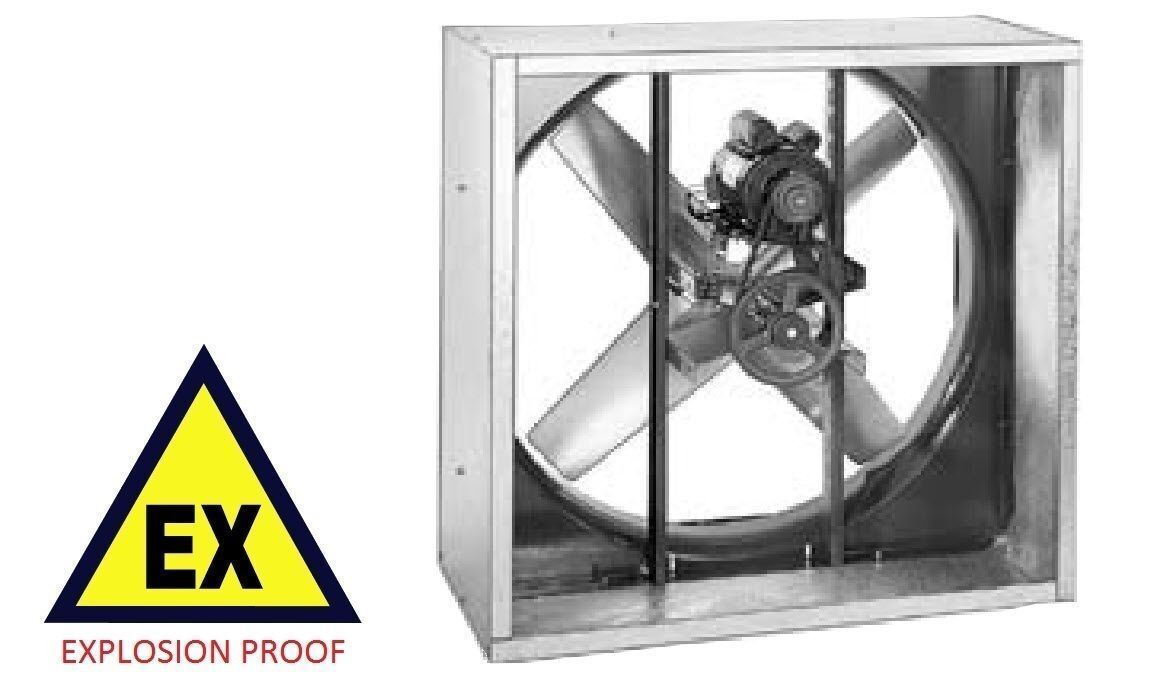

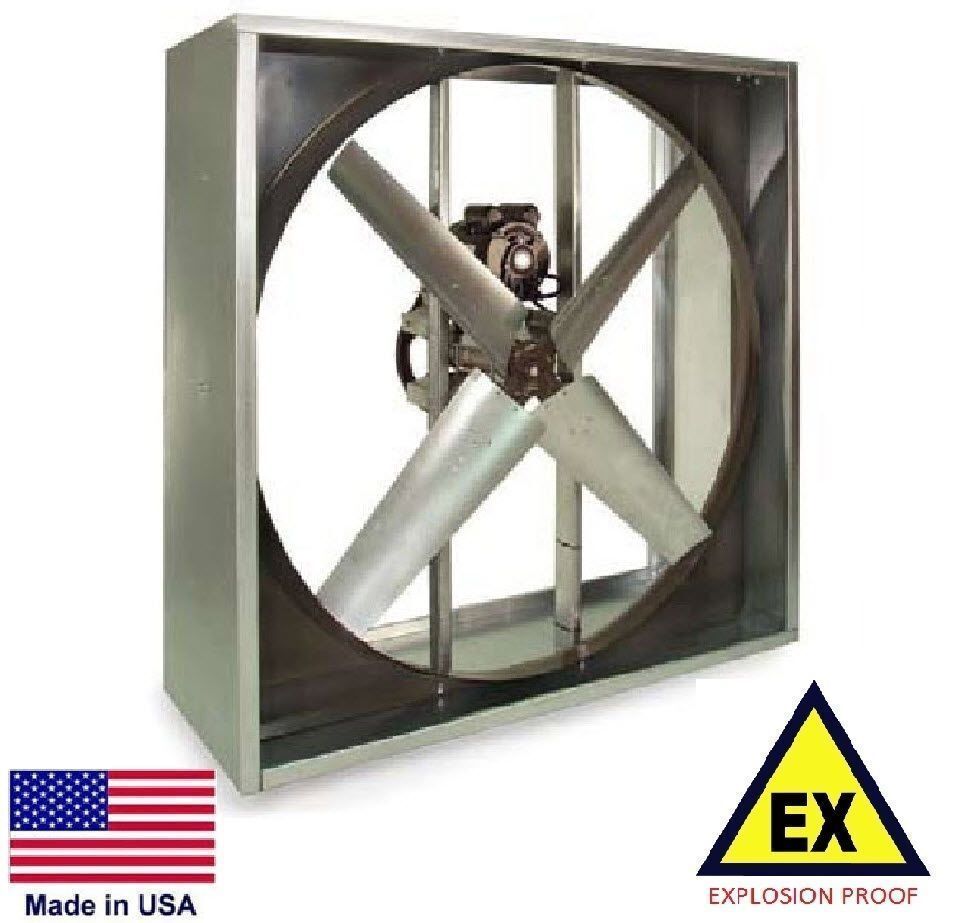

EXHAUST FAN - Explosion Proof - Belt Drive - 48" - 115/230V - 1.5 Hp 21,500 CFM

EXHAUST FAN - Explosion Proof - Belt Drive - 48" - 115/230V - 1.5 Hp 21,500 CFM

$8,776.61
$8,776.61
Sale Sold out
start_elivehelp_btncode
end_elivehelp_btncode



FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



PTVI4816HLU



Condition:



New



Description:


EXHAUST FAN - Explosion Proof - Belt Drive - 48" - 115/230V - 1.5 Hp 21,500 CFM





 Features:



48" Blade Diameter - 115/230 Volt - 1 Phase - 1.5 Hp - 15/7.5 Amps - 21,500 CFM - Belt Drive - Hazardous Location/Explosion Proof Configuration Includes Single Speed Explosion Proof Motor and Aluminum Spark-Resistant Fan Blades - Optional Shutters (Louvers), Grill Guards and Rain Hoods Available (see Optional Items below)





Contact Us:



Email: eBay mail or our customer service email





See similar items in our eBay Store

THIS LINE OF INDUSTRIAL EXPLOSION PROOF EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:

Sizes range between 24" to 60"

Motors from 1/2 to 5 Hp - Single and 2 Speed in some models

Voltage Range: 115/230V, 230/460V

Single & Three Phase

CFM Ranges from 4,190 to 43,500

All sizes of this series of exhaust fans are available in standard (non-explosion proof) configurations (please inquire Toll Free at )

All sizes of this series are available in reverse configurations for use as intake fans (please inquire Toll Free at )



Description & Specification:

  • Industrial Heavy Duty Explosion Proof/Hazardous Location 48" Exhaust Fan
  • Our line of Industrial Explosion Proof/Hazardous Location Exhaust Fans provide continuous duty operation capabilities
  • Recommeded for use in manufacturing facilities, assembly plants, automotive industries and similar settings where air movement is needed to remove air contaminated with materials classified as hazardous or have explosion potential and provide fresh air flow
  • Features an industrial continuous duty explosion proof motor and aluminum spark-resistant blades.  Note: wiring must be in accordance with local, state and national codes and be performed by a qualified electrician.  We recommend a licensed and insured electrician that is fully educated on the application at the time of installation
  • Fan Type: Exhaust - Explosion Proof/Hazardous Location - Industrial/Commercial
  • Blade Diameter: 48"
  • Drive System: Belt
  • Horsepower: 1.5 Hp
  • Motor Type: Explosion Proof/Hazardous Location (Class I, Div I, Group D and Class II, Div I, Groups F & G)
  • Voltage: 115/230V
  • Phase: 1
  • Amp Draw @ 115V: 15
  • Amp Draw @ 230V: 7.5
  • Motor Speeds: 1
  • CFM: 21,500
  • Power Cord: N/A - This is a hardwire fan.  We recommend that you contact a licensed and insured electrician to run power to this fan
  • Optional Item: Model PTIWS - Shutters/Louvers (please inquire Toll Free at )
  • Optional Item: Model PTVG - Grill/Guard - Mounts on Housing Behind Motor (please inquire Toll Free at )
  • Optional Item: Model PTRH - Rain Hood (please inquire Toll Free at )
  • Overall Dimensions: 52.25" H x 52.25" W x 20" D
  • Please allow 2 weeks for delivery - we build our fans to order
  • Ship Weight: 210 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the U.S.A.
