Pacific Tundra

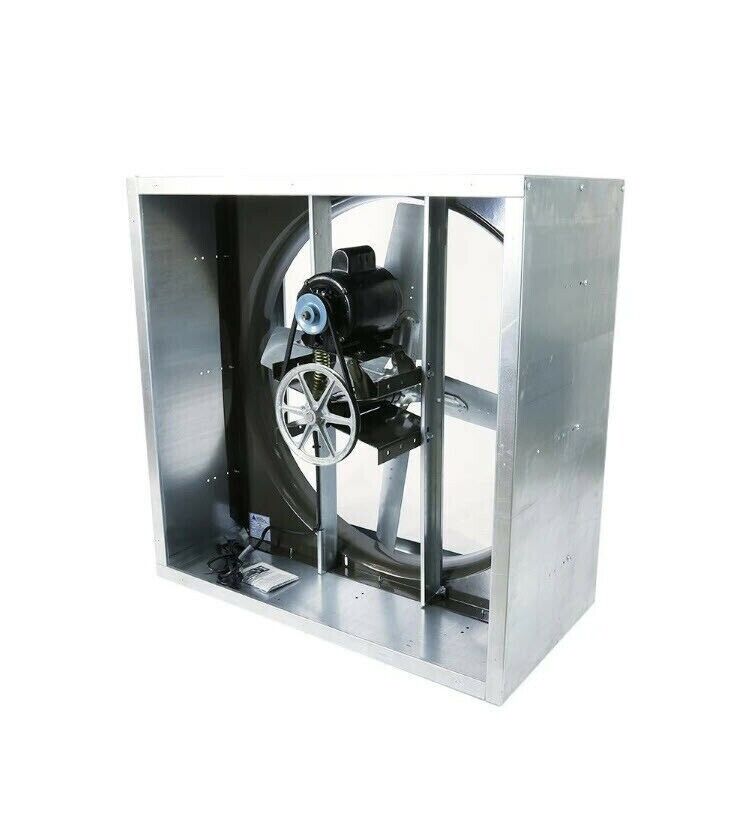

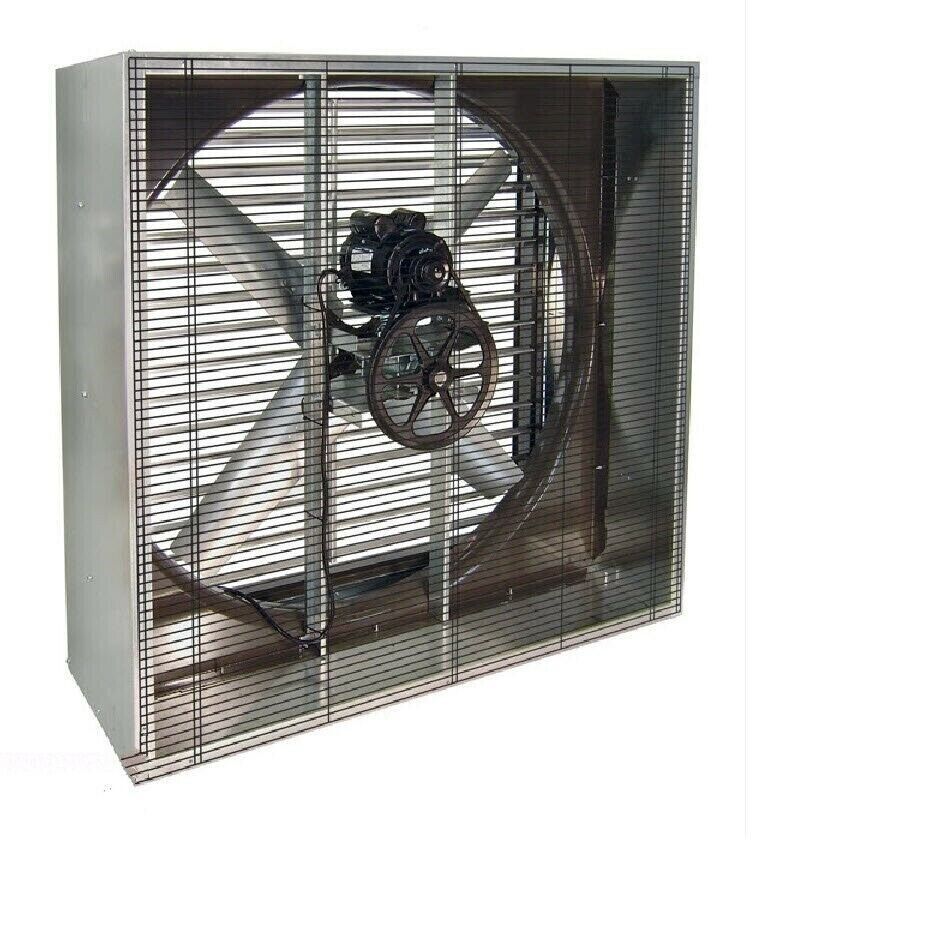

EXHAUST FAN Industrial - Combination - 48" - 5 Hp - 230V - 1 Phase - 28,800 CFM
EXHAUST FAN Industrial - Combination - 48" - 5 Hp - 230V - 1 Phase - 28,800 CFM
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTVIK4819W
Condition: New
Description: EXHAUST FAN Industrial - Combination - 48" - 5 Hp - 230V - 1 Phase - 28,800 CFM
Features: 48" Diameter - Belt Drive - 230V - 5 Hp ODP - 1 Phase - 28,800 CFM - Includes Shutters/Louvers and Wire Blade Guard on Rear - Includes 10 Ft Power Cord and Molded Plug - Automatic Belt Tensioning - Polyester Powder Coated Rolled Inlet Venturi - Heavy Duty Galvanized Housing - Made in the USA.
Description & Specification:
- Industrial Heavy Duty Exhaust Fan with Shutters/Louvers and Wire Blade Guard on Rear
- Heavy duty design provides continuous operation capability in industrial, commercial and institutional applications, manufacturing and assembly facilities, factories, warehouses, gymnasiums, greenhouses, workshops, barns and similar
- Features: All of our fans and optional equipment are tested and certified under actual operating conditions, heavy duty galvanized construction with polyester powder coated rolled inlet venturi for efficient air flow and corrosion resistance in harsh atmospheres, single phase fans in this series come with a 10 Ft power cord and molded plug
- Fan Type: Exhaust - Industrial/Commercial

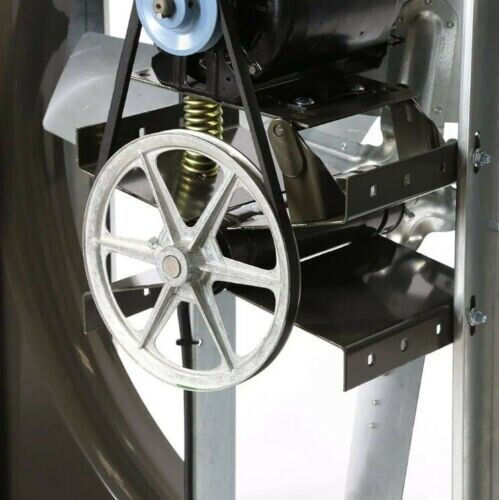

- Drive System: Belt (with automatic belt tensioning)
- Blade Diameter: 48"
- Motor: 5 Hp
- Motor Type: ODP (TEFC and HL models available)
- Voltage: 230V
- Phase: 1
- Amp Draw: 28
- Hertz: 60
- Air Flow: 28,800 CFM
- Propeller Blades: 4
- Power Cord: Included - 10 Ft Cord with Molded Plug

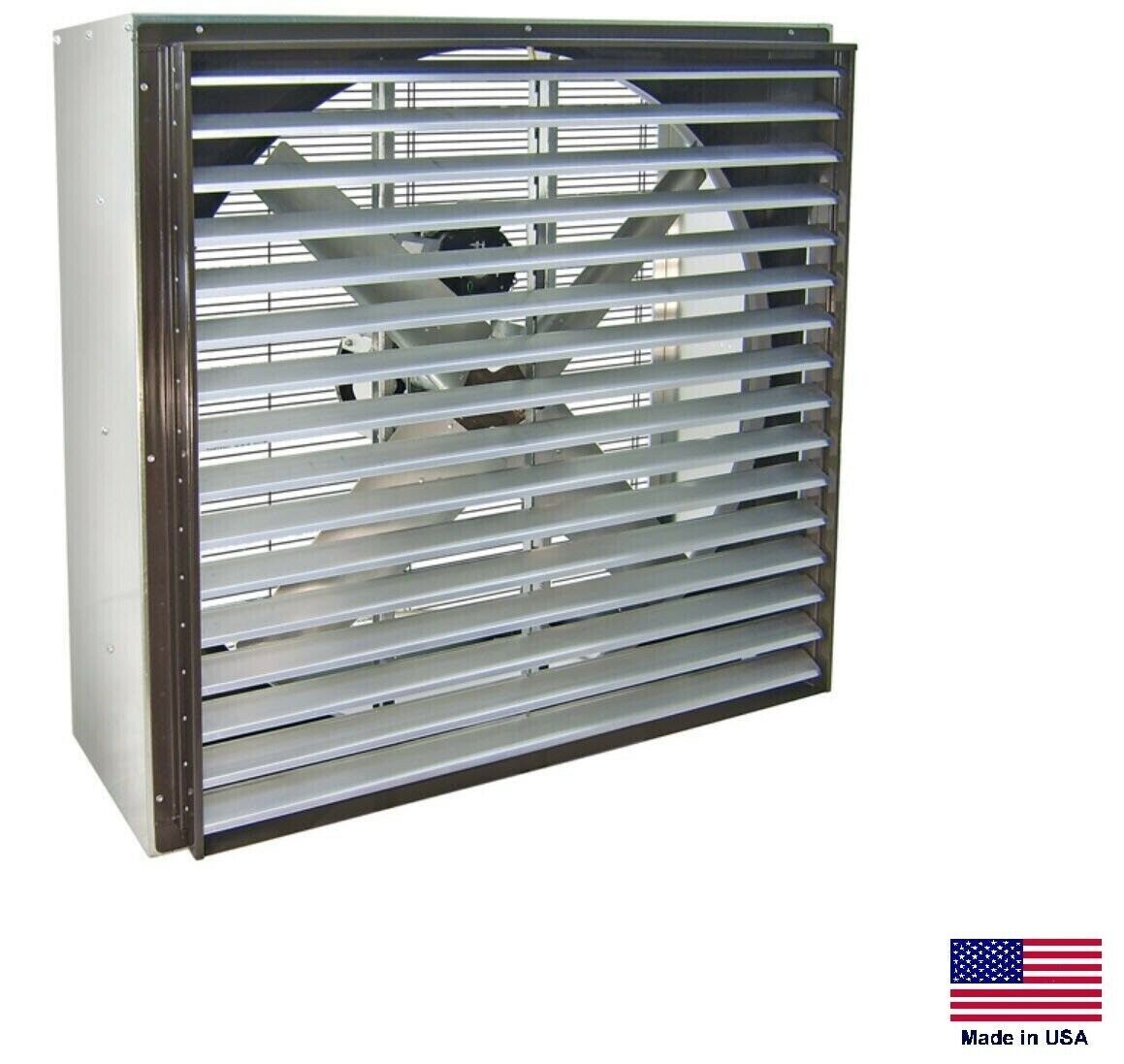

- Shutters/Louvers: Included
- Wire Blade Guard: Included - Rear Mounted Behind Motor

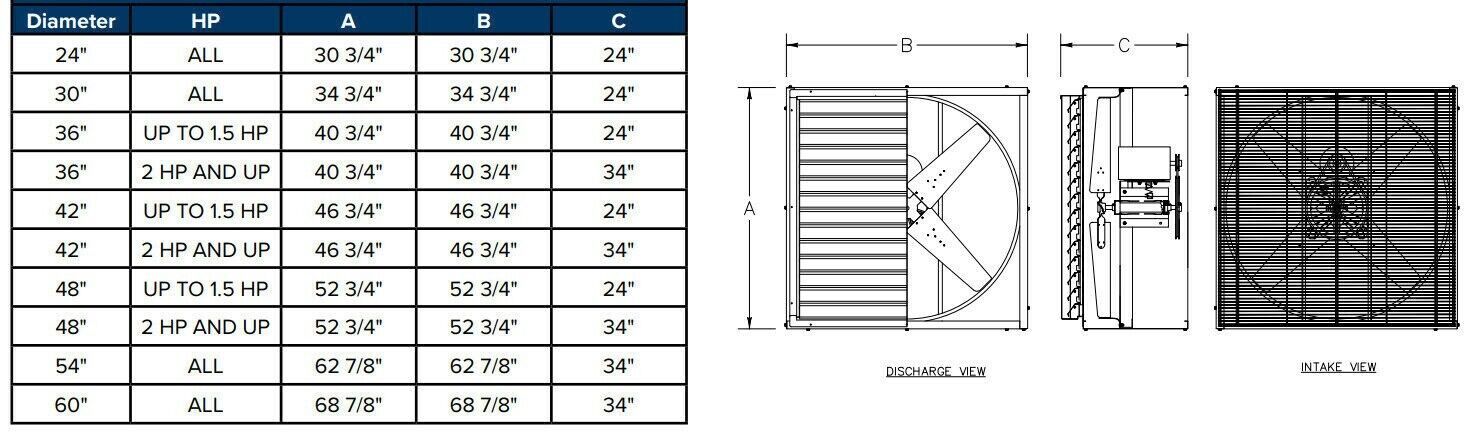

- Drawing: See Photo in this Listing

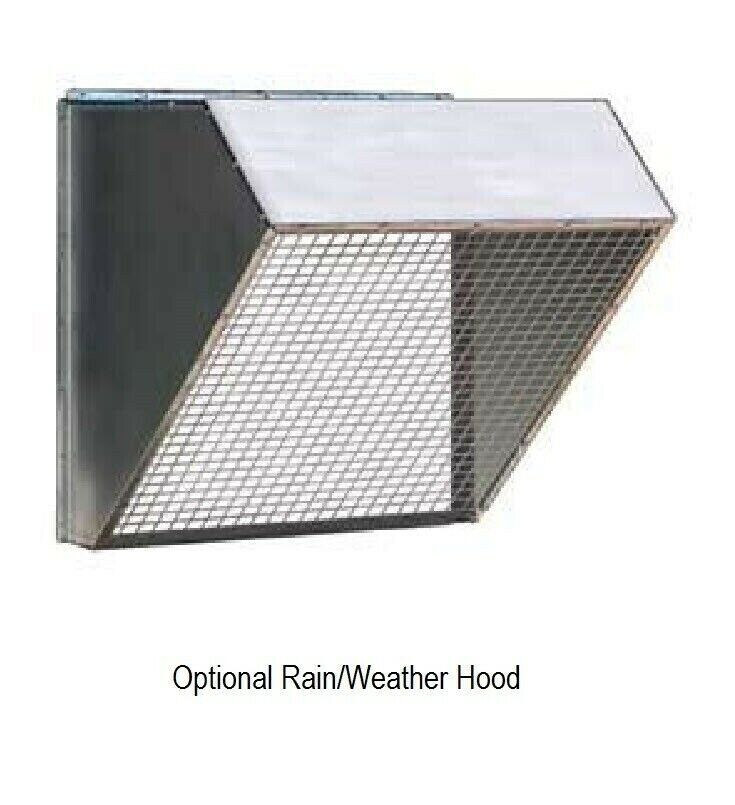

- Optional Item: Model PTRH - Rain/Weather Hood - see photo in this listing - please inquire
- Optional Item: Model PT2SPDM- 2 Speed Motor - Available on 1 Phase Motors through 1/2 Hp

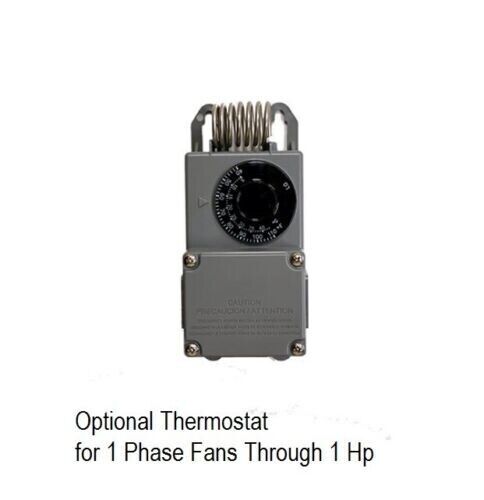

- Optional Item: Model PTTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - see photo in this listing - please inquire
- Note: Please allow 5 business days lead time - we build this fan to order. If you need this fan quicker, please inquire
- Overall Dimensions: 52.75" W x 52.75" H x 34" D
- Ship Weight: 425 Lbs
- 2 Year Warranty (Includes Parts & Labor)
- Made in the USA
