Hand Crank Steel Crane - 2,000 lbs Cap - Truck or Trailer Bed Mounted - 360 Deg
Hand Crank Steel Crane - 2,000 lbs Cap - Truck or Trailer Bed Mounted - 360 Deg
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT969
Condition: New

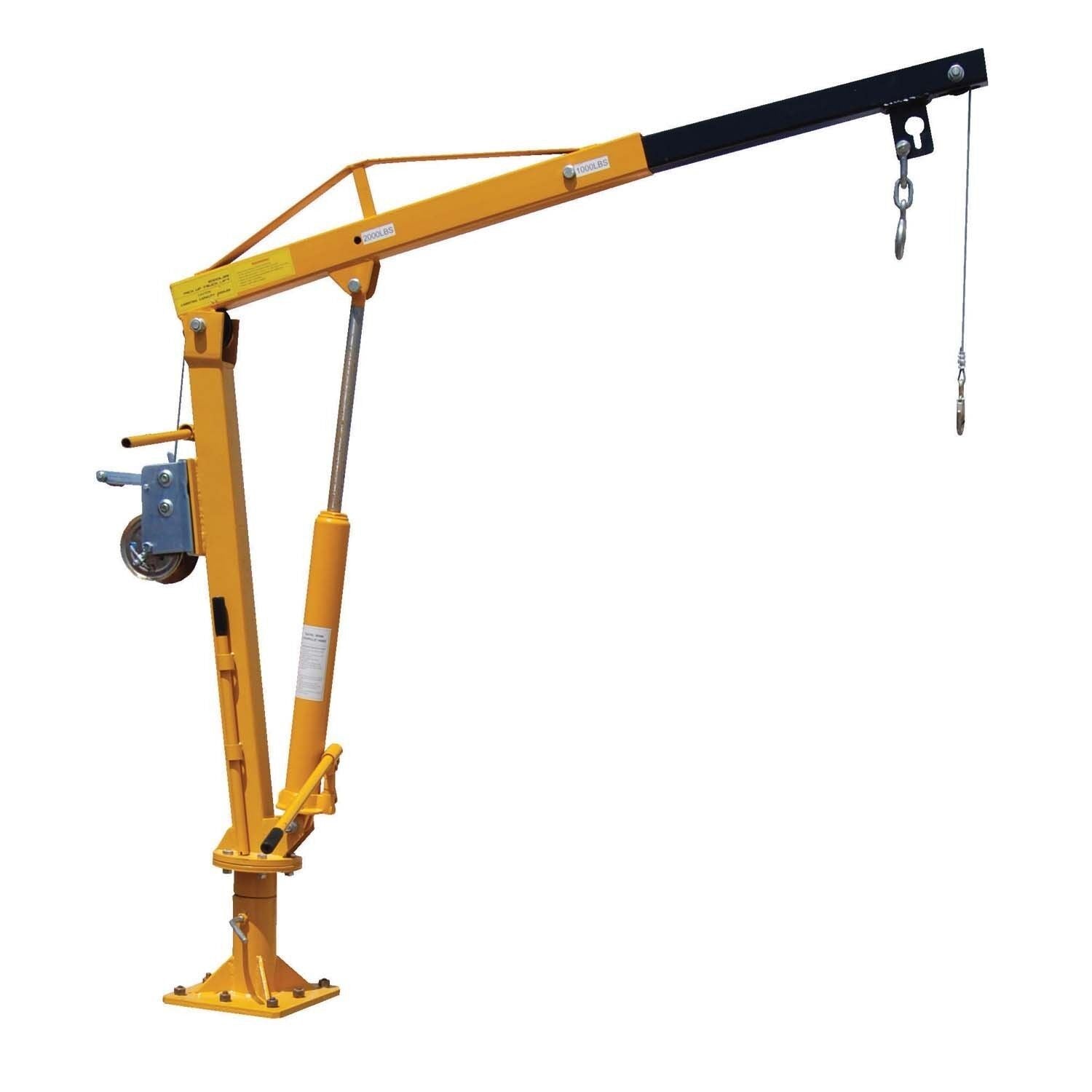

Description: Hand Crank Steel Crane - 2,000 lbs Cap - Truck or Trailer Bed Mounted - 360 Degrees

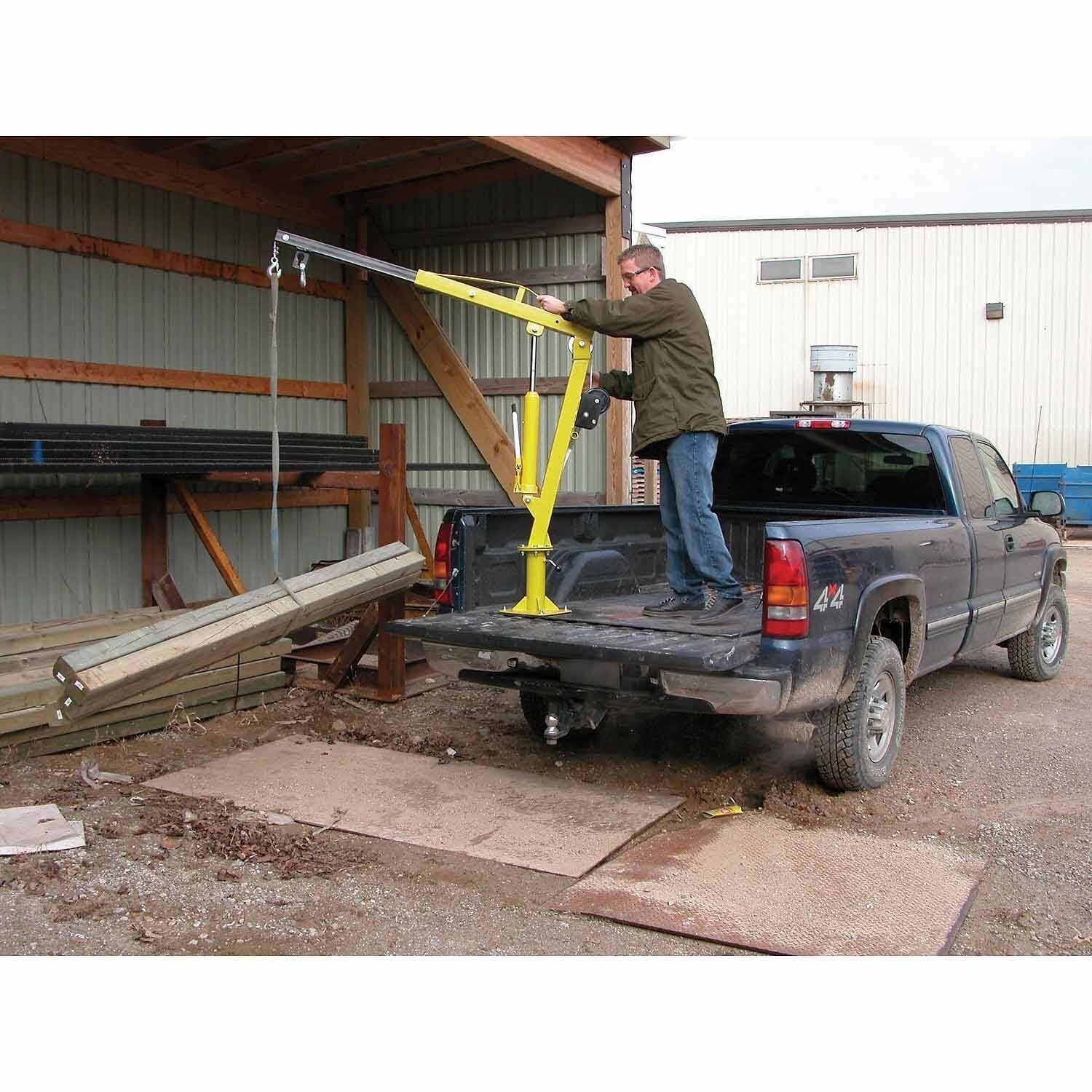

Features: 360 degree rotation - Steel construction - Chip-resistant finish - Safety latch - Hand cranked - Mounts directly to a truck or trailer bed - Pre-drilled holes for easy installation - Industrial grade hydraulic pump.
Please

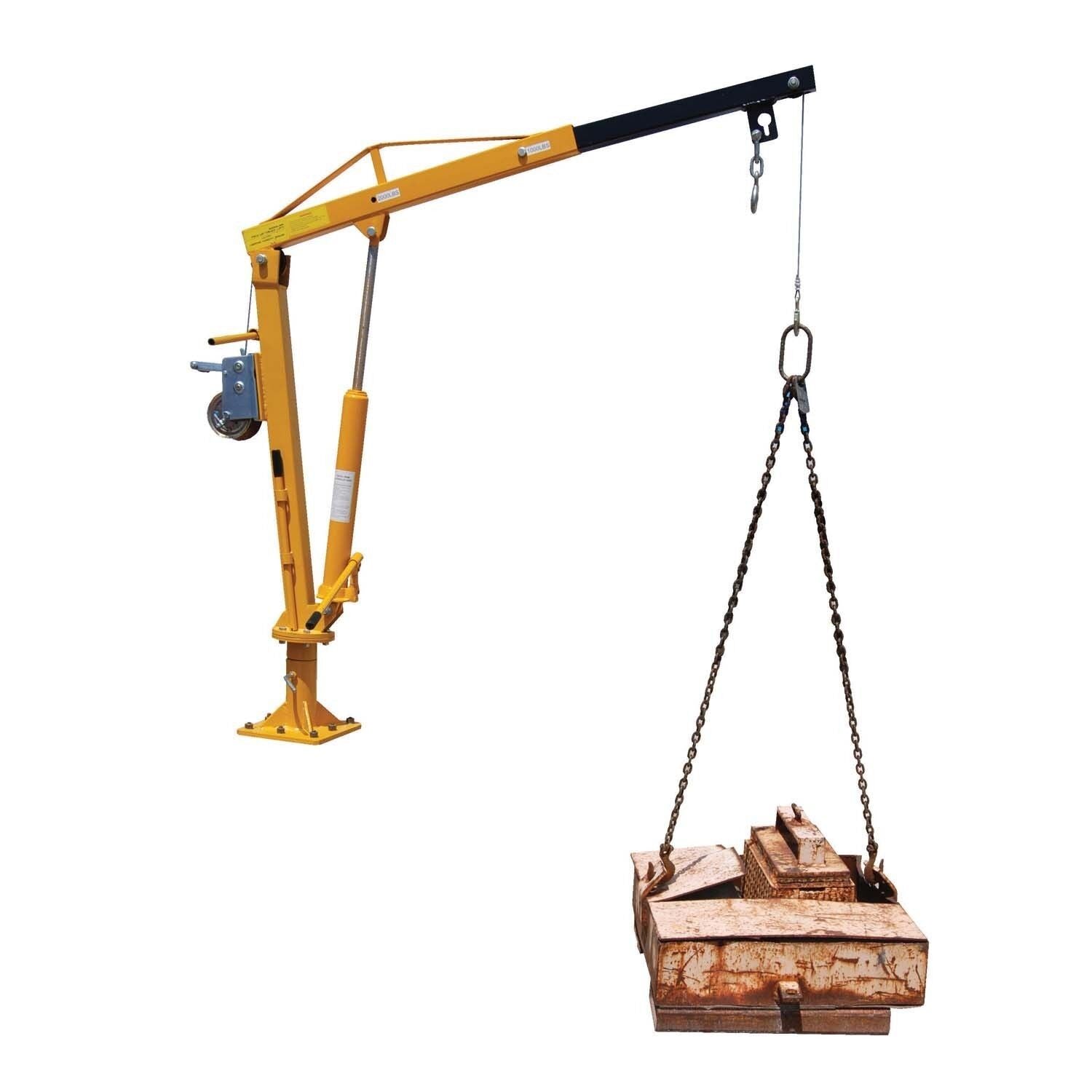

Note: Unit is designed for vertical lifting ONLY.
DO NOT use unit for lifting personnel or overhead lifting
Please Note: Extended Usable Reach = 44", Extended Maximum Hook Height = 86 1/2", Retracted Usable Reach = 30", Retracted Maximum Hook Height = 77-1/2", Retracted Minimum Hook Height = 13-1/2", Base Height = 12-1/4". Overall Cable Length = 384". Usable Cable Length 288". Cable Diameter 3/16".
Description & Specification:
HAND CRANK: Yes
CONSTRUCTION: Steel
BASE DIAMETER DIMENSIONS (in): 10.5" x 10.5"
BOOM HEIGHT (in): 0" – 77.5"
BOOM LENGTH (in): 32-3/4" - 46"
WINCH CABLE/STRAP LENGTH (ft): 14'-1/2"
EXTENDED CAPACITY (lbs): 1,000
RETRACTED CAPACITY (lbs): 2,000
SHIPPING WEIGHT (lbs): 150
