HAND WINCH with Brake - 1000 LBS CAPACITY - Stainless Steel - Weatherproof

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1042

Condition: New

Description: HAND WINCH with Brake - 1000 LBS CAPACITY - Stainless Steel - Weatherproof

Multi-mount position

Stainless steel

Rubber handle

Enclosed gearing

Weatherproof

Dual cable anchor point

Rope is NOT included

Performance Specifications:

With 1/8" Diameter Wire Rope

1st layer = 7 ft. @ 1000 lbs Capacity Load Rating

Mid drum = 74 ft. @ 750 lbs Capacity Load Rating

Full drum = 140 ft. @ 500 lbs Capacity Load Rating

With 3/16" Diameter Wire Rope

1st layer = 5 ft @ 1000 lbs Capacity Load Rating

Mid drum = 34 ft @ 750 lbs Capacity Load Rating

Full drum = 75 ft @ 500 lbs Capacity Load Rating

Please Note: Actual drum capacities may be 25-30% less due to nonuniform winding. Wire rope tension will also affect drum capacity.

Description & Specification:

Application: Hand Winch with Brake

Capacity: 1000 lbs

Construction: Stainless Steel

Gear Ratio: 4.2:1

Compatible Wire Rope Type: 1/8" or 3/16" (NOT INCLUDED)

Handle Length (in): 8.25"

Dimensions (W x D x H): 10.5" x 7.2" x 10.2"

Weight: 9 lbs

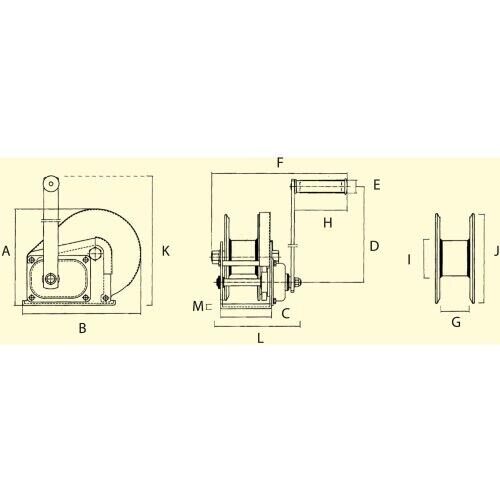

Diagram Specifications (Reference Photos):

DIMENSION A: 6.22

DIMENSION B: 7.2

DIMENSION C: 3.46

DIMENSION D: 8.26

DIMENSION E: 1.06

DIMENSION F: 10.43

DIMENSION G: 1.98

DIMENSION H: 4.29

DIMENSION I: 1.9

DIMENSION J: 5.33

DIMENSION K: 10.2

DIMENSION L: 5.98

DIMENSION M: 0.12
