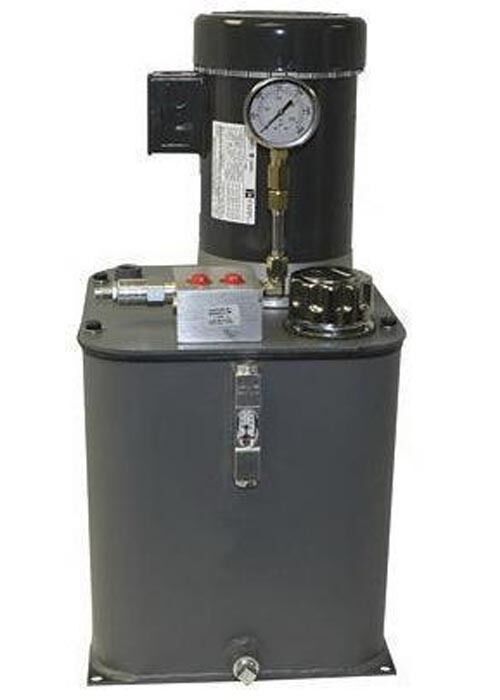

HYDRAULIC POWER SYSTEM - Self Contained - 5 Hp - 230 / 460 Volts - Commercial

HYDRAULIC POWER SYSTEM - Self Contained - 5 Hp - 230 / 460 Volts - Commercial

Regular price $4,049.06
Regular price Sale price $4,049.06
Sale Sold out

FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number:  PT220693441024

Condition: New

Description: Hydraulic Power System - Commercial

Features: 5 Hp - Two Stage - 4/16 GPM - Three Phase - 230/460V - 15 Gallon Reservoir



Description & Specifications:

•  Commercial Heavy Duty 5 Hp - Two Stage 4/16 GPM - Three Phase - 230/460V Hydraulic Power System

•  Our hydraulic power systems handle a wide variety of industrial applications.  Ideal for systems using low viscosity fluids in high temperatures and high duty cycle applications

•  Features a 3,450 RPM TEFC (totally enclosed, fan-cooled) motor, check valve, adjustable relief valve and 3,000 PSI pressure gauge

•  Efficiency: 90%

•  Heavy duty cast iron housing

•  DUÆ bearings

•  Filler screen

•  Sight gauge

•  Flexible coupling

•  Hardened and ground alloy steel gears and shafts

•  Pressure balanced pumps provide up to 90% overall efficiency

•  High/low pump provides high speed positioning and then maximum working pressure as in clamping, crimping and metal-forming machines

•  Two Stage

•  Pump GPM First Stage: 4

•  Pump GPM Second Stage: 16

•  Motor Hp: 5

•  Volts: 230/460

•  Reservoir Capacity: 15 Gallons

•  Does not include manifold or interface

•  Ship Weight: 197 Lbs

•  2 Year Manufacturer's Warranty (Includes Parts & Labor)

•  Made in the U.S.A.
