Hydraulic Power Unit - 1500 PSI - 230/460V - 10 GPM - 10HP - 30 Gallon - 3 Phase

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1124

Condition: New

Description: Hydraulic Power Unit - 1500 PSI - 230/460V - 10 GPM - 10HP - 30 Gallon - 3 Phase

Features: Commercial/Industrial Hydraulic Power Unit System

Description & Specification:

Power Source: AC

Volts: 208-230/460

Phase: 3

PSI : 1500

GPM: 10

Tank Capacity: 30 Gallons

Hz: 50/60

Amps (Full Load): 26.5 / 24 / 12

Stages: Single Stage Gear

Mounting Position: Horizontal

Circuit: Single or Double Acting

Pressure Port Size: 1-1/16"-12 (SAE 12)

Return Port Size: 1-5/16"-12 (SAE 16)

Return Filter: Yes

Relief Valve: Yes

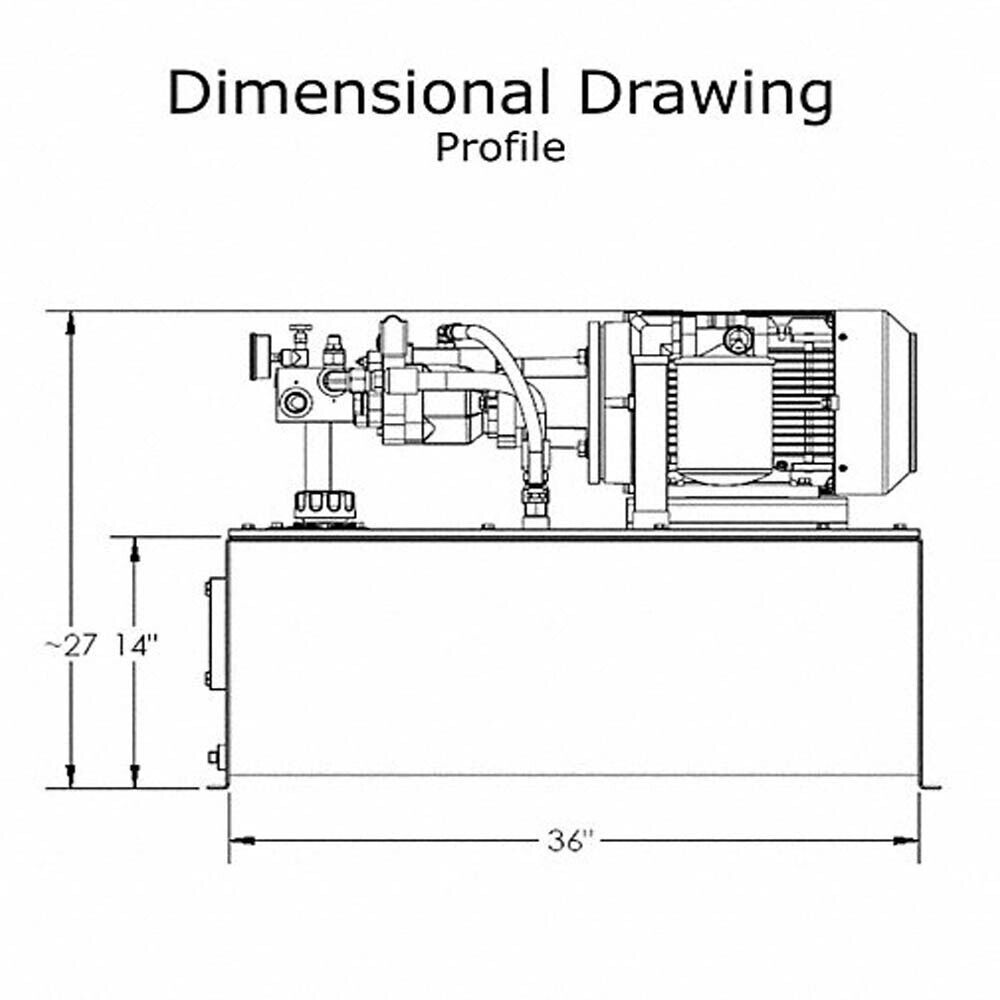

Dimensions (L x W x H): 39" x 18" x 28"

Weight (lbs): 418
