Hydraulic Power Unit - 230/460V - 2500 PSI - 1.5 GPM - 3HP - 8 Gallon - 3 Phase

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1123

Condition: New

Description: Hydraulic Power Unit - 230/460V - 2500 PSI - 1.5 GPM - 3HP - 8 Gallon - 3 Phase

Features: Commercial/Industrial Hydraulic Power Unit System

Description & Specification:

Power Source: AC

Volts: 208-230/460

Phase: 3

PSI : 2500

GPM: 1.5

Tank Capacity: 8 Gallons

Hz: 50/60

Amps (Full Load): 8.4

Stages: Single Stage Gear

Mounting Position: Vertical

Circuit: Single or Double Acting

Pressure Port Size: 3/4" - 16 (SAE8)

Return Port Size: 7/8" (SAE 10)

Return Filter: Yes

Relief Valve: Yes

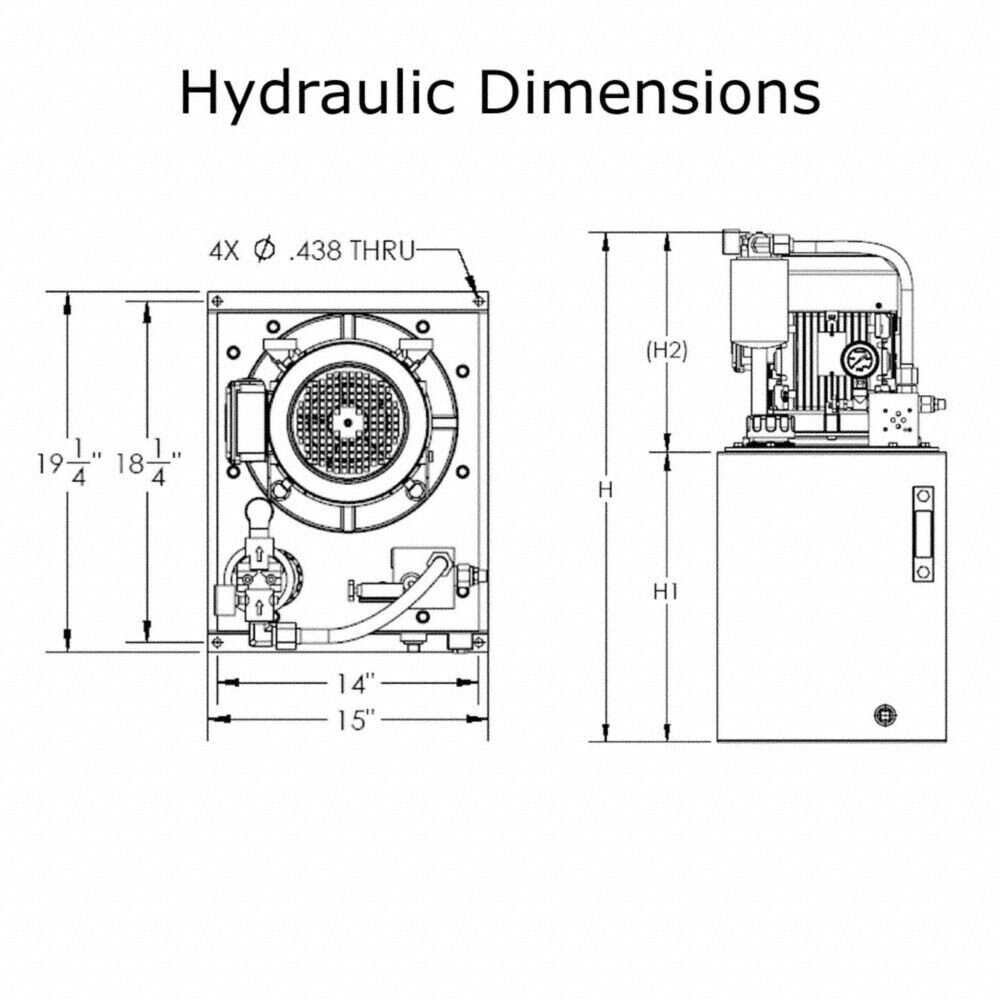

Dimensions (L x W x H): 20" x 17" x 30"

Weight (lbs): 70
