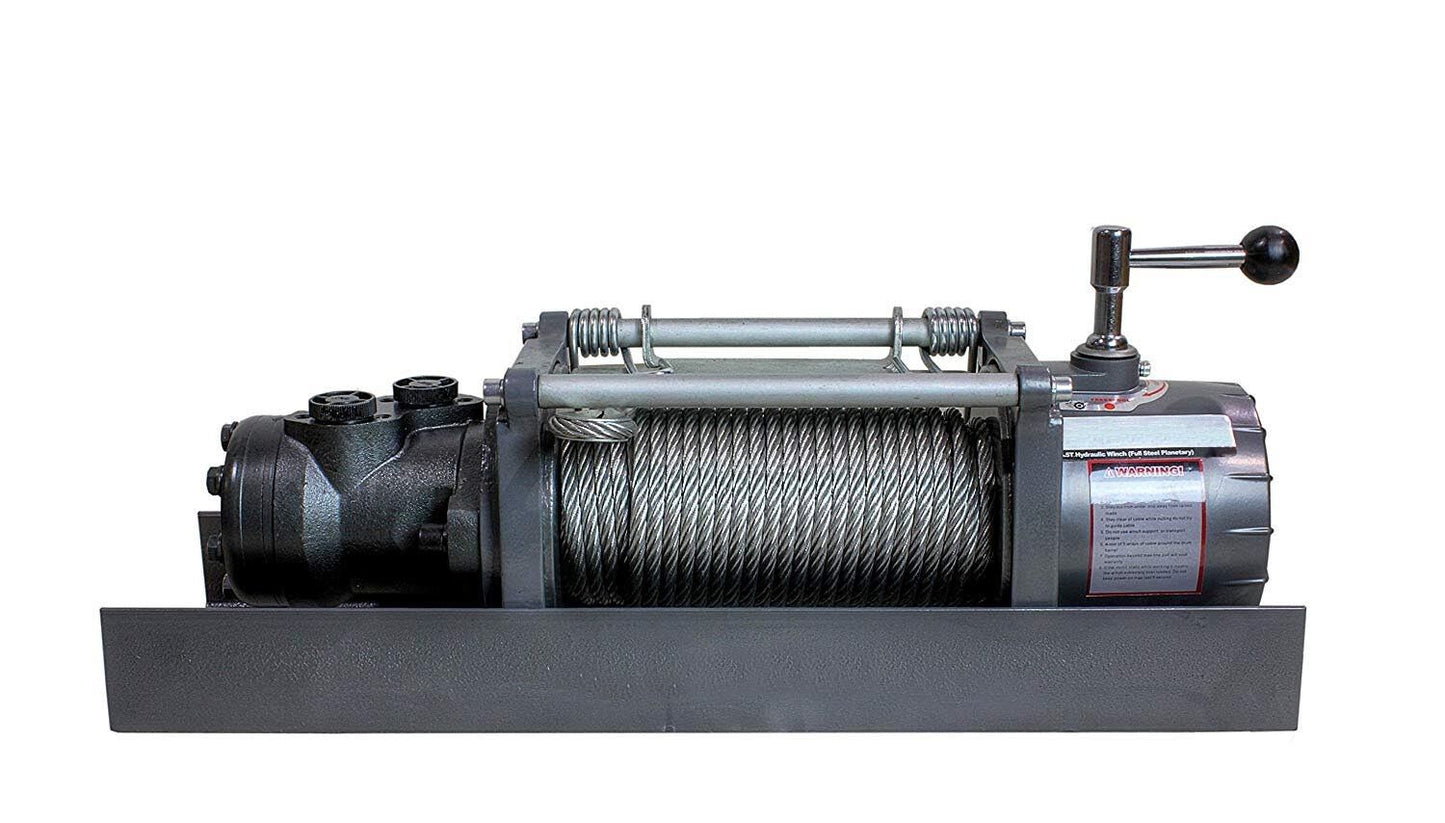

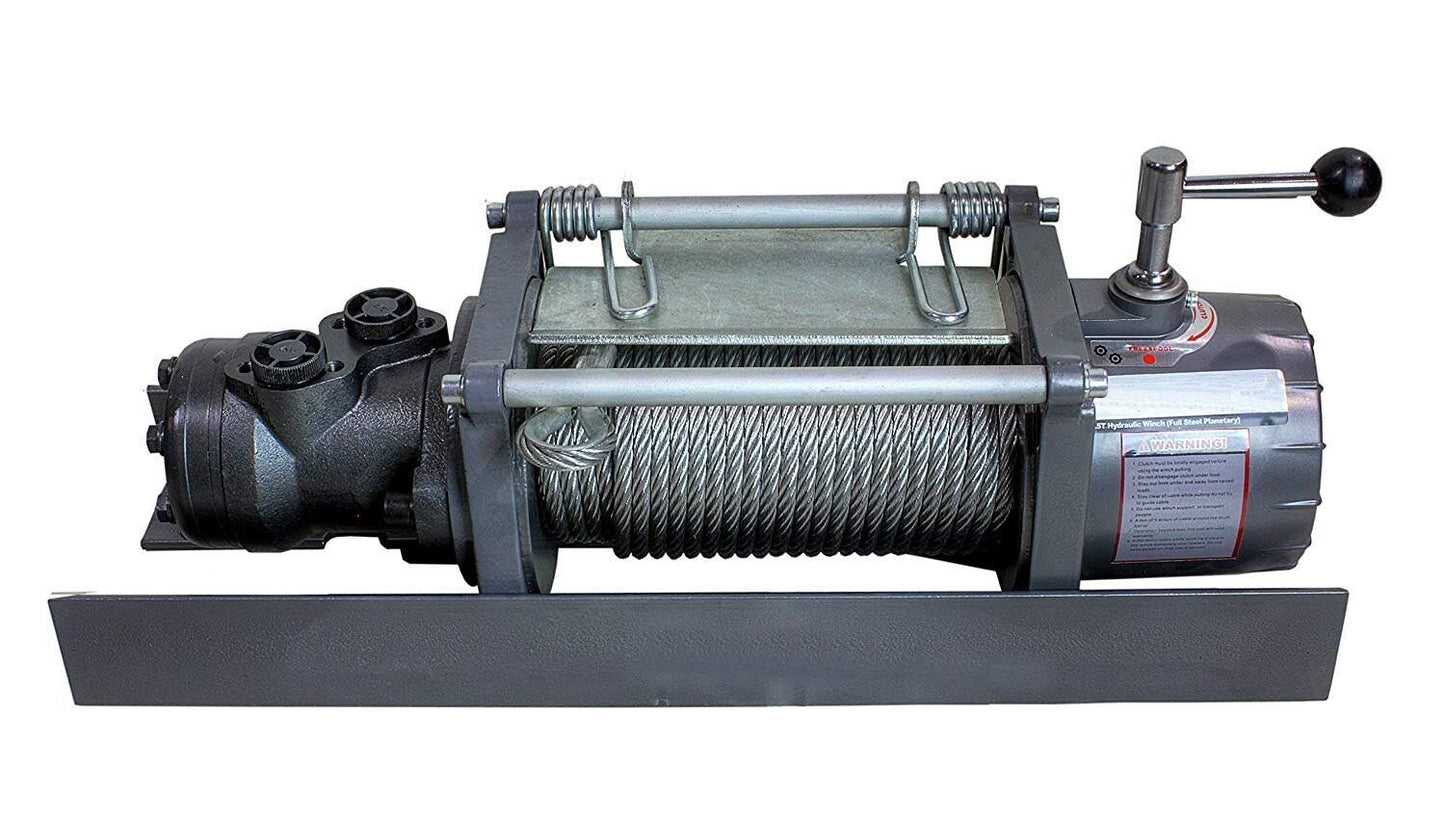

Hydraulic TOW TRUCK Winch - 10,000 lbs Capacity - 1,813 PSI - 4 to 10.6 GPM
Hydraulic TOW TRUCK Winch - 10,000 lbs Capacity - 1,813 PSI - 4 to 10.6 GPM
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT10HX
Condition: New
Description: Hydraulic TOW TRUCK Winch - 10,000 lbs Capacity - 1,813 PSI - 4 to 10.6 GPM
Features: Commercial and industrial grade - Operates flawlessly in water, ice, mud, and snow - Pulls in either direction - Free spooling clutch - 16,000 lbs pulley block - Robust mounting plate allows the winch to be installed and operated safely - Steel cable tensioner provides a consistent retraction into the drum with NO overlapping areas.
Description & Specification:
Includes: Steel Cable SWR Tensioner, 16,000 lbs Capacity Pulley Block, and Two Truck Bracket Mounting Kit
Line Pull Capacity: 10,000 lbs (Single Line Rated)
GPM: 4 to 10.6
Max PSI: 1,812
Gear Ratio: 28.1
Clutch: Free Spooling Clutch
Full Steel Three Stage Planetary Reducer: Yes
Automatic Screw Cone Braking Action: Yes
Low Oil Flow: Yes
Construction Material: Steel
Cable (Diameter x L): 3/8 (in) x 65.6 (ft)

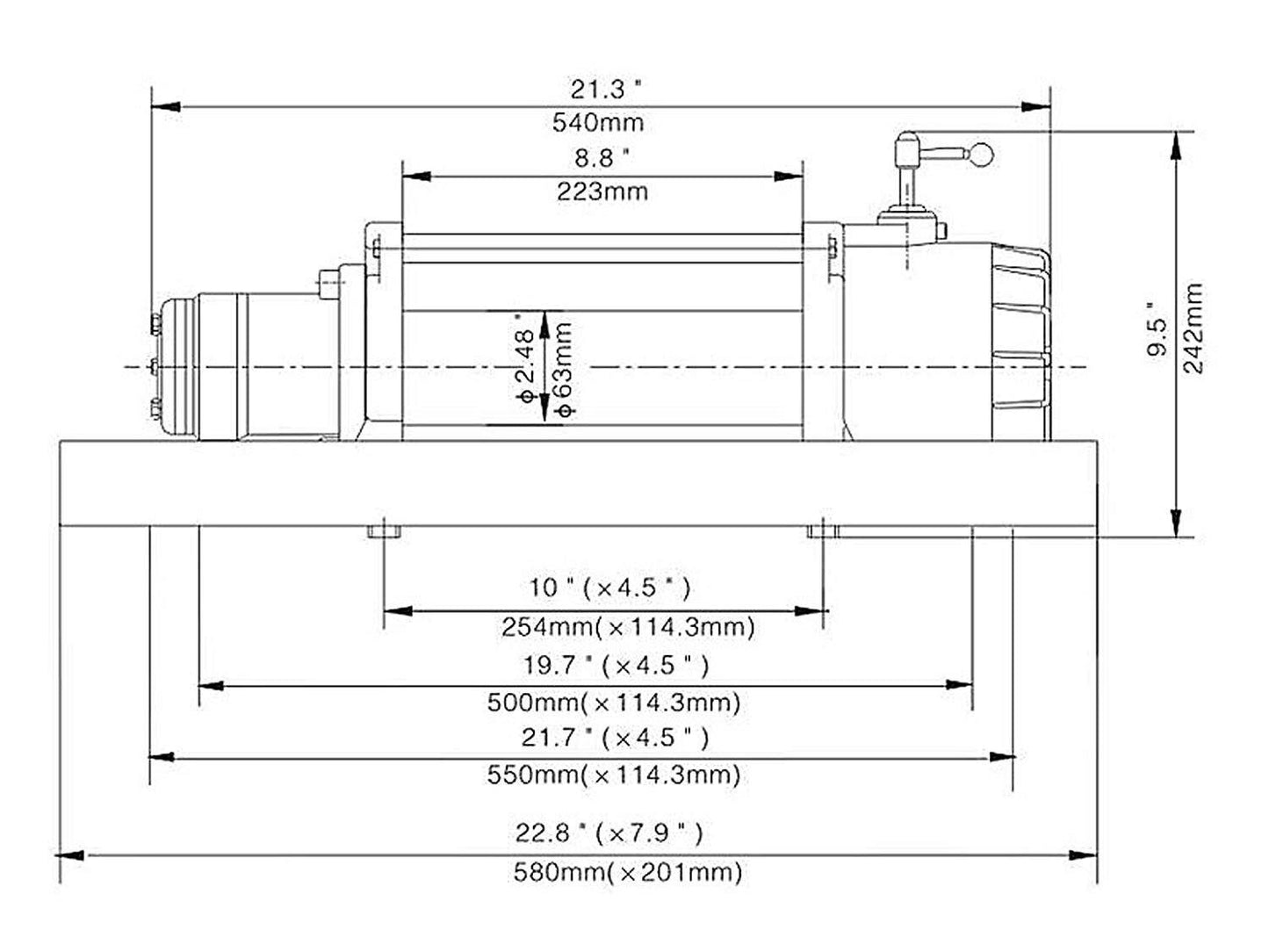

Drum Size (Diameter x L): 2.48 (in) x 8.8 (in)
Bolt Pattern (in): 21.7" x 19.7" x 4.5"
Dimensions (L x W x H): 22.8" x 7.9" x 9.5"
Weight (lbs): 96.3
|
|
Line Speed |
|
4.0 |
7.2 |
|
6.6 |
12.5 |
|
9.2 |
17.7 |
|
10.6 |
20 |
|
Line Pull (lbs) |
PSI |
|
0 |
290.1 |
|
4,000 (1,814) |
565.6 |
|
6,000 (2,722) |
1,087.7 |
|
8,000 (3,629) |
1,522.80 |
|
10,000 (4,536) |
1,812.90 |
|
Layer of Cable |
Rated Line Pull (lbs) |
Total Rope on Drum (ft) |
|
1 |
10,000 |
17.4 |
|
2 |
7,969 |
39.4 |
|
3 |
6,624 |
65 |
|
4 |
5,667 |
|
