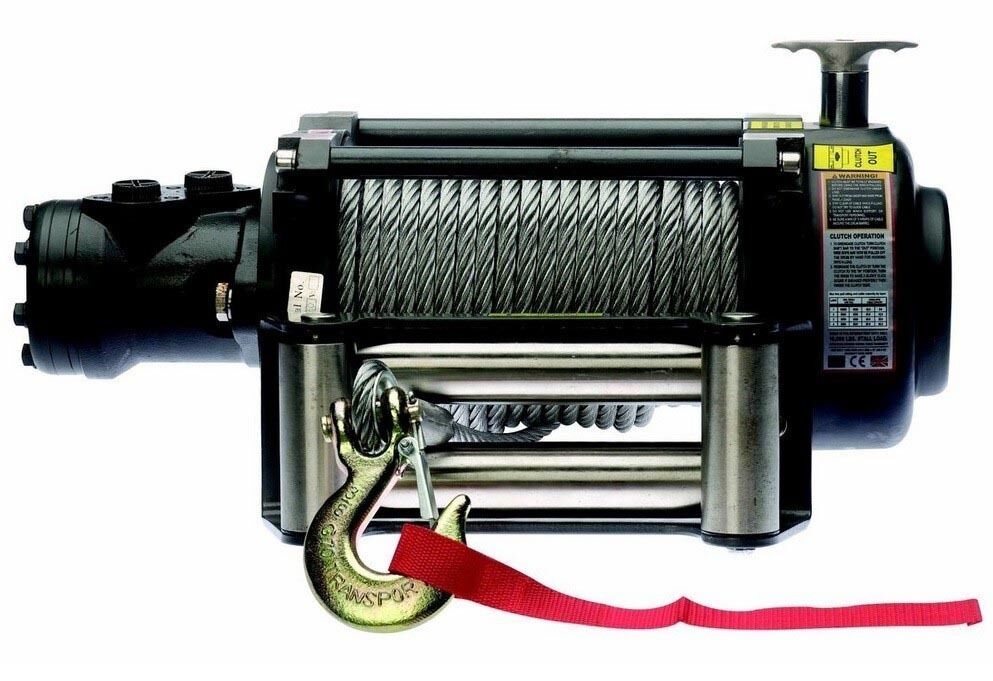

Hydraulic Winch - 12,500 or 17,000 LBS - Includes Accessories - Commercial Duty
Hydraulic Winch - 12,500 or 17,000 LBS - Includes Accessories - Commercial Duty
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT199000034 & PT199000028
Condition: New
Description: Hydraulic Winch - 12,500 or 17,000 LBS - Includes Accessories - Commercial Duty
Features: Compact and tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.
PLEASE NOTE: We offer this winch in different drum sizes, air or manual clutches, and various other line pull capacities. Please inquire toll free for assistance
Description & Specification:
17,000 Capacity Unit:
Standard Accessories:
0.5 inch x 87 ft Steel Cable
Heavy Duty Roller Fairlead
3/8 Hook
Outstanding Features:
Rugged High Torque Motor
Patented Heavy Duty Gearing
Integral, Automatic Failsafe Brake
Spring Engaged Manual Freespool
Stainless Steel fairlead & Fittings
Rugged and compact for Long Life
Specifications:
Rated Line Pull: 15,000 lbs (6804 kg)
Max Line Pull: 17,000 lbs ( 7711 kg)
Motor: Hydraulic Dis 80 mL/r
Gearing: 37:1
Drum Size (Dia x L): 3.5" x 8.8" L
Cable (Dia x L): 0.5" x 87' L
Mounting Pattern: 10" x 4.5"
Dimensions: 20.9" x 8.1" x 9.7"
Weight: 143 lbs
Power Out: 15,000 lbs
---------------------------------------
12,500 Capacity Unit:
Standard Accessories:
0.4 x 85 ft steel cable
Heavy Duty Roller Fairlead
5/16 Hook
Outstanding Features:
Patented Heavy Duty Gearing
Integral, Automatic Failsafe Brake
Spring Engaged Manual Freespool
Stainless Steel fairlead and Fittings
Rugged and compact for Long Life
Specifications:
Rated Line Pull: 10,000 lbs (4536 kg)
Max Line Pull: 12,500 lbs (5670 kg)
Motor: Hydraulic Dis 50 mL/r
Gearing: 33:1
Drum Size (Dia x L): 2.8" x 8.1" L
Cable (Dia x L): 0.4" x 85' L
Mounting Pattern: 10" x 4.5"
Dimensions: 20.1" x 7.3" x 8.8"
Weight: 121 lbs
Power Out: 12,000 lbs
